Tool Holders / S-System End Mills
AEM90-ZC1003-D32-C25-L180-Z04
AEM90-ZC series · see all 21 sizes
Insert compatibility
This size is built for the insert designation ZCMT 100308R (as listed in the catalogue data).

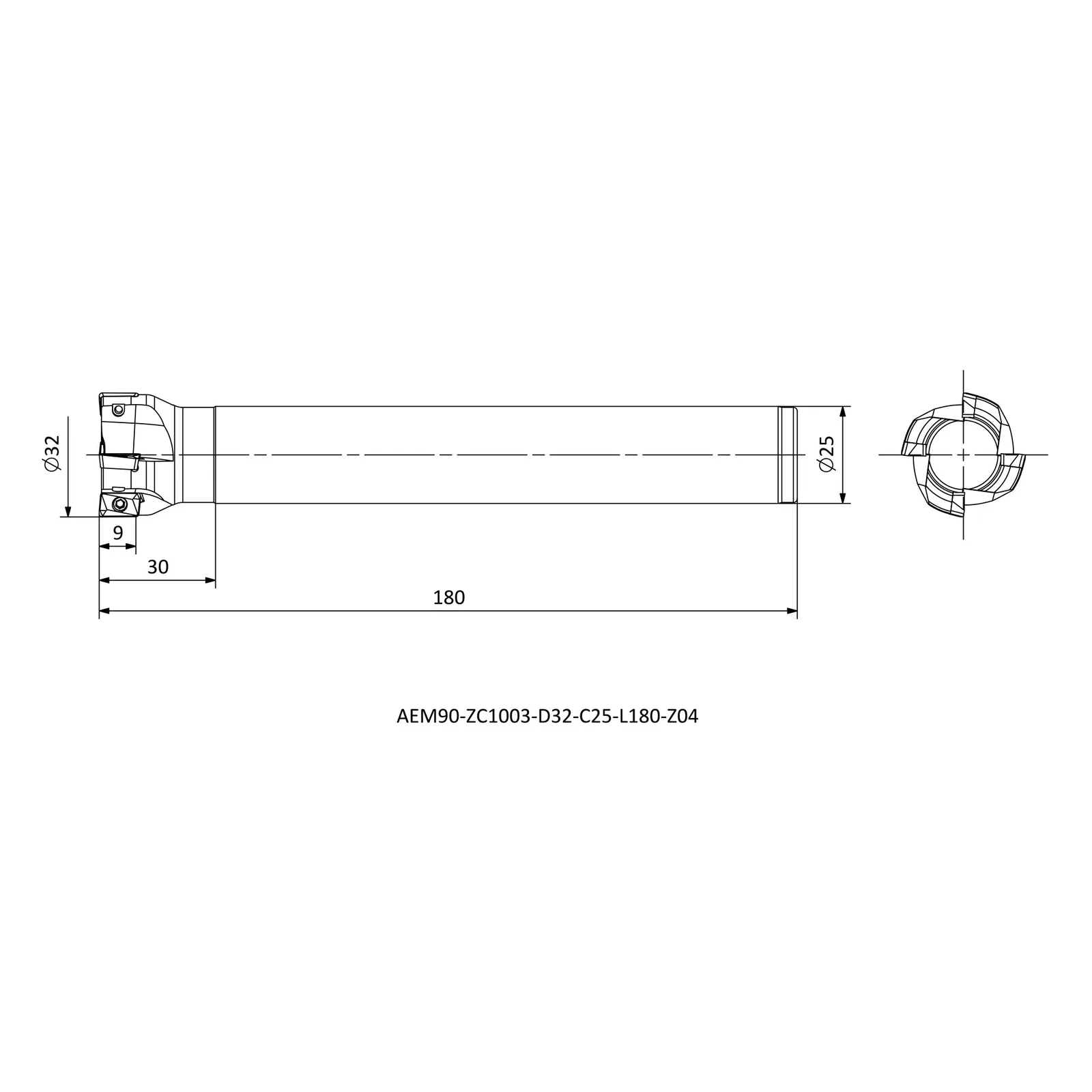

Specifications — AEM90-ZC1003-D32-C25-L180-Z04
| Insert Code | Insert designation | ZCMT 100308R |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 180 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 9 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 21 sizes in AEM90-ZC
