Tool Holders / S-System External Turning Toolholders
SCLCR 1212 F09
SCLCR/L series · see all 24 sizes
Insert compatibility
This size is built for the insert designation CC.T 09T3 (as listed in the catalogue data).

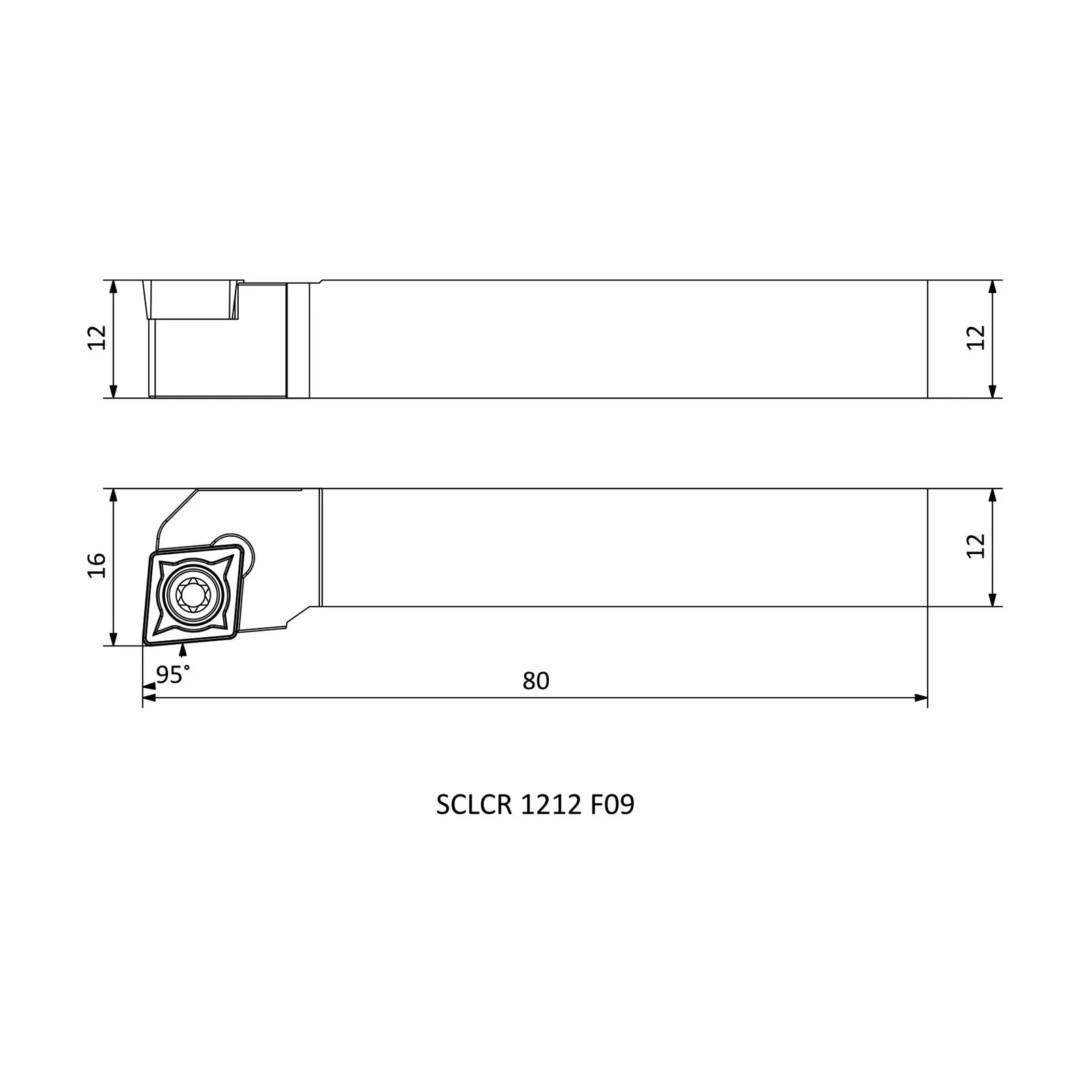

Specifications — SCLCR 1212 F09
| Insert Code | Insert designation | CC.T 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 80 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 24 sizes in SCLCR/L
