Tool Holders / S-System External Turning Toolholders
SCLCR/L
24 sizes available · 7 specification fields · standard: ISO

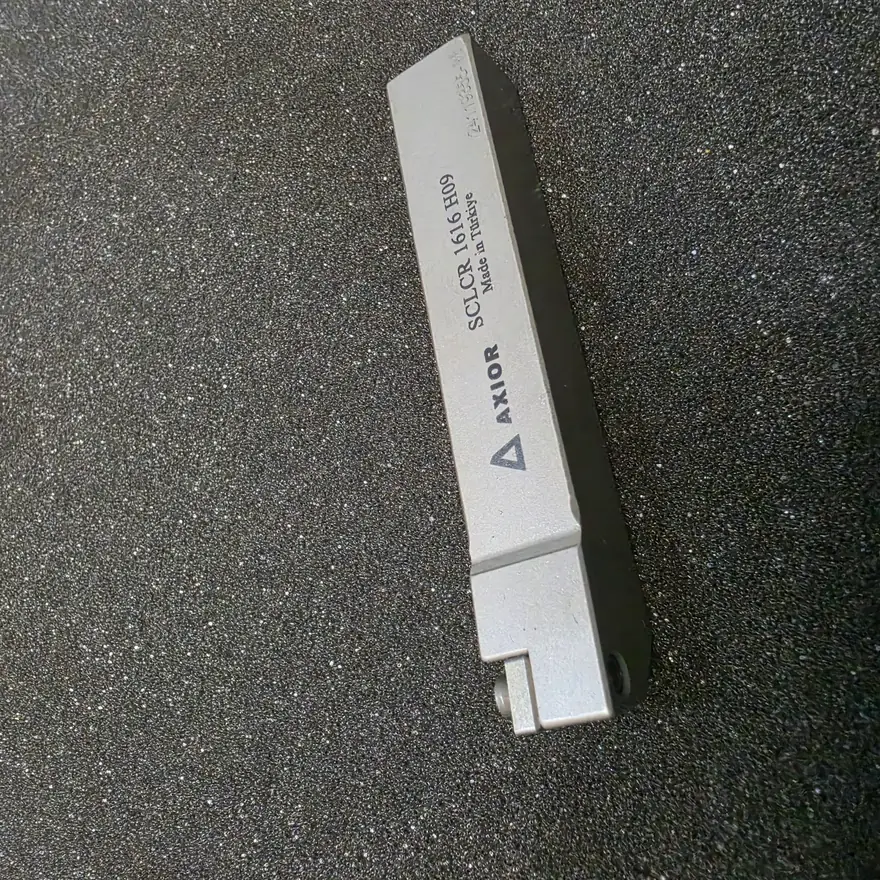

SCLCR/L is an external turning tool holder that takes positive 80° rhombic (C-type) inserts. It is listed here in 24 sizes, 8–25 × 8–25 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- CC.T 09T3..
- CC.T 0602..
- CC.T 1204..
Specifications
| Product code | Insert designation | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) | Shank width (mm) |
|---|---|---|---|---|---|---|
| SCLCL 1212 M09 | CC.T 09T3.. | L | 150 | 16 | 12 | 12 |
| SCLCR 1212 M09 | CC.T 09T3.. | R | 150 | 16 | 12 | 12 |
| SCLCL 0808 E06 | CC.T 0602.. | L | 70 | 10 | 8 | 8 |
| SCLCR 0808 E06 | CC.T 0602.. | R | 70 | 10 | 8 | 8 |
| SCLCL 1010 E06 | CC.T 0602.. | L | 70 | 12 | 10 | 10 |
| SCLCR 1010 E06 | CC.T 0602.. | R | 70 | 12 | 10 | 10 |
| SCLCL 1212 F06 | CC.T 0602.. | L | 80 | 16 | 12 | 12 |
| SCLCR 1212 F06 | CC.T 0602.. | R | 80 | 16 | 12 | 12 |
| SCLCL 1010 E09 | CC.T 09T3.. | L | 70 | 12 | 10 | 10 |
| SCLCR 1010 E09 | CC.T 09T3.. | R | 70 | 12 | 10 | 10 |
| SCLCL 1212 F09 | CC.T 09T3.. | L | 80 | 16 | 12 | 12 |
| SCLCR 1212 F09 | CC.T 09T3.. | R | 80 | 16 | 12 | 12 |
| SCLCL 1616 H09 | CC.T 09T3.. | L | 100 | 20 | 16 | 16 |
| SCLCR 1616 H09 | CC.T 09T3.. | R | 100 | 20 | 16 | 16 |
| SCLCL 2020 K09 | CC.T 09T3.. | L | 125 | 25 | 20 | 20 |
| SCLCR 2020 K09 | CC.T 09T3.. | R | 125 | 25 | 20 | 20 |
| SCLCL 2525 M09 | CC.T 09T3.. | L | 150 | 32 | 25 | 25 |
| SCLCR 2525 M09 | CC.T 09T3.. | R | 150 | 32 | 25 | 25 |
| SCLCL 1616 H12 | CC.T 1204.. | L | 100 | 20 | 16 | 16 |
| SCLCR 1616 H12 | CC.T 1204.. | R | 100 | 20 | 16 | 16 |
| SCLCL 2020 K12 | CC.T 1204.. | L | 125 | 25 | 20 | 20 |
| SCLCR 2020 K12 | CC.T 1204.. | R | 125 | 25 | 20 | 20 |
| SCLCL 2525 M12 | CC.T 1204.. | L | 150 | 32 | 25 | 25 |
| SCLCR 2525 M12 | CC.T 1204.. | R | 150 | 32 | 25 | 25 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- LF — Functional length (mm)
- WF — Functional width (mm)
- HF=H — Functional height (mm)
- B — Shank width (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
