Tool Holders / S-System External Turning Toolholders
SDHCR 2020 K11
SDHCR/L series · see all 16 sizes
Insert compatibility
This size is built for the insert designation DC.T 11T3 (as listed in the catalogue data).

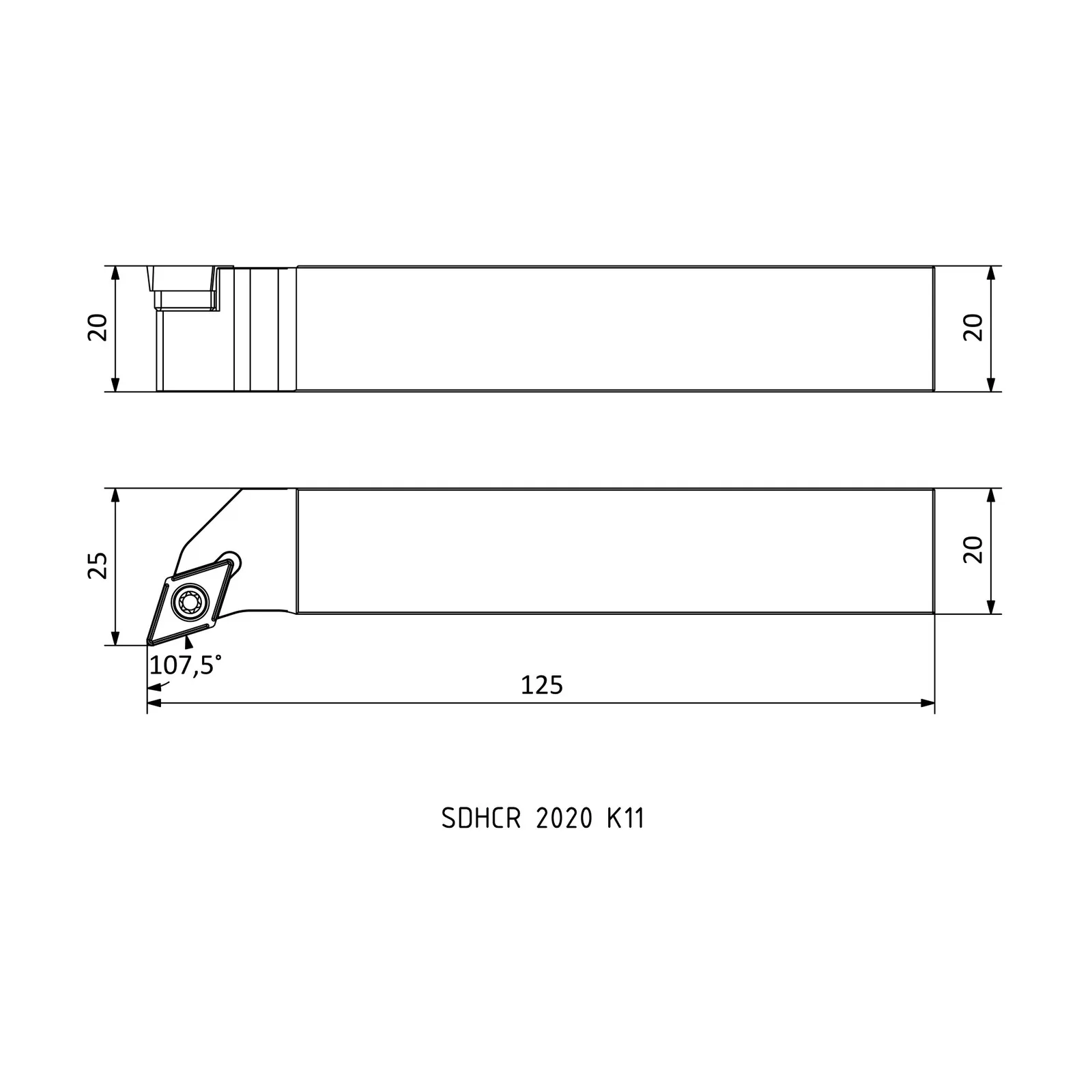

Specifications — SDHCR 2020 K11
| Insert Code | Insert designation | DC.T 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 16 sizes in SDHCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SDHCL 0808 E07 | L | 70 | 11 | 8 |
| SDHCR 0808 E07 | R | 70 | 11 | 8 |
| SDHCL 1010 E07 | L | 70 | 12 | 10 |
| SDHCR 1010 E07 | R | 70 | 12 | 10 |
| SDHCL 1212 F07 | L | 80 | 16 | 12 |
| SDHCR 1212 F07 | R | 80 | 16 | 12 |
| SDHCL 1616 H07 | L | 100 | 20 | 16 |
| SDHCR 1616 H07 | R | 100 | 20 | 16 |
| SDHCL 1616 H11 | L | 100 | 20 | 16 |
| SDHCR 1616 H11 | R | 100 | 20 | 16 |
| SDHCL 2020 K11 | L | 125 | 25 | 20 |
| SDHCR 2020 K11 | R | 125 | 25 | 20 |
| SDHCL 2525 M11 | L | 150 | 32 | 25 |
| SDHCR 2525 M11 | R | 150 | 32 | 25 |
| SDHCL 3232 P11 | L | 170 | 40 | 32 |
| SDHCR 3232 P11 | R | 170 | 40 | 32 |
