Tool Holders / S-System External Turning Toolholders

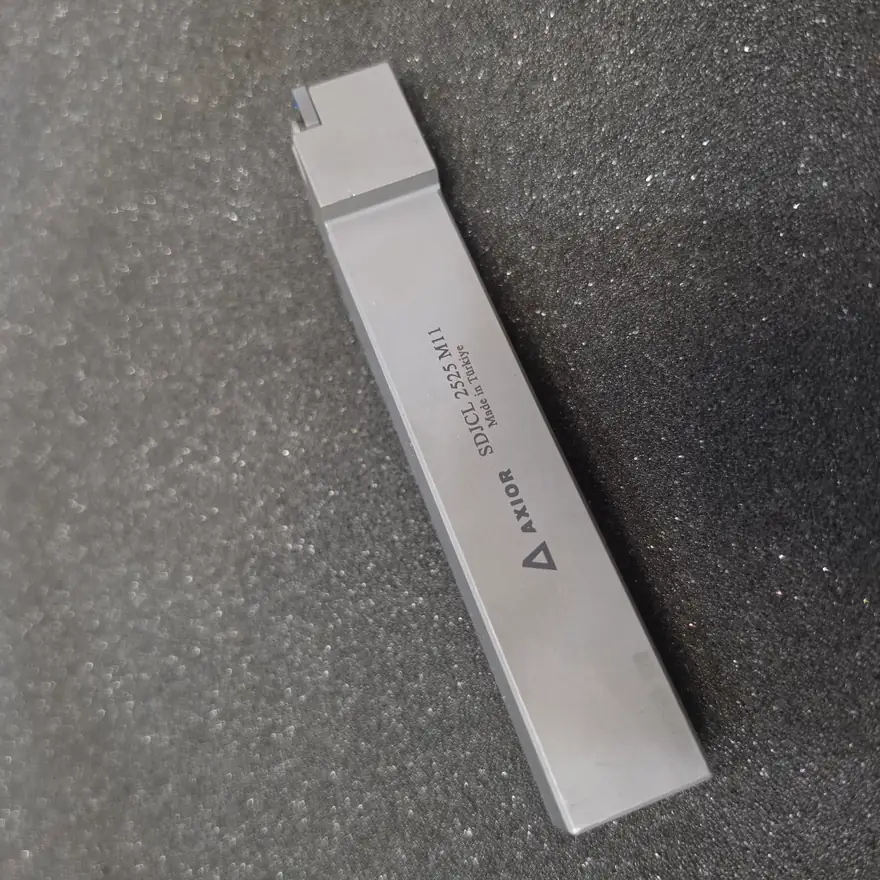

SDJCL 2525 M11
SDJCR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation DC.T 11T3 (as listed in the catalogue data).

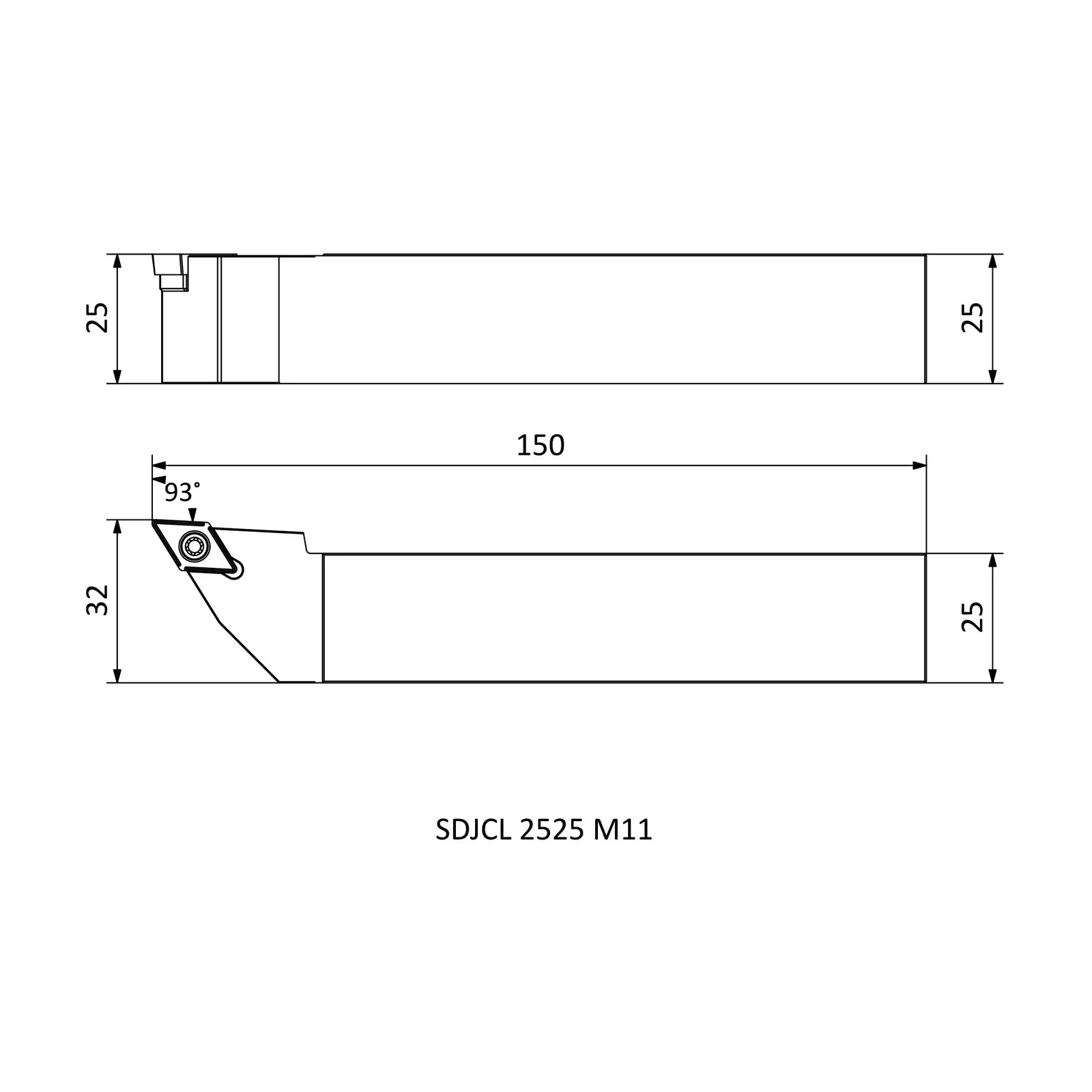

Specifications — SDJCL 2525 M11
| Insert Code | Insert designation | DC.T 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in SDJCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SDJCR 0808 E07 | R | 70 | 10 | 8 |
| SDJCL 0808 E07 | L | 70 | 10 | 8 |
