SDJCR/L

18 sizes available · 7 specification fields · standard: ISO

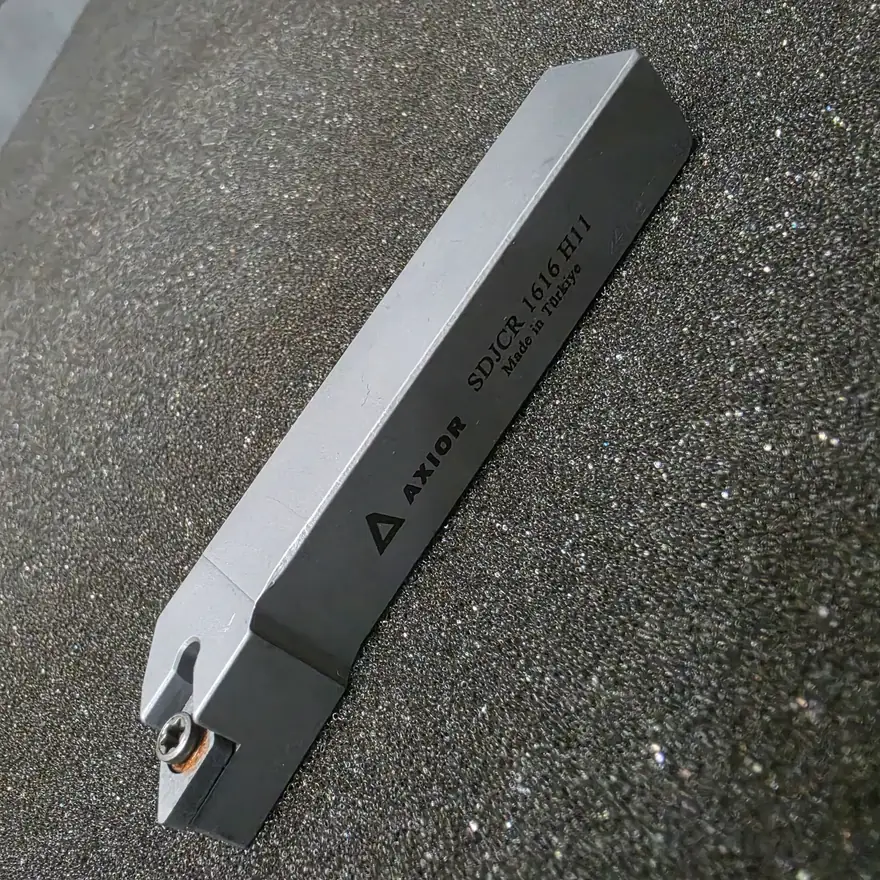

SDJCR/L is an external turning tool holder that takes positive 55° rhombic (D-type) inserts. It is listed here in 18 sizes, 8–32 × 8–32 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.

Insert compatibility

This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.

DC.T 0702..
DC.T 11T3..

Choose a size ↓ Ask about SDJCR/L

Specifications

Product code	Insert designation	Cutting direction (hand)	Functional length (mm)	Functional width (mm)	Functional height (mm)	Shank width (mm)
SDJCR 0808 E07	DC.T 0702..	R	70	10	8	8
SDJCL 0808 E07	DC.T 0702..	L	70	10	8	8
SDJCL 1010 E07	DC.T 0702..	L	70	12	10	10
SDJCR 1010 E07	DC.T 0702..	R	70	12	10	10
SDJCL 1212 F07	DC.T 0702..	L	80	16	12	12
SDJCR 1212 F07	DC.T 0702..	R	80	16	12	12
SDJCL 1616 H07	DC.T 0702..	L	100	20	16	16
SDJCR 1616 H07	DC.T 0702..	R	100	20	16	16
SDJCL 1212 F11	DC.T 11T3..	L	80	16	12	12
SDJCR 1212 F11	DC.T 11T3..	R	80	16	12	12
SDJCL 1616 H11	DC.T 11T3..	L	100	20	16	16
SDJCR 1616 H11	DC.T 11T3..	R	100	20	16	16
SDJCL 2020 K11	DC.T 11T3..	L	125	25	20	20
SDJCR 2020 K11	DC.T 11T3..	R	125	25	20	20
SDJCL 2525 M11	DC.T 11T3..	L	150	32	25	25
SDJCR 2525 M11	DC.T 11T3..	R	150	32	25	25
SDJCL 3232 P11	DC.T 11T3..	L	170	40	32	32
SDJCR 3232 P11	DC.T 11T3..	R	170	40	32	32
