Tool Holders / S-System External Turning Toolholders
SRDCN 1616 H08C
SRDCN series · see all 19 sizes
Insert compatibility
This size is built for the insert designation RC.T 0803 (as listed in the catalogue data).

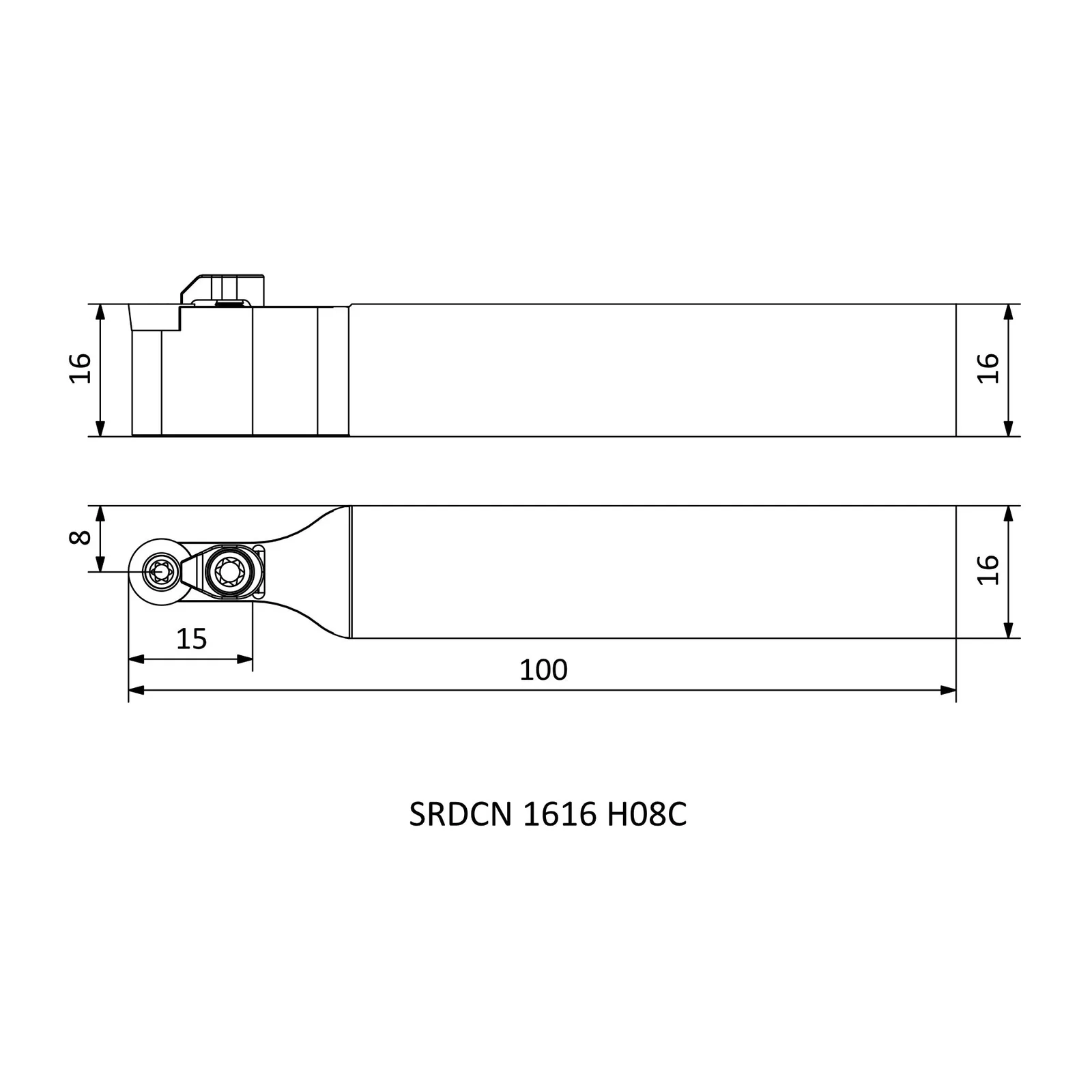

Specifications — SRDCN 1616 H08C
| Insert Code | Insert designation | RC.T 0803.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LU | Usable length (mm) | 15 |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 8 |
| HF=H | Functional height (mm) | 16 |
| B | Shank width (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 19 sizes in SRDCN
| Product code | Cutting direction (hand) | Usable length (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| SRDCN 1616 H06 | N | 15 | 100 | 8 |
| SRDCN 2020 K06 | N | 17 | 125 | 10 |
| SRDCN 2525 M06 | N | 17 | 150 | 12.5 |
| SRDCN 1616 H08C | N | 15 | 100 | 8 |
| SRDCN 2020 K08C | N | 20 | 125 | 10 |
| SRDCN 2525 M08C | N | 20 | 150 | 12.5 |
| SRDCN 1616 H10C | N | 20 | 100 | 8 |
| SRDCN 2020 K10C | N | 20 | 125 | 10 |
| SRDCN 2525 M10C | N | 20 | 150 | 12.5 |
| SRDCN 3232 P10C | N | 20 | 170 | 16 |
| SRDCN 2020 K12C | N | 22 | 125 | 10 |
| SRDCN 2525 M12C | N | 22 | 150 | 12.5 |
| SRDCN 3232 P12C | N | 22 | 170 | 16 |
| SRDCN 2525 M16C | N | 32 | 150 | 12.5 |
| SRDCN 3232 P16C | N | 35 | 170 | 16 |
| SRDCN 2525 M20C | N | 32 | 150 | 12.5 |
| SRDCN 3232 P20C | N | 40 | 170 | 16 |
| SRDCN 3232 P25C | N | 40 | 170 | 16 |
| SRDCN 3232 P32C | N | 45 | 170 | 16 |
