Tool Holders / S-System External Turning Toolholders
SRDCN
19 sizes available · 8 specification fields · standard: ISO

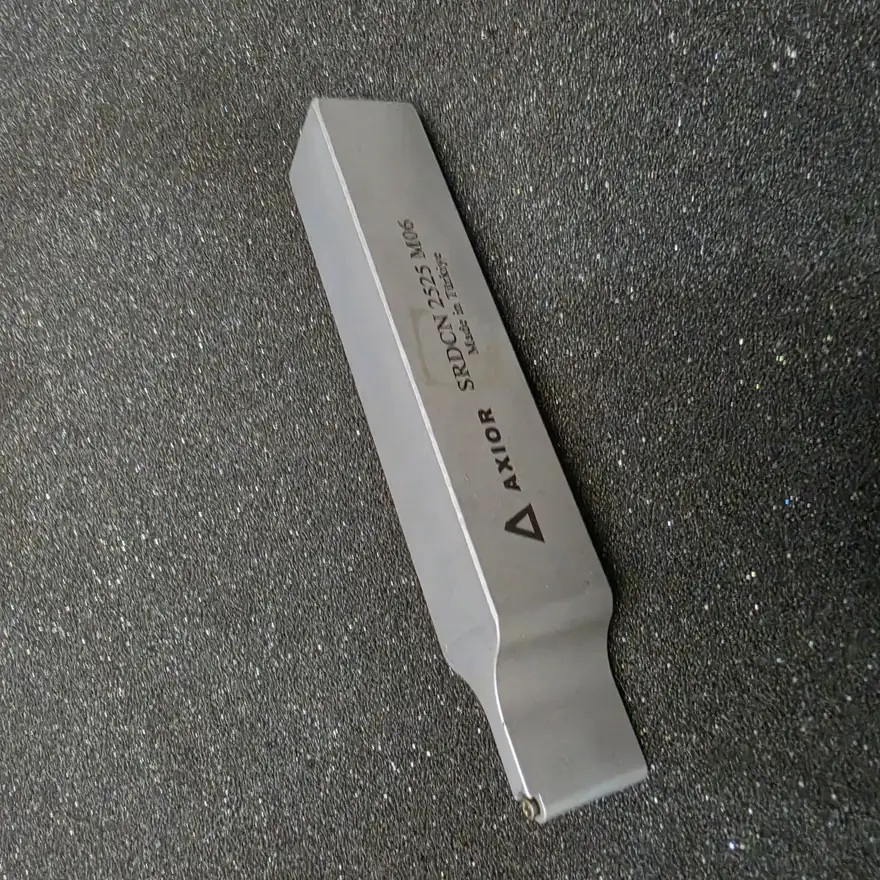

SRDCN is an external turning tool holder that takes positive round (R-type) inserts. It is listed here in 19 sizes, 16–32 × 16–32 mm shank, neutral versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- RC.T 0602..
- RC.T 0803..
- RC.T 10T3..
- RC.T 1204..
- RC.T 1605..
- RC.T 2006..
- RC.T 2507..
- RC.T 3209..
Specifications
| Product code | Insert designation | Cutting direction (hand) | Usable length (mm) | Functional length (mm) | Functional width (mm) | Functional height (mm) | Shank width (mm) |
|---|---|---|---|---|---|---|---|
| SRDCN 1616 H06 | RC.T 0602.. | N | 15 | 100 | 8 | 16 | 16 |
| SRDCN 2020 K06 | RC.T 0602.. | N | 17 | 125 | 10 | 20 | 20 |
| SRDCN 2525 M06 | RC.T 0602.. | N | 17 | 150 | 12.5 | 25 | 25 |
| SRDCN 1616 H08C | RC.T 0803.. | N | 15 | 100 | 8 | 16 | 16 |
| SRDCN 2020 K08C | RC.T 0803.. | N | 20 | 125 | 10 | 20 | 20 |
| SRDCN 2525 M08C | RC.T 0803.. | N | 20 | 150 | 12.5 | 25 | 25 |
| SRDCN 1616 H10C | RC.T 10T3.. | N | 20 | 100 | 8 | 16 | 16 |
| SRDCN 2020 K10C | RC.T 10T3.. | N | 20 | 125 | 10 | 20 | 20 |
| SRDCN 2525 M10C | RC.T 10T3.. | N | 20 | 150 | 12.5 | 25 | 25 |
| SRDCN 3232 P10C | RC.T 10T3.. | N | 20 | 170 | 16 | 32 | 32 |
| SRDCN 2020 K12C | RC.T 1204.. | N | 22 | 125 | 10 | 20 | 20 |
| SRDCN 2525 M12C | RC.T 1204.. | N | 22 | 150 | 12.5 | 25 | 25 |
| SRDCN 3232 P12C | RC.T 1204.. | N | 22 | 170 | 16 | 32 | 32 |
| SRDCN 2525 M16C | RC.T 1605.. | N | 32 | 150 | 12.5 | 25 | 25 |
| SRDCN 3232 P16C | RC.T 1605.. | N | 35 | 170 | 16 | 32 | 32 |
| SRDCN 2525 M20C | RC.T 2006.. | N | 32 | 150 | 12.5 | 25 | 25 |
| SRDCN 3232 P20C | RC.T 2006.. | N | 40 | 170 | 16 | 32 | 32 |
| SRDCN 3232 P25C | RC.T 2507.. | N | 40 | 170 | 16 | 32 | 32 |
| SRDCN 3232 P32C | RC.T 3209.. | N | 45 | 170 | 16 | 32 | 32 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- LU — Usable length (mm)
- LF — Functional length (mm)
- WF — Functional width (mm)
- HF=H — Functional height (mm)
- B — Shank width (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
