Tool Holders / S-System External Turning Toolholders
STJCR 2020 K16
STJCR/L series · see all 16 sizes
Insert compatibility
This size is built for the insert designation TC.T 16T3 (as listed in the catalogue data).

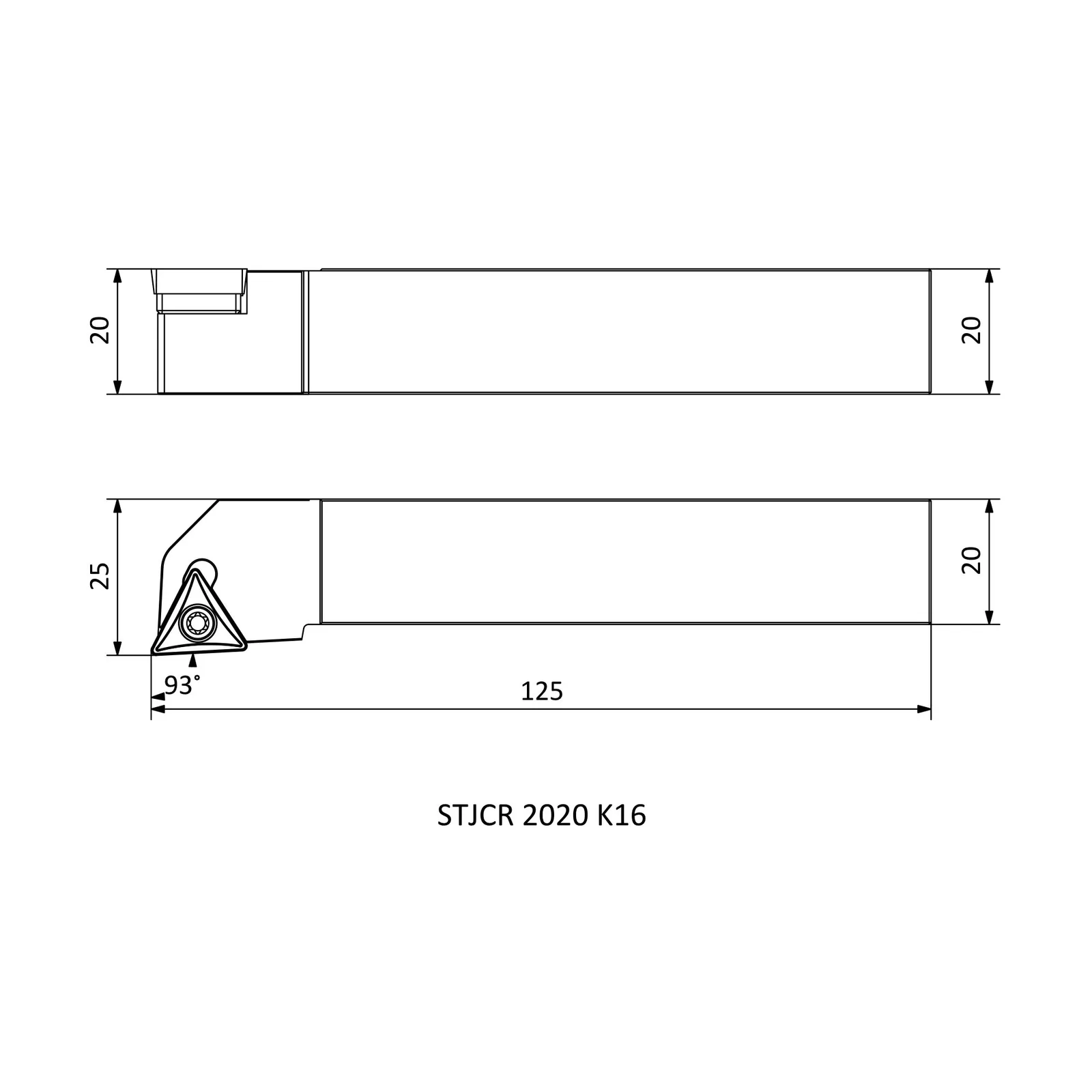

Specifications — STJCR 2020 K16
| Insert Code | Insert designation | TC.T 16T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 16 sizes in STJCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| STJCL 0808 E09 | L | 70 | 10 | 8 |
| STJCR 0808 E09 | R | 70 | 10 | 8 |
| STJCL 1010 E09 | L | 70 | 12 | 10 |
| STJCR 1010 E09 | R | 70 | 12 | 10 |
| STJCL 1212 F11 | L | 80 | 16 | 12 |
| STJCR 1212 F11 | R | 80 | 16 | 12 |
| STJCL 1616 H11 | L | 100 | 20 | 16 |
| STJCR 1616 H11 | R | 100 | 20 | 16 |
| STJCL 1616 H16 | L | 100 | 20 | 16 |
| STJCR 1616 H16 | R | 100 | 20 | 16 |
| STJCL 2020 K16 | L | 125 | 25 | 20 |
| STJCR 2020 K16 | R | 125 | 25 | 20 |
| STJCL 2525 M16 | L | 150 | 32 | 25 |
| STJCR 2525 M16 | R | 150 | 32 | 25 |
| STJCL 3232 P16 | L | 170 | 40 | 32 |
| STJCR 3232 P16 | R | 170 | 40 | 32 |
