SVJBR/L

14 sizes available · 7 specification fields · standard: ISO

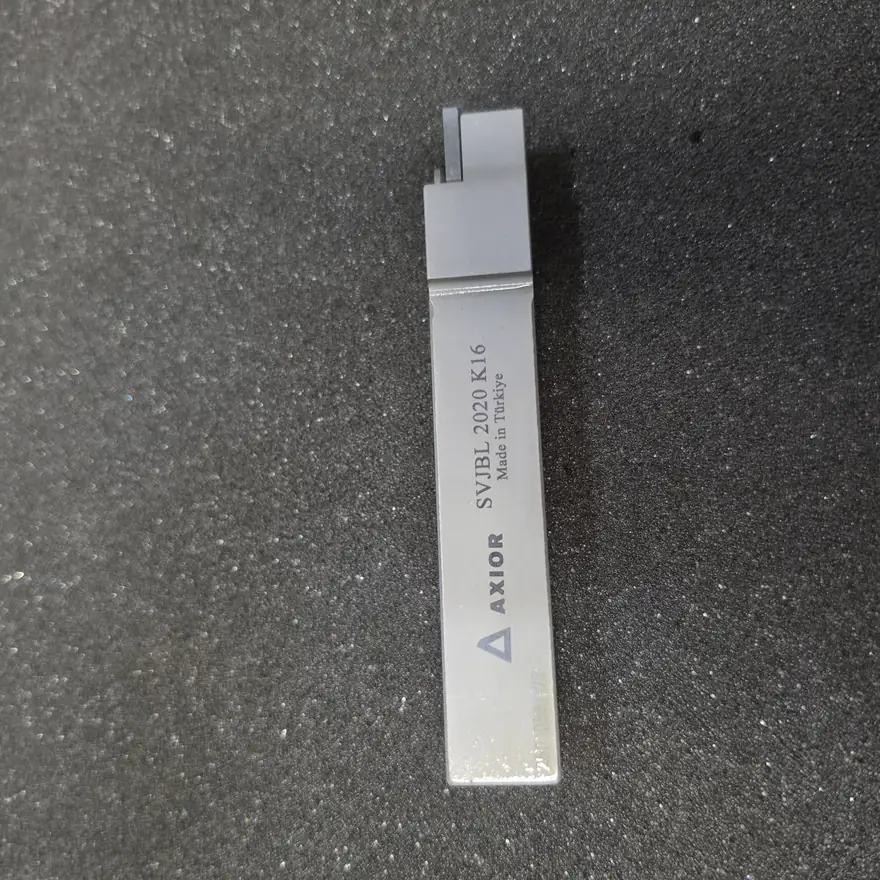

SVJBR/L is an external turning tool holder that takes 35° rhombic (V-type) inserts. It is listed here in 14 sizes, 12–32 × 12–32 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.

Insert compatibility

This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.

VB.T 1103..
VCGX 160404
VB.T 1604..

Choose a size ↓ Ask about SVJBR/L

Specifications

Product code	Insert designation	Cutting direction (hand)	Functional length (mm)	Functional width (mm)	Functional height (mm)	Shank width (mm)
SVJBL 1212 F11	VB.T 1103..	L	80	16	12	12
SVJBR 1212 F11	VB.T 1103..	R	80	16	12	12
SVJBL 1616 H11	VB.T 1103..	L	100	20	16	16
SVJBR 1616 H11	VCGX 160404	R	100	20	16	16
SVJBL 2020 K11	VB.T 1103..	L	125	25	20	20
SVJBR 2020 K11	VB.T 1103..	R	125	25	20	20
SVJBL 1616 H16	VB.T 1604..	L	100	20	16	16
SVJBR 1616 H16	VB.T 1604..	R	100	20	16	16
SVJBL 2020 K16	VB.T 1604..	L	125	25	20	20
SVJBR 2020 K16	VB.T 1604..	R	125	25	20	20
SVJBL 2525 M16	VB.T 1604..	L	150	32	25	25
SVJBR 2525 M16	VB.T 1604..	R	150	32	25	25
SVJBL 3232 P16	VB.T 1604..	L	170	40	32	32
SVJBR 3232 P16	VB.T 1604..	R	170	40	32	32
