SVJCR/L

16 sizes available · 7 specification fields · standard: ISO

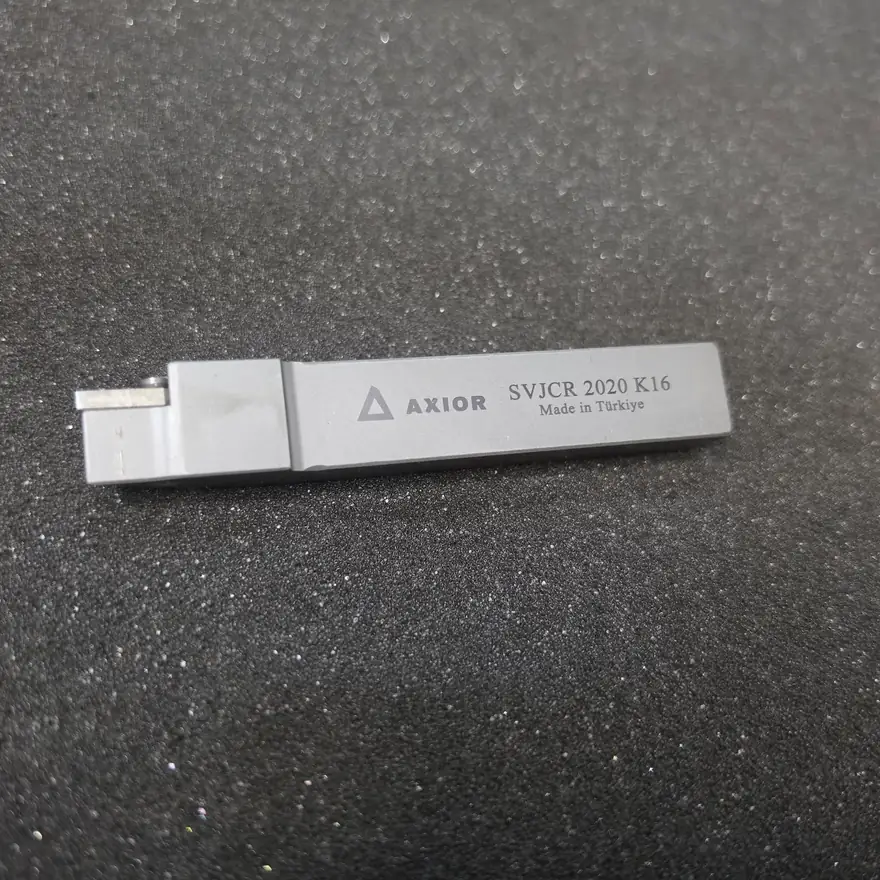

SVJCR/L is an external turning tool holder that takes positive 35° rhombic (V-type) inserts. It is listed here in 16 sizes, 12–32 × 12–32 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.

Insert compatibility

This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.

VC.T 1103..
VC.T 1604..

Choose a size ↓ Ask about SVJCR/L

Specifications

Product code	Insert designation	Cutting direction (hand)	Functional length (mm)	Functional width (mm)	Functional height (mm)	Shank width (mm)
SVJCL 1212 F11	VC.T 1103..	L	80	16	12	12
SVJCR 1212 F11	VC.T 1103..	R	80	16	12	12
SVJCL 1616 H11	VC.T 1103..	L	100	20	16	16
SVJCR 1616 H11	VC.T 1103..	R	100	20	16	16
SVJCL 2020 K11	VC.T 1103..	L	125	25	20	20
SVJCR 2020 K11	VC.T 1103..	R	125	25	20	20
SVJCL 2525 M11	VC.T 1103..	L	150	32	25	25
SVJCR 2525 M11	VC.T 1103..	R	150	32	25	25
SVJCL 1212 F16	VC.T 1604..	L	80	16	12	12
SVJCR 1212 F16	VC.T 1604..	R	80	16	12	12
SVJCL 2020 K16	VC.T 1604..	L	125	25	20	20
SVJCR 2020 K16	VC.T 1604..	R	125	25	20	20
SVJCL 2525 M16	VC.T 1604..	L	150	32	25	25
SVJCR 2525 M16	VC.T 1604..	R	150	32	25	25
SVJCL 3232 P16	VC.T 1604..	L	170	40	32	32
SVJCR 3232 P16	VC.T 1604..	R	170	40	32	32
