Tool Holders / S-System External Turning Toolholders
SVVBN
6 sizes available · 7 specification fields · standard: ISO

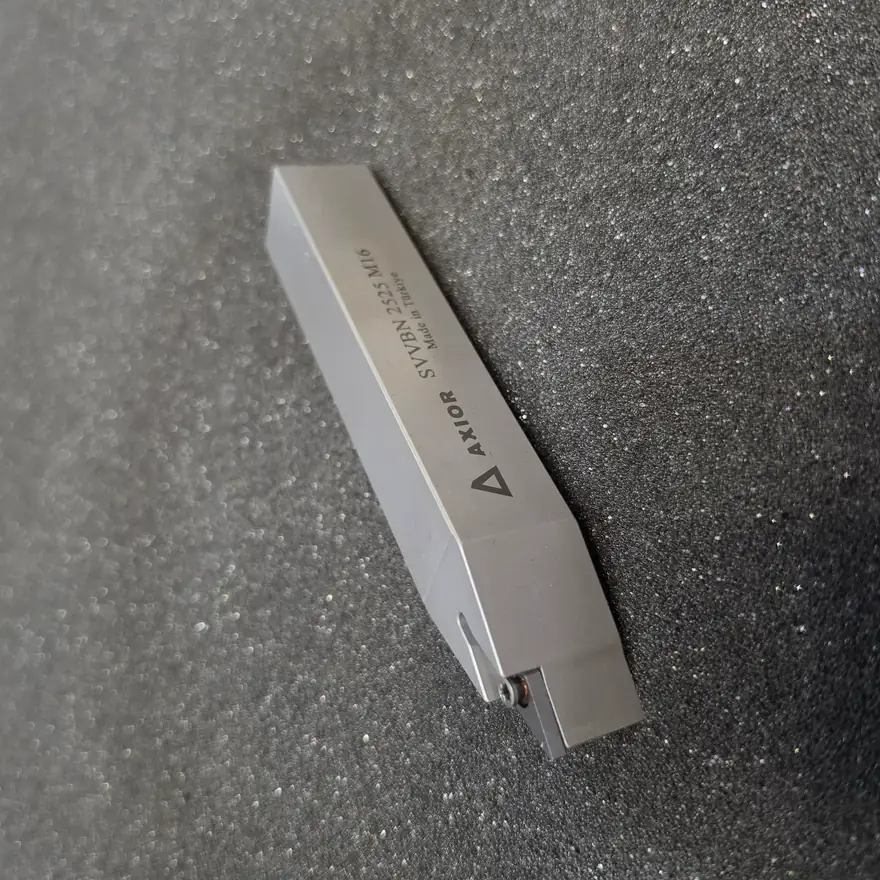

SVVBN is an external turning tool holder that takes 35° rhombic (V-type) inserts. It is listed here in 6 sizes, 12–32 × 12–32 mm shank, neutral versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- VB.T 1103..
- VB.T 1604..
Specifications
| Product code | Insert designation | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) | Shank width (mm) |
|---|---|---|---|---|---|---|
| SVVBN 1212 F11 | VB.T 1103.. | N | 80 | 6 | 12 | 12 |
| SVVBN 1616 H11 | VB.T 1103.. | N | 100 | 8 | 16 | 16 |
| SVVBN 2020 K11 | VB.T 1103.. | N | 125 | 10 | 20 | 20 |
| SVVBN 2020 K16 | VB.T 1604.. | N | 125 | 10 | 20 | 20 |
| SVVBN 2525 M16 | VB.T 1604.. | N | 150 | 12.5 | 25 | 25 |
| SVVBN 3232 P16 | VB.T 1604.. | N | 170 | 16 | 32 | 32 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- LF — Functional length (mm)
- WF — Functional width (mm)
- HF=H — Functional height (mm)
- B — Shank width (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
