Tool Holders / S-System Face And Copy End Mills
AEMR-QP10T3-D25-C25-L150-Z02-H
AEMR-QP series · see all 7 sizes
Insert compatibility
This size is built for the insert designation QP.. 10T3 (as listed in the catalogue data).

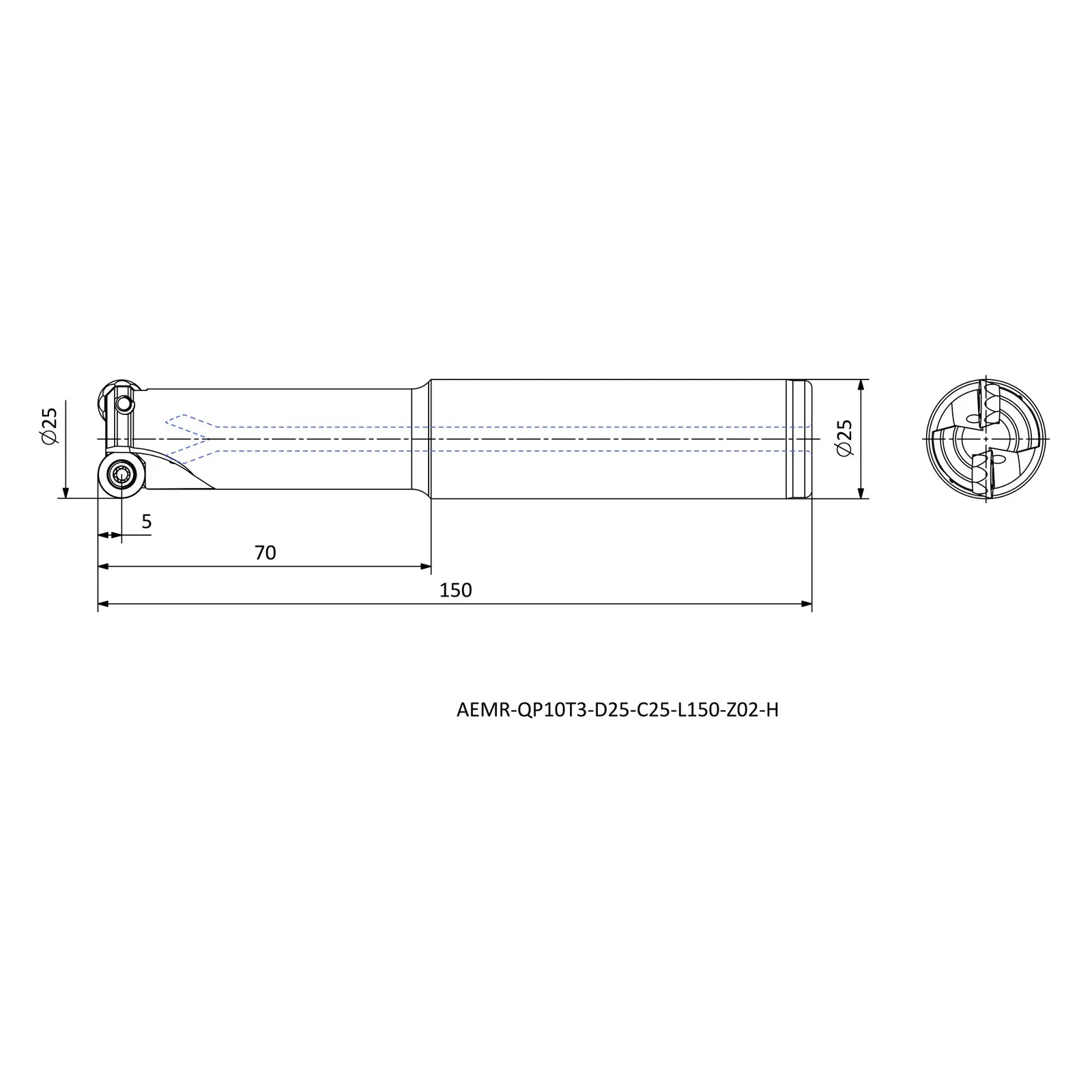

Specifications — AEMR-QP10T3-D25-C25-L150-Z02-H
| Insert Code | Insert designation | QP.. 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 70 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 7 sizes in AEMR-QP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AEMR-QP10T3-D20-C20-L150-Z01-H | R | 20 | 150 | 20 |
| AEMR-QP10T3-D25-C25-L120-Z02-H | R | 25 | 120 | 25 |
| AEMR-QP10T3-D25-C25-L150-Z02-H | R | 25 | 150 | 25 |
| AEMR-QP10T3-D25-C25-L170-Z02 | R | 25 | 170 | 25 |
| AEMR-QP10T3-D32-C32-L150-Z03-H | R | 32 | 150 | 32 |
| AEMR-QP10T3-D32-C32-L170-Z03 | R | 32 | 170 | 32 |
| AEMR-QP1204-D25-C25-L150-Z02-H | R | 25 | 150 | 25 |
