Tool Holders / S-System Face And Copy End Mills
AEMR-QP1204-D25-C25-L150-Z02-H
AEMR-QP series · see all 7 sizes
Insert compatibility
This size is built for the insert designation QP.. 1204 (as listed in the catalogue data).

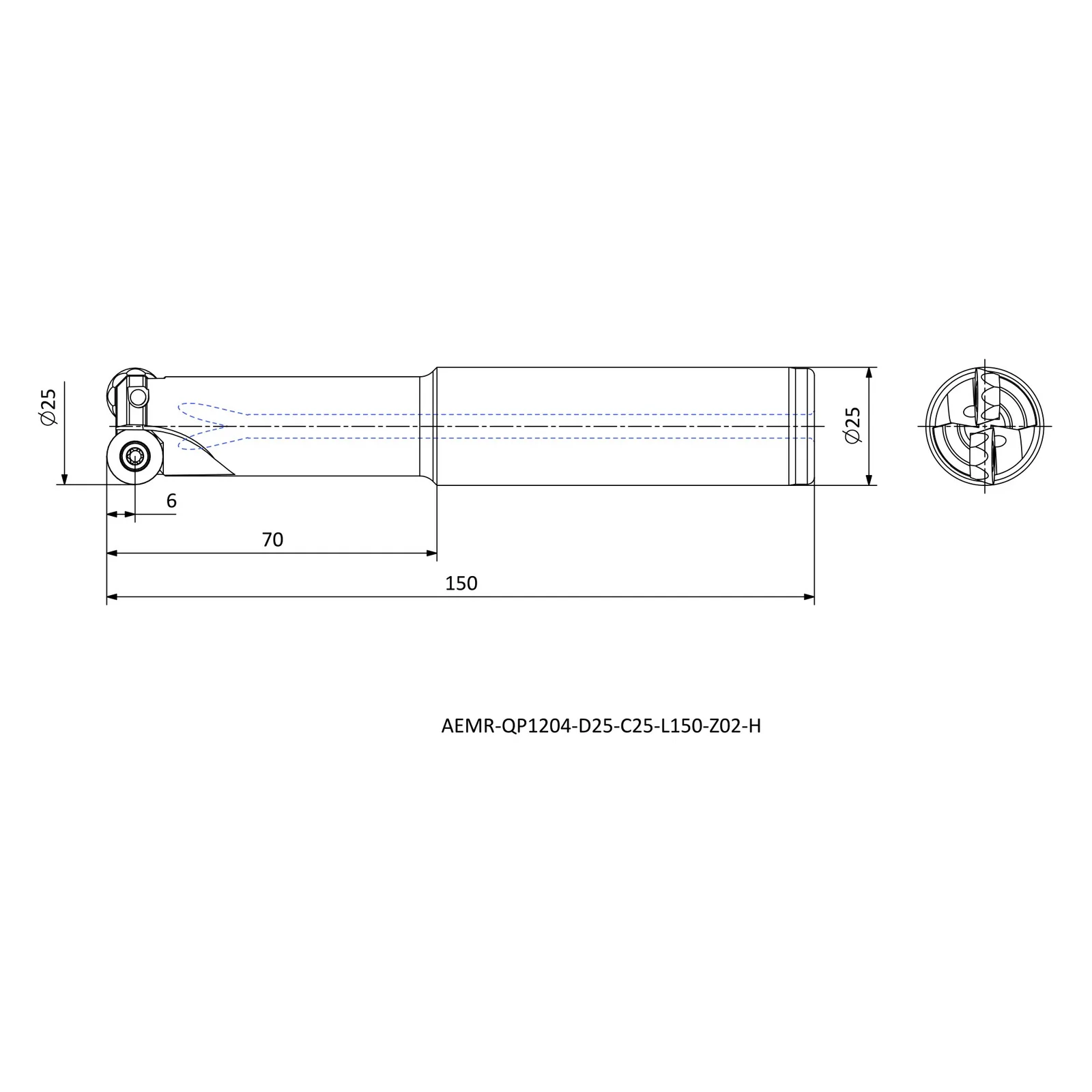

Specifications — AEMR-QP1204-D25-C25-L150-Z02-H
| Insert Code | Insert designation | QP.. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 70 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
