Tool Holders / S-System Face And Copy End Mills

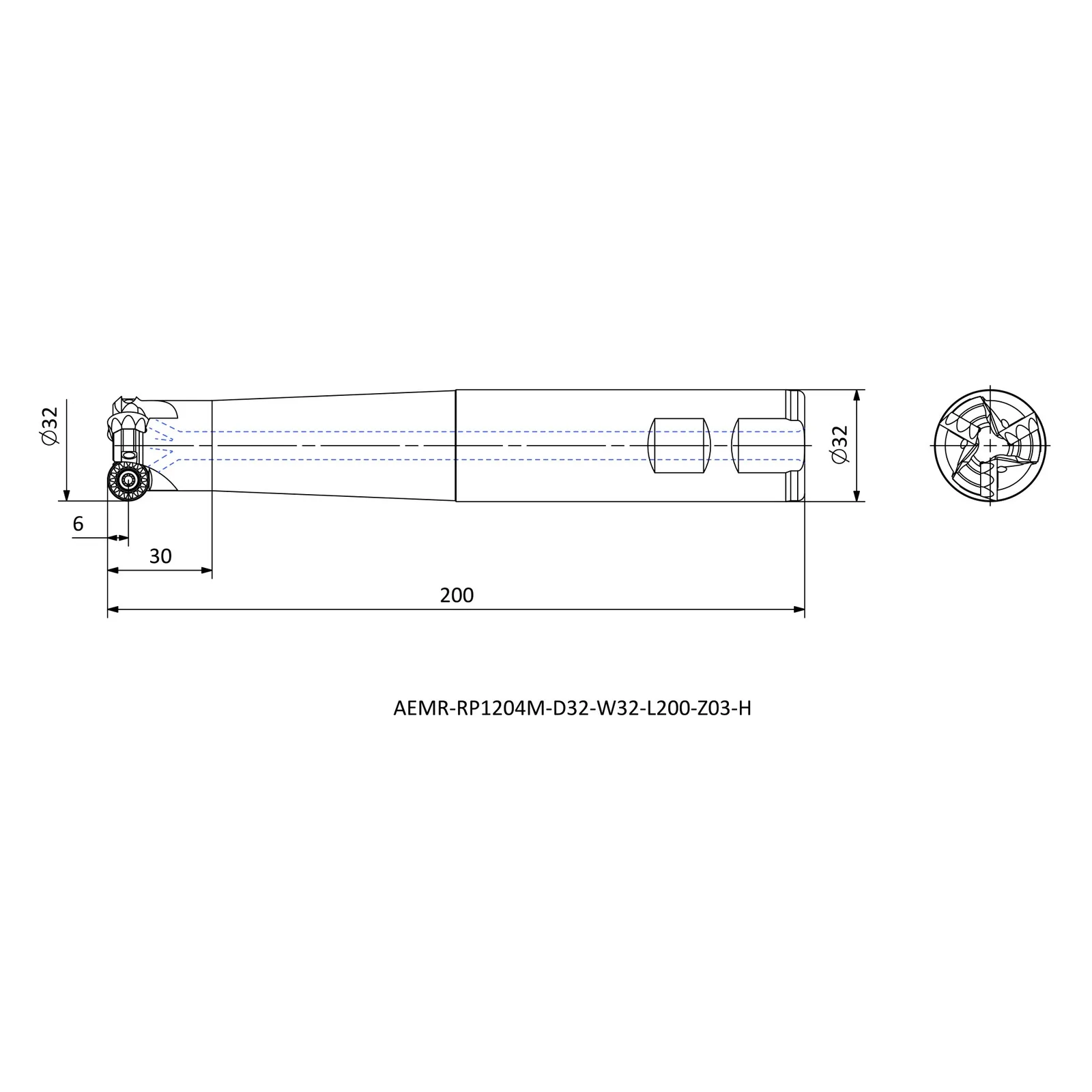

AEMR-RP1204M-D32-W32-L200-Z03-H
AEMR-RP series · see all 11 sizes
Insert compatibility
This size is built for the insert designation RPMT 1204 (as listed in the catalogue data).
Specifications — AEMR-RP1204M-D32-W32-L200-Z03-H
| Insert Code | Insert designation | RPMT 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 200 |
| DCX | Maximum diameter (mm) | 32 |
| LH | Head length (mm) | 100 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
