Tool Holders / S-System Face And Copy End Mills
AEMR-RP1606M-D40-W32-L150-Z02-H
AEMR-RP series · see all 11 sizes
Insert compatibility
This size is built for the insert designation RPMT 1606 (as listed in the catalogue data).

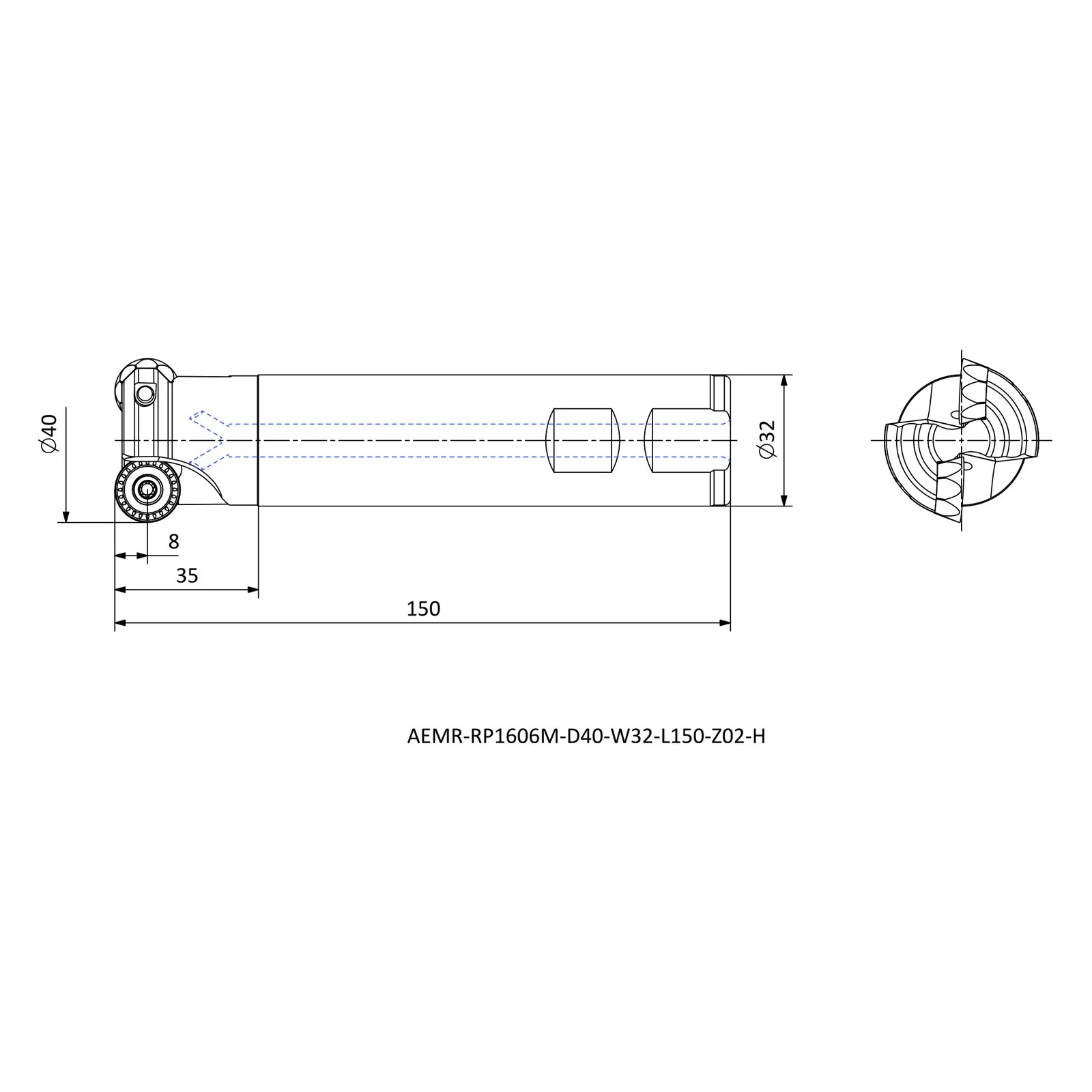

Specifications — AEMR-RP1606M-D40-W32-L150-Z02-H
| Insert Code | Insert designation | RPMT 1606.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 40 |
| LH | Head length (mm) | 35 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in AEMR-RP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AEMR-RP08T2M-D20-W20-L150-Z02-H | R | 20 | 150 | 20 |
| AEMR-RP08T2M-D25-W25-L200-Z03-H | R | 25 | 200 | 25 |
| AEMR-RP10T3M-D25-W25-L200-Z02-H | R | 25 | 200 | 25 |
| AEMR-RP10T3M-D32-W32-L200-Z03-H | R | 32 | 200 | 32 |
| AEMR-RP1204M-D25-C25-L180-Z02 | R | 25 | 180 | 25 |
| AEMR-RP1204M-D25-C25-L180-Z02-H | R | 25 | 180 | 25 |
| AEMR-RP1204M-D32-W32-L150-Z03-H | R | 32 | 150 | 32 |
| AEMR-RP1204M-D32-W32-L200-Z03-H | R | 32 | 200 | 32 |
| AEMR-RP1204M-D36-C25-L160-Z03 | R | 25 | 160 | 36 |
| AEMR-RP1606M-D40-W32-L150-Z02-H | R | 16 | 150 | 40 |
| AEMR-RP1606M-D40-W32-L200-Z02-H | R | 16 | 200 | 40 |
