Tool Holders / S-System Face And Copy End Mills
AEMR-RP10T3-D25-W25-L150-Z02
AEMR-RP series · see all 3 sizes
Insert compatibility
This size is built for the insert designation RPNX 10T3 (as listed in the catalogue data).

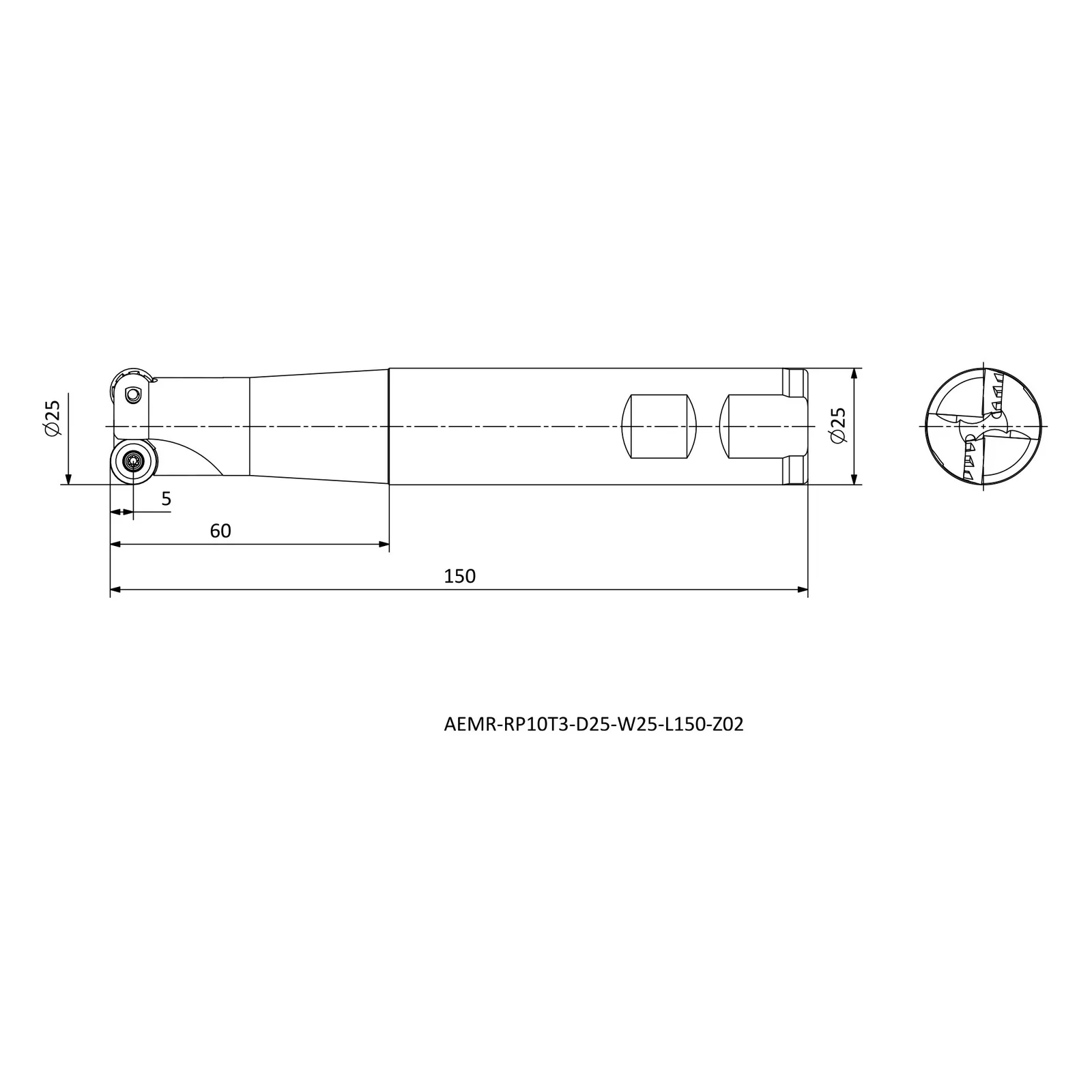

Specifications — AEMR-RP10T3-D25-W25-L150-Z02
| Insert Code | Insert designation | RPNX 10T3.. |
|---|---|---|
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 60 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AEMR-RP
| Product code | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) | Head length (mm) |
|---|---|---|---|---|
| AEMR-RP10T3-D25-W25-L125-Z02 | 25 | 125 | 25 | 60 |
| AEMR-RP10T3-D25-W25-L150-Z02 | 25 | 150 | 25 | 60 |
| AEMR-RP10T3-D32-W32-L150-Z03 | 32 | 150 | 32 | 60 |
