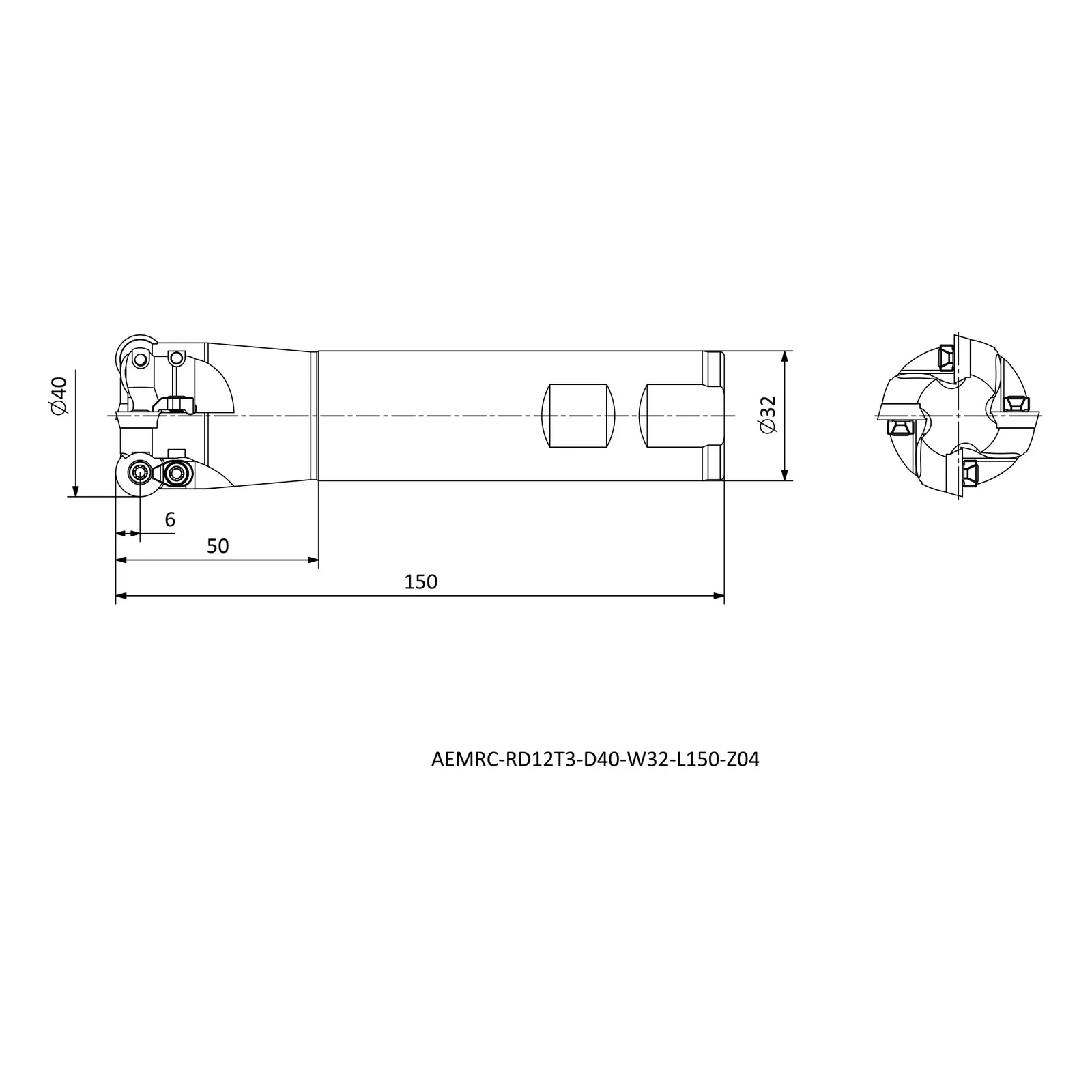

AEMRC-RD12T3-D40-W32-L150-Z04 — dimensioned drawing
Tool Holders / S-System Face And Copy End Mills

AEMRC-RD12T3-D40-W32-L150-Z04

AEMRC-RD series · see all 42 sizes

Insert compatibility

This size is built for the insert designation RD.. 12T3 (as listed in the catalogue data).

Ask about this size

Specifications — AEMRC-RD12T3-D40-W32-L150-Z04

Insert Code Insert designation RD.. 12T3
Product Direction Cutting direction (hand) R
DCON Connection diameter (mm) 32
LF Functional length (mm) 150
DCX Maximum diameter (mm) 40
LH Head length (mm) 50
ZEFP Effective cutting edges 4
APMX Depth of cut, maximum (mm) 6

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 42 sizes in AEMRC-RD

Product codeCutting direction (hand)Connection diameter (mm)Functional length (mm)Maximum diameter (mm)
AEMR-RD10T3-D25-C25-L180-Z02 R2518025
AEMRC-RD1204-D25-C25-L180-Z02 R2518025
AEMRC-RD1003-D32-C32-L250-Z02 R3225032
AEMRC-RD1003-D32-W32-L150-Z03 R3215032
AEMRC-RD1003-D40-C32-L250-Z02 R3225040
AEMRC-RD10T3-D20-C20-L150-Z02 R2015020
AEMRC-RD10T3-D25-C32-L150-Z03 R3215025
AEMRC-RD12T3-D32-C32-L250-Z02 R3225032
AEMRC-RD1003-D26-C25-L160-Z02 R2516026
AEMRC-RD1003-D33-C32-L160-Z03 R3216033
AEMRC-RD1204-D32-C32-L160-Z03 R3216032
AEMRC-RD12T3-D25-W25-L200-Z02 R2520025
AEMRC-RD12T3-D32-W32-L150-Z03 R3215032
AEMRC-RD1003-D20-C20-L250-Z02 R2025020
AEMRC-RD1204-D32-C32-L160-Z03-H R3216032
AEMRC-RD1204-D32-W32-L160-Z03 R3216032
AEMRC-RD1204-D33-C32-L160-Z03 R3216033
AEMRC-RD1003-D20-W20-L150-Z02 R2015020
AEMRC-RD1003-D21-C20-L160-Z02 R2016021
AEMRC-RD1003-D25-C25-L200-Z02 R2520025
AEMRC-RD1003-D25-W25-L150-Z02 R2515025
AEMRC-RD10T3-D25-C25-L200-Z02-H R2520025
AEMRC-RD12T3-D25-C25-L300-Z02 R2530025
AEMRC-RD12T3-D40-C32-L250-Z02 R3225040
AEMRC-RD10T3-D25-C25-L150-Z02 R2515025
AEMRC-RD10T3-D32-W32-L150-Z03 R3215032
AEMRC-RD1003-D40-W32-L150-Z04 R3215040
AEMRC-RD10T3-D21-C20-L200-Z02-H R2020021
AEMRC-RD10T3-D25-W25-L150-Z02 R2515025
AEMRC-RD10T3-D32-C25-L250-Z03-H R2525032
AEMRC-RD10T3-D32-C32-L150-Z04 R3215032
AEMRC-RD1204-D32-C32-L200-Z02 R3220032
AEMRC-RD12T3-D25-W25-L150-Z02 R2515025
AEMRC-RD1604-D40-W32-L150-Z02 R3215040
AEMRC-RD1003-D20-C20-L160-Z02 R2016020
AEMRC-RD1003-D25-C25-L160-Z02 R2516025
AEMRC-RD1003-D25-C25-L250-Z02 R2525025
AEMRC-RD1003-D25-W25-L200-Z02 R2520025
AEMRC-RD10T3-D20-W20-L150-Z02 R2015020
AEMRC-RD10T3-D26-C25-L200-Z02-H R2520026
AEMRC-RD12T3-D25-C25-L250-Z02 R2525025
AEMRC-RD12T3-D40-W32-L150-Z04 R3215040
