Tool Holders / S-System Highfeed End Mills

AHFM-BL0603-D17-W16-L170-Z02-H

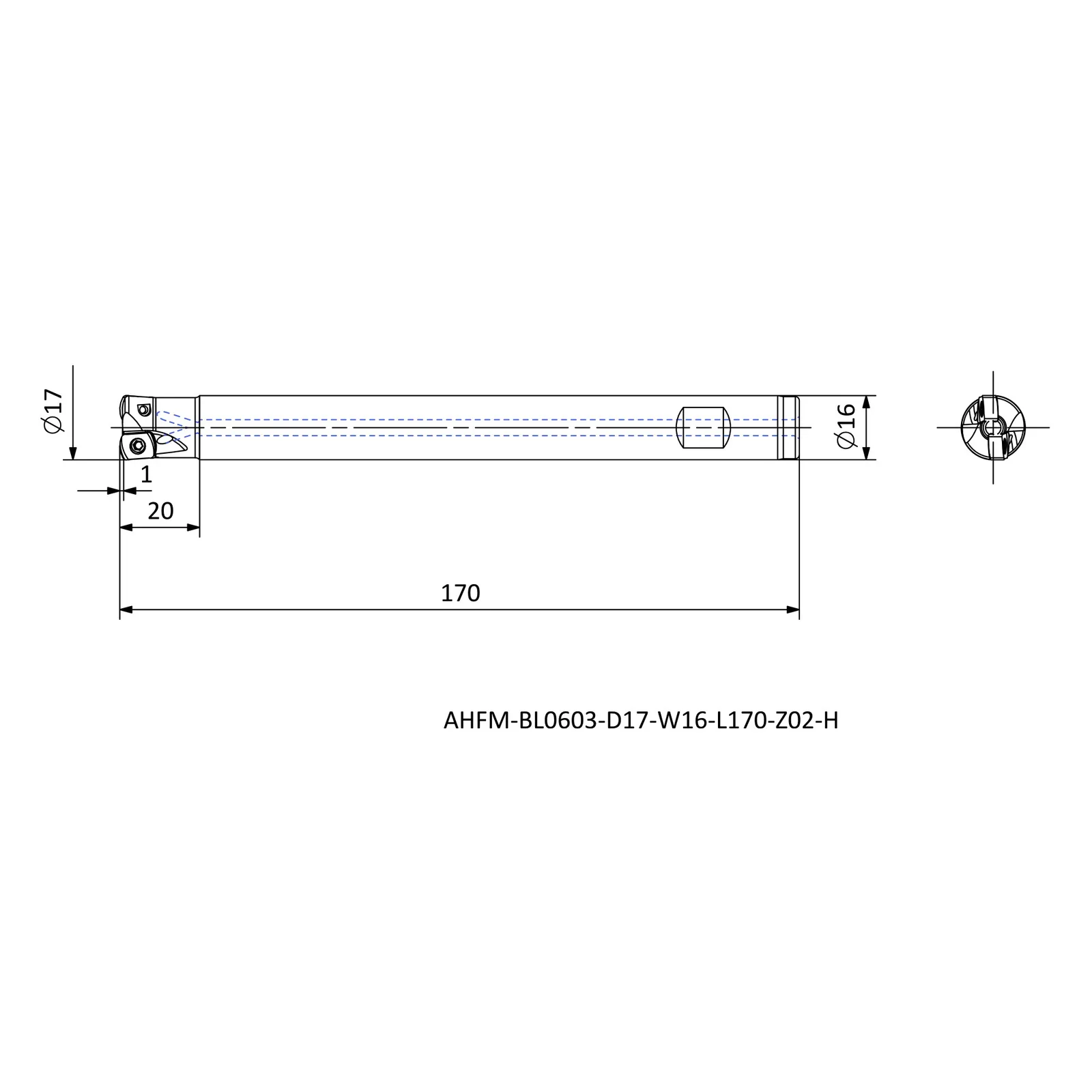

Name: AHFM-BL0603-D17-W16-L170-Z02-H
Brand: Axior
SKU: AHFM-BL0603-D17-W16-L170-Z02-H

AHFM-BL series · see all 26 sizes

This size is built for the insert designation BLMP 0603 (as listed in the catalogue data).

Specifications — AHFM-BL0603-D17-W16-L170-Z02-H

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Connection diameter (mm)	Functional length (mm)	Maximum diameter (mm)
AHFM-BL0603-D30-C25-L150-Z05	R	25	150	30
AHFM-BL0603-D26-C25-L250-Z04	R	25	250	26
AHFM-BL0603-D17-W16-L170-Z02-H	R	16	170	17
AHFM-BL0603-D16-C16-L100-Z02-H	R	16	100	16
AHFM-BL0603-D17-C16-L200-Z02	R	16	200	17
AHFM-BL0603-D18-W16-L150-Z02-H	R	16	150	18
AHFM-BL0603-D22-W20-L150-Z03	R	20	150	22
AHFM-BL0603-D26-C25-L150-Z04	R	25	150	26
AHFM-BL0603-D26-W25-L200-Z04	R	25	200	26
AHFM-BL0603-D16-C15-L150-Z02	R	15	150	16
AHFM-BL0603-D17-C16-L150-Z02	R	16	150	17
AHFM-BL0603-D20-C20-L160-Z03	R	20	160	20
AHFM-BL0603-D26-C25-L200-Z04	R	25	200	26
AHFM-BL0904-D28-W25-L180-Z03	R	25	180	28
AHFM-BL0603-D33-C32-L250-Z05	R	32	250	33
AHFM-BL0603-D16-C16-L150-Z02	R	16	150	16
AHFM-BL0603-D21-W20-L200-Z03	R	20	200	21
AHFM-BL0603-D17-W16-L170-Z02	R	16	170	17
AHFM-BL0603-D32-C32-L150-Z05	R	32	150	32
AHFM-BL0603-D32-C32-L200-Z05	R	32	200	32
AHFM-BL0603-D18-C16-L150-Z02	R	16	150	18
AHFM-BL0603-D20-C20-L130-Z03	R	20	130	20
AHFM-BL0603-D21-C20-L200-Z03	R	20	200	21
AHFM-BL0603-D25-C25-L250-Z04	R	25	250	25
AHFM-BL0603-D33-C32-L150-Z05	R	32	150	33
AHFM-BL0603-D33-C32-L200-Z05	R	32	200	33
