Tool Holders / S-System Highfeed End Mills
AHFM-BL0603-D22-W20-L150-Z03
AHFM-BL series · see all 26 sizes
Insert compatibility
This size is built for the insert designation BLMP 0603 (as listed in the catalogue data).

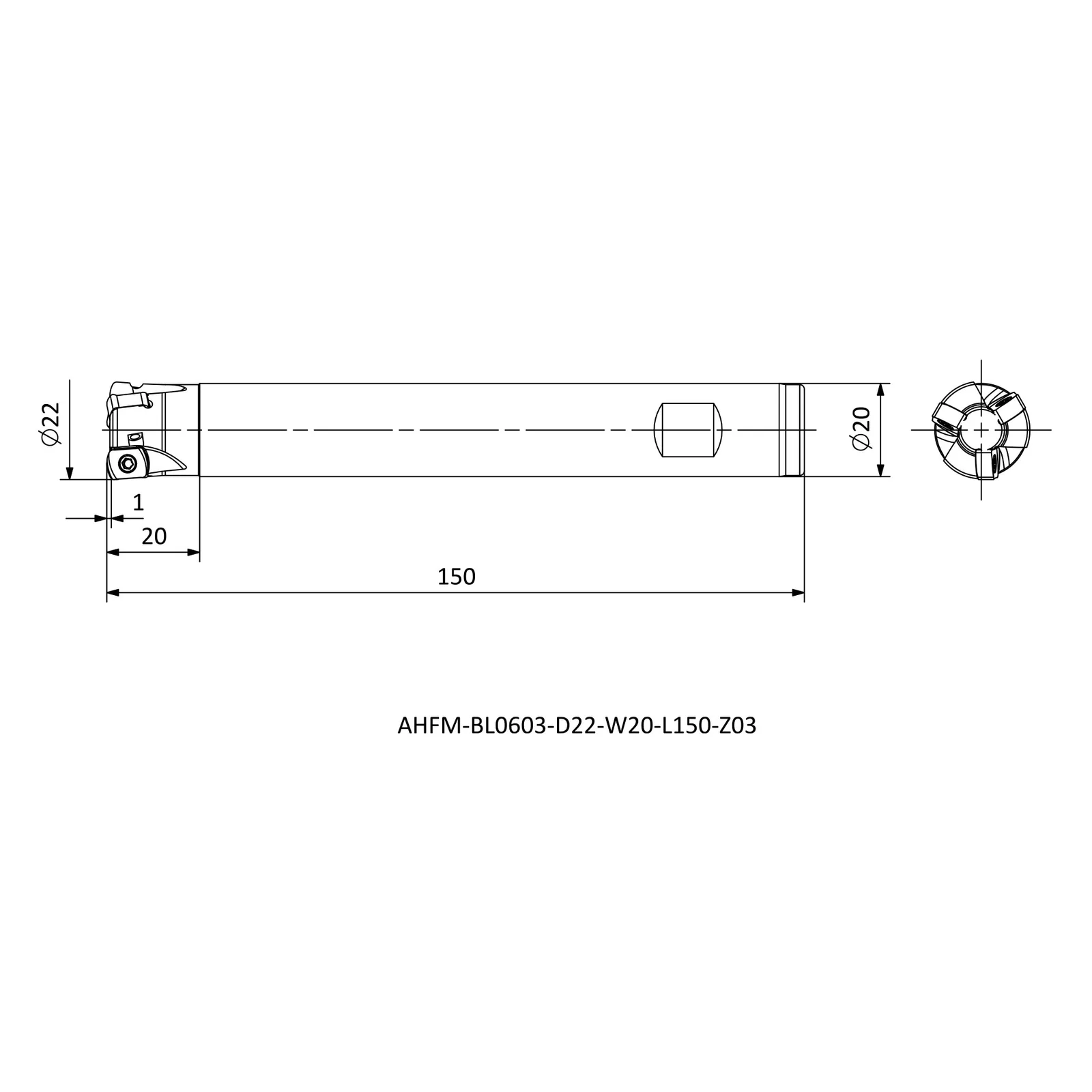

Specifications — AHFM-BL0603-D22-W20-L150-Z03
| Insert Code | Insert designation | BLMP 0603.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 22 |
| LH | Head length (mm) | 20 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
