Tool Holders / S-System Highfeed End Mills

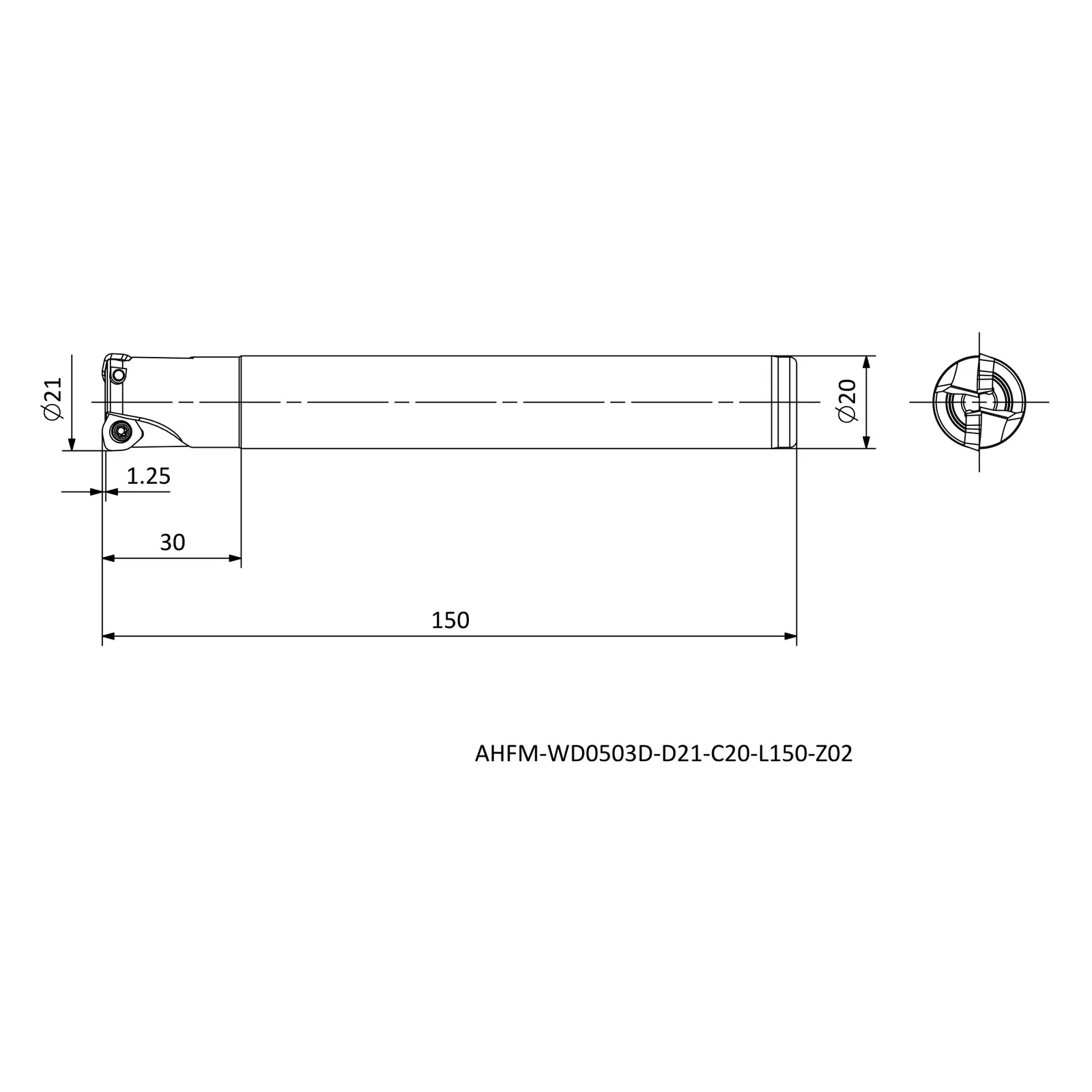

AHFM-WD0503D-D21-C20-L150-Z02
AHFM(C)-WD series · see all 4 sizes
Insert compatibility
This size is built for the insert designation WD.W 0503 (as listed in the catalogue data).
Specifications — AHFM-WD0503D-D21-C20-L150-Z02
| Insert Code | Insert designation | WD.W 0503.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 21 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 1.25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AHFM(C)-WD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-WD0503D-D20-C20-L150-Z02 | R | 20 | 150 | 20 |
| AHFM-WD0503D-D21-C20-L150-Z02 | R | 20 | 150 | 21 |
| AHFMC-WD06T3D-D26-C25-L200-Z02 | R | 25 | 200 | 26 |
| AHFMC-WD06T3D-D33-C32-L200-Z03 | R | 32 | 200 | 33 |
