Tool Holders / S-System Highfeed End Mills
AHFM-YO0602-D12-C12-L120-Z03-H
AHFM-YO0602 series · see all 15 sizes
Insert compatibility
This size is built for the insert designation YOHW 0602 (as listed in the catalogue data).

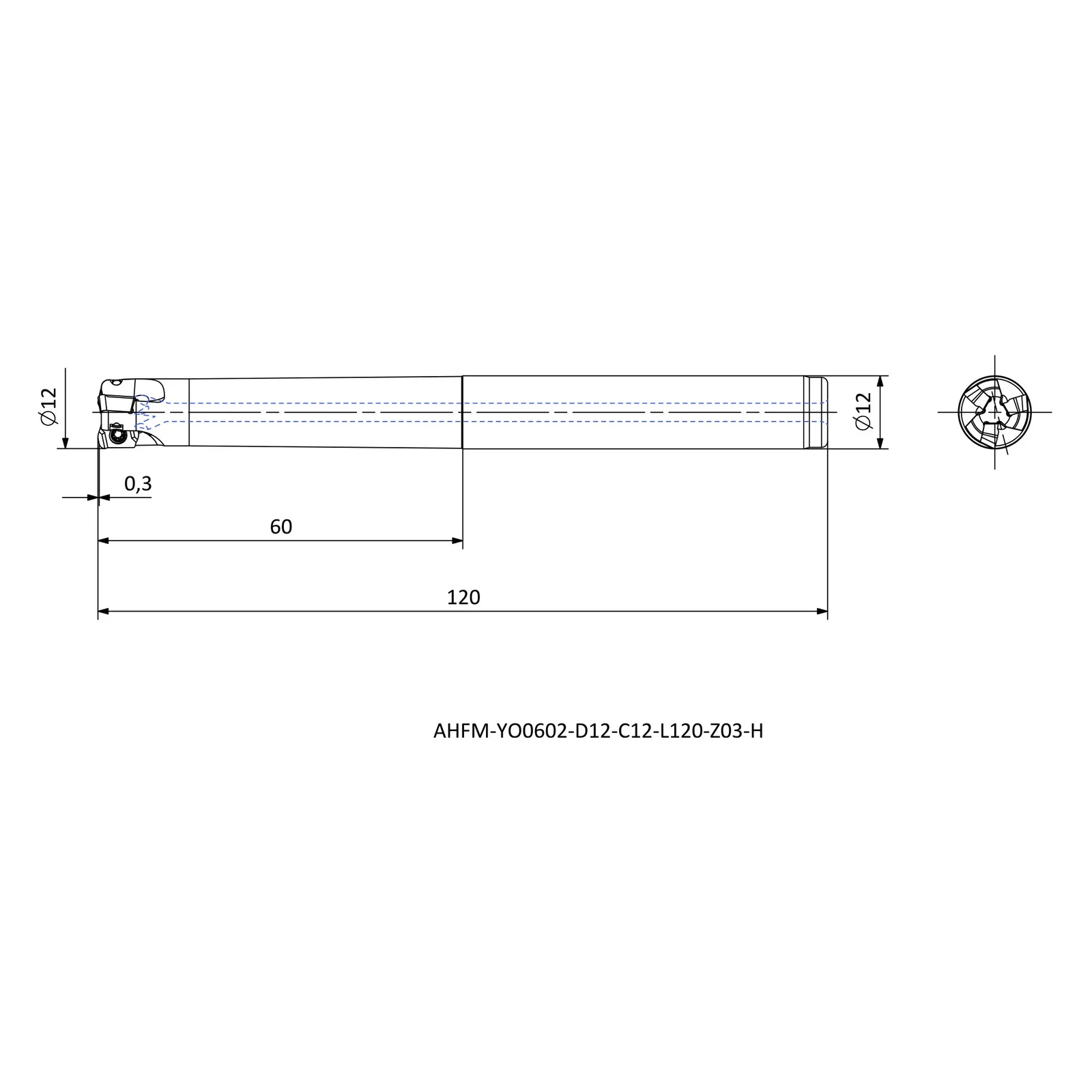

Specifications — AHFM-YO0602-D12-C12-L120-Z03-H
| Insert Code | Insert designation | YOHW 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 12 |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 120 |
| LH | Head length (mm) | 60 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 0.3 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 15 sizes in AHFM-YO0602
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-YO0602-D10-C09-L120-Z02-F | R | 10 | 9 | 120 |
| AHFM-YO0602-D10-C10-L080-Z02-F | R | 10 | 10 | 80 |
| AHFM-YO0602-D10-C10-L120-Z02-F | R | 10 | 10 | 120 |
| AHFM-YO0602-D10-C10-L120-Z02-H-F | R | 10 | 10 | 120 |
| AHFM-YO0602-D10-C10-L120-Z02-H | R | 10 | 10 | 120 |
| AHFM-YO0602-D12-C11-L120-Z02-F | R | 12 | 11 | 120 |
| AHFM-YO0602-D12-C11-L120-Z02-H-F | R | 12 | 11 | 120 |
| AHFM-YO0602-D12-C11-L120-Z02-H | R | 12 | 11 | 120 |
| AHFM-YO0602-D12-C11-L120-Z03-F | R | 12 | 11 | 120 |
| AHFM-YO0602-D12-C12-L080-Z02-F | R | 12 | 12 | 80 |
| AHFM-YO0602-D12-C12-L080-Z03-F | R | 12 | 12 | 80 |
| AHFM-YO0602-D12-C12-L120-Z02-F | R | 12 | 12 | 120 |
| AHFM-YO0602-D12-C12-L120-Z02-H | R | 12 | 12 | 120 |
| AHFM-YO0602-D12-C12-L120-Z03-F | R | 12 | 12 | 120 |
| AHFM-YO0602-D12-C12-L120-Z03-H | R | 12 | 12 | 120 |
