Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)

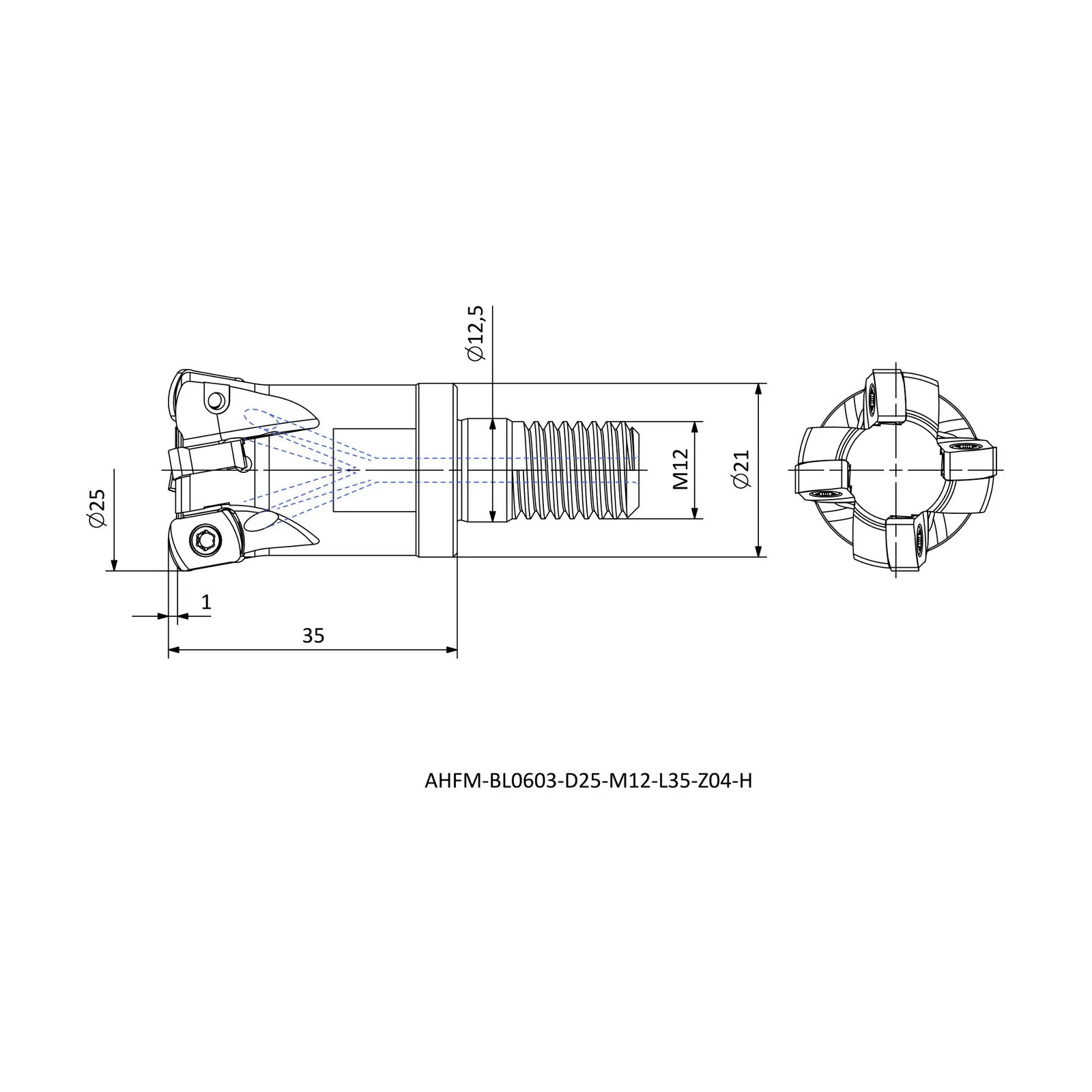

AHFM-BL0603-D25-M12-L35-Z04-H
AHFM-BL series · see all 8 sizes
Insert compatibility
This size is built for the insert designation BLMP 0603 (as listed in the catalogue data).
Specifications — AHFM-BL0603-D25-M12-L35-Z04-H
| Insert Code | Insert designation | BLMP 0603.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 21 |
| LF | Functional length (mm) | 35 |
| DCX | Maximum diameter (mm) | 25 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 1 |
| TDZ | Thread depth (mm) | M12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in AHFM-BL
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-BL0603-D17-M08-L35-Z02-H | R | 8.5 | 16 | 35 |
| AHFM-BL0603-D21-M10-L35-Z03-H | R | 10.5 | 19 | 35 |
| AHFM-BL0603-D20-M10-L30-Z03-H | R | 10.5 | 18 | 30 |
| AHFM-BL0603-D25-M12-L35-Z04-H | R | 12.5 | 21 | 35 |
| AHFM-BL0603-D32-M16-L40-Z05-H | R | 17 | 29 | 40 |
| AHFM-BL0904-D32-M16-L40-Z04-H | R | 17 | 29 | 40 |
| AHFM-BL0904-D32-M16-L43-Z04-H | R | 17 | 29 | 43 |
| AHFM-BL0904-D42-M16-L43-Z05-H | R | 17 | 29 | 43 |
