Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)
AHFMC-SD09T3-D32-M16-L43-Z03-H
AHFM(C)-SD series · see all 9 sizes
Insert compatibility
This size is built for the insert designation SD.. 09T3 (as listed in the catalogue data).

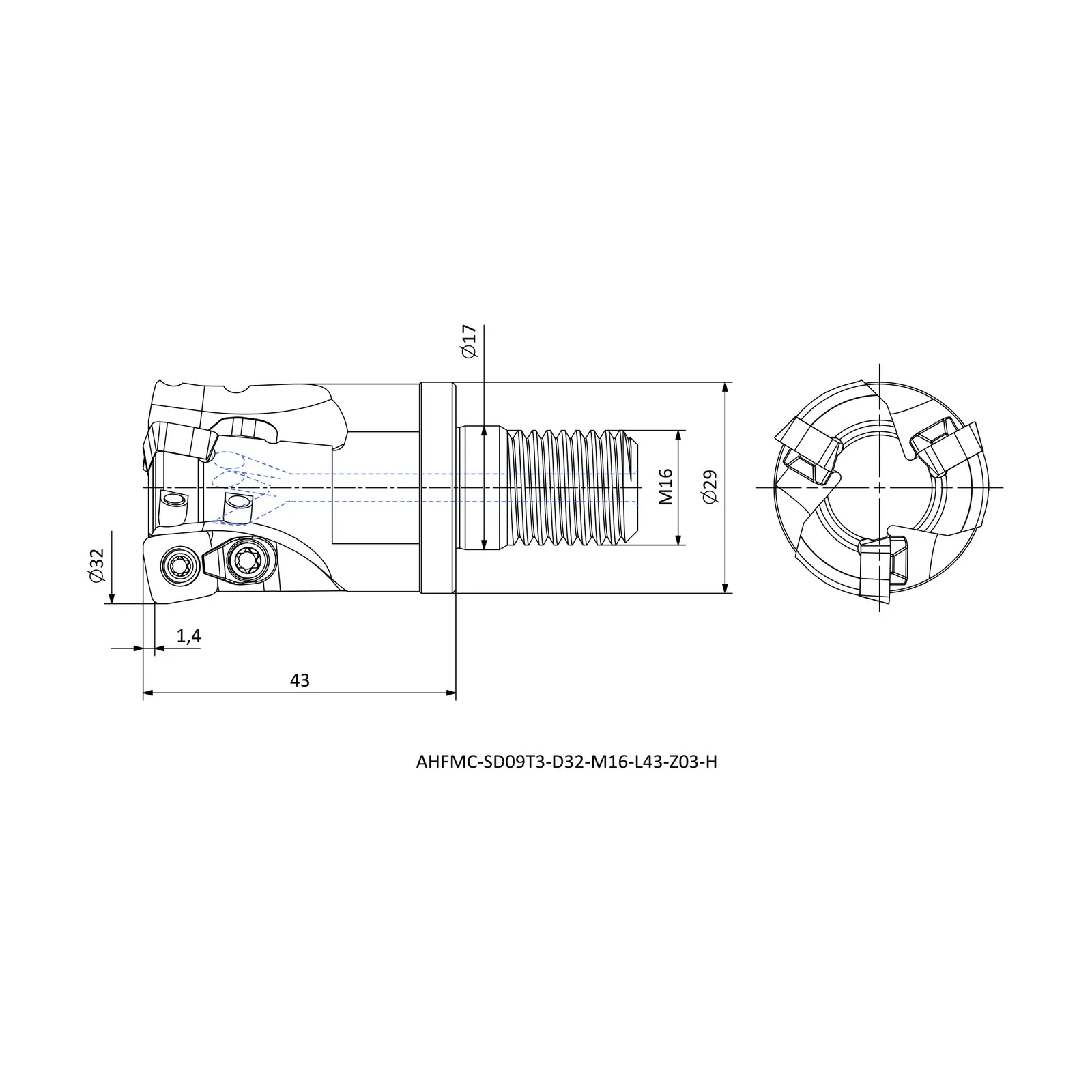

Specifications — AHFMC-SD09T3-D32-M16-L43-Z03-H
| Insert Code | Insert designation | SD.. 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 17 |
| DCSFMS | Contact-face diameter, machine side (mm) | 29 |
| LF | Functional length (mm) | 43 |
| DCX | Maximum diameter (mm) | 32 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 1.4 |
| TDZ | Thread depth (mm) | M16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in AHFM(C)-SD
