Tool Holders / S-System Highfeed Modular End Mills (SCREW Type Tools)

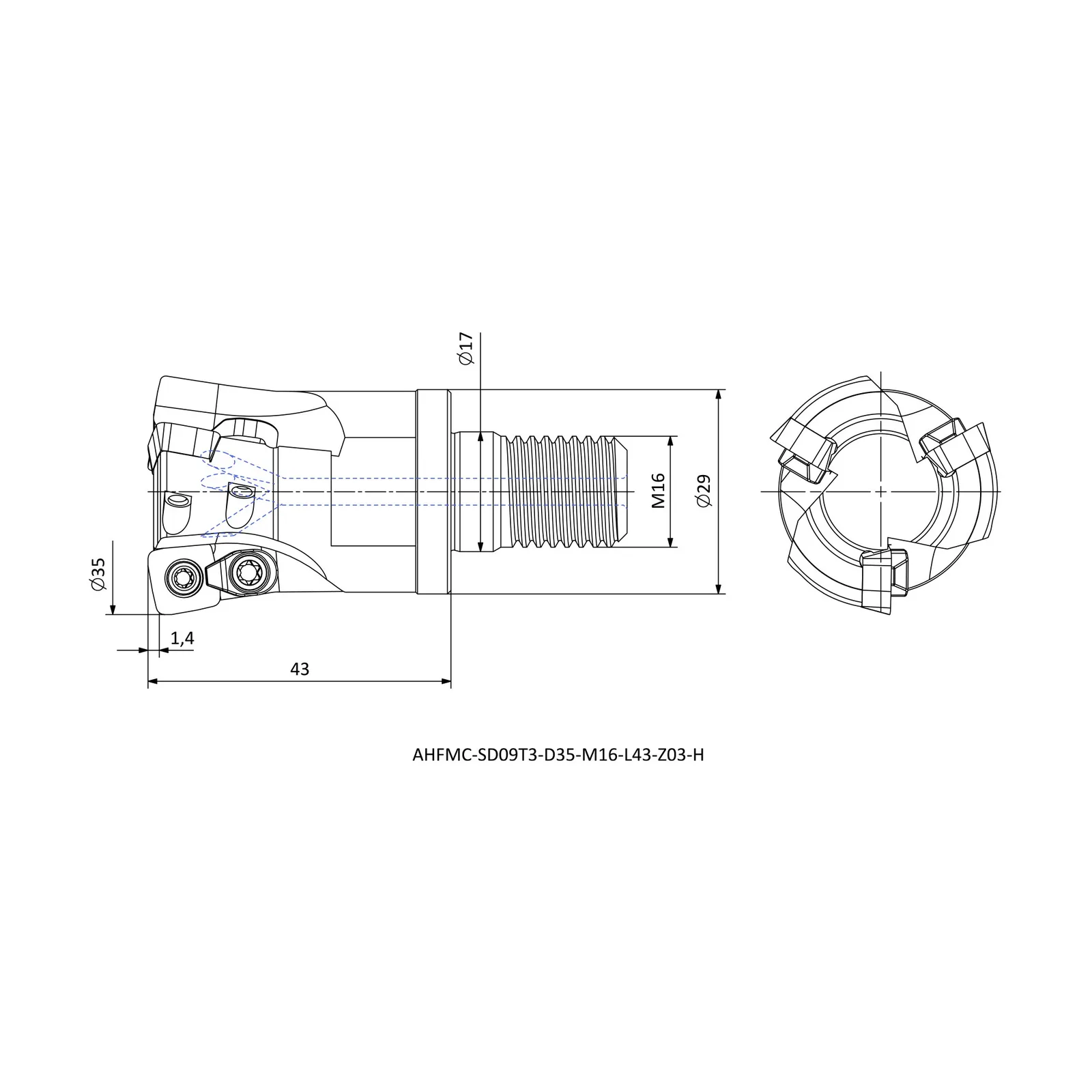

AHFMC-SD09T3-D35-M16-L43-Z03-H
AHFM(C)-SD series · see all 9 sizes
Insert compatibility
This size is built for the insert designation SD.. 09T3 (as listed in the catalogue data).
Specifications — AHFMC-SD09T3-D35-M16-L43-Z03-H
| Insert Code | Insert designation | SD.. 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 17 |
| DCSFMS | Contact-face diameter, machine side (mm) | 29 |
| LF | Functional length (mm) | 43 |
| DCX | Maximum diameter (mm) | 35 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 1.4 |
| TDZ | Thread depth (mm) | M16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in AHFM(C)-SD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-SD06T2-D16-M08-L23-Z02-H | R | 8.5 | 14.75 | 23 |
| AHFM-SD06T2-D20-M10-L30-Z03-H | R | 10.5 | 18 | 30 |
| AHFM-SD06T2-D25-M12-L35-Z04-H | R | 12.5 | 21 | 35 |
| AHFMC-SD09T3-D25-M12-L30-Z02-H | R | 12.5 | 22 | 30 |
| AHFMC-SD09T3-D32-M16-L43-Z03-H | R | 17 | 29 | 43 |
| AHFMC-SD09T3-D35-M16-L43-Z03-H | R | 17 | 29 | 43 |
| AHFMC-SD09T3-D40-M16-L43-Z04-H | R | 17 | 29 | 43 |
| AHFMC-SD1204-D32-M16-L43-Z02-H | R | 17 | 29 | 43 |
| AHFMC-SD1204-D40-M16-L43-Z03-H | R | 17 | 29 | 43 |
