Tool Holders / S-System Modular End Mills (SCREW Type Tools)
AEM90-RT07-D13-M06-L20-Z02-H
AEM90-RT series · see all 10 sizes
Insert compatibility
This size is built for the insert designation RT 0702 (as listed in the catalogue data).

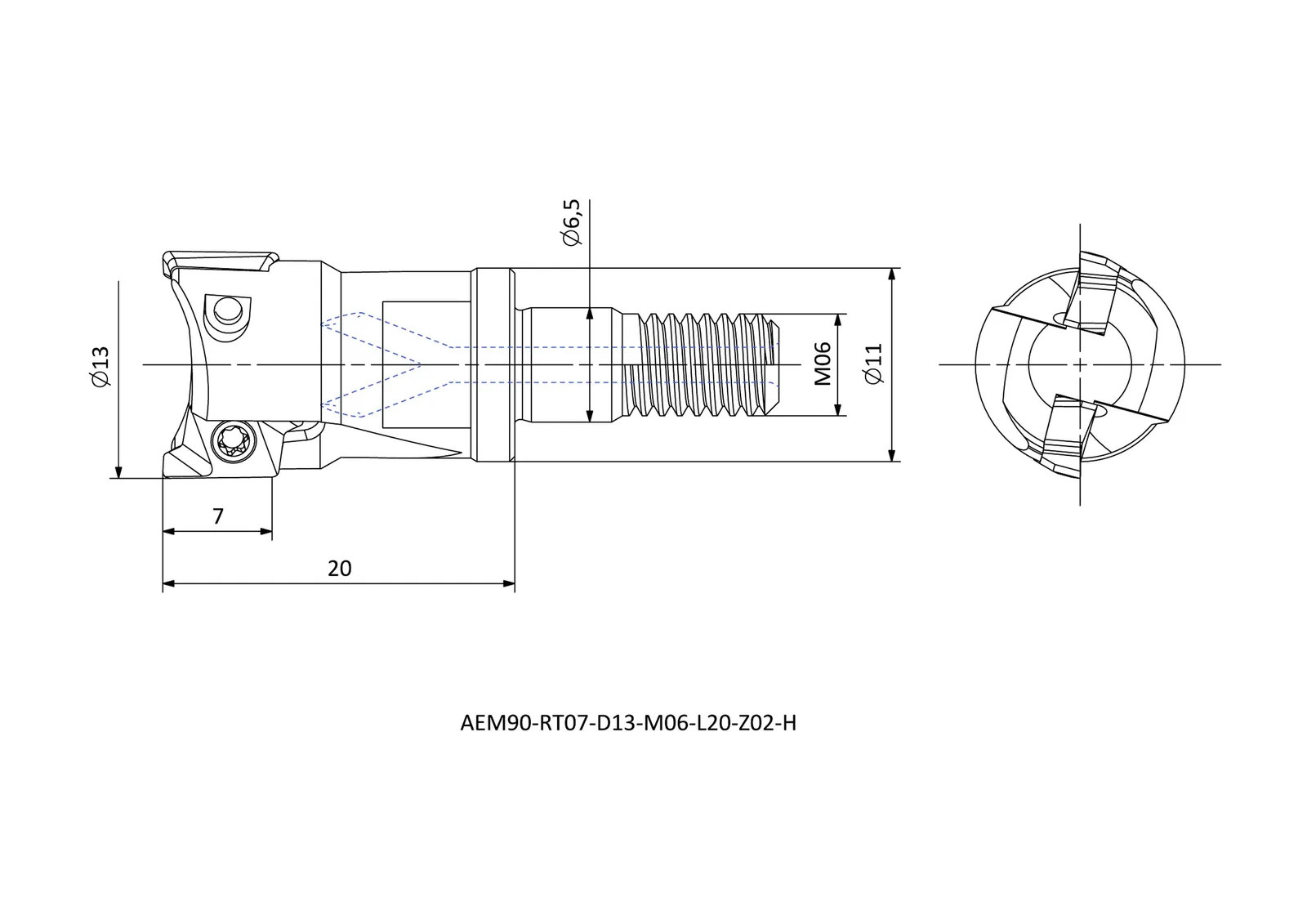

Specifications — AEM90-RT07-D13-M06-L20-Z02-H
| Insert Code | Insert designation | RT 0702 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 13 |
| DCON | Connection diameter (mm) | 6.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 11 |
| LF | Functional length (mm) | 20 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 7 |
| TDZ | Thread depth (mm) | M06 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
