Tool Holders / S-System Modular End Mills (SCREW Type Tools)

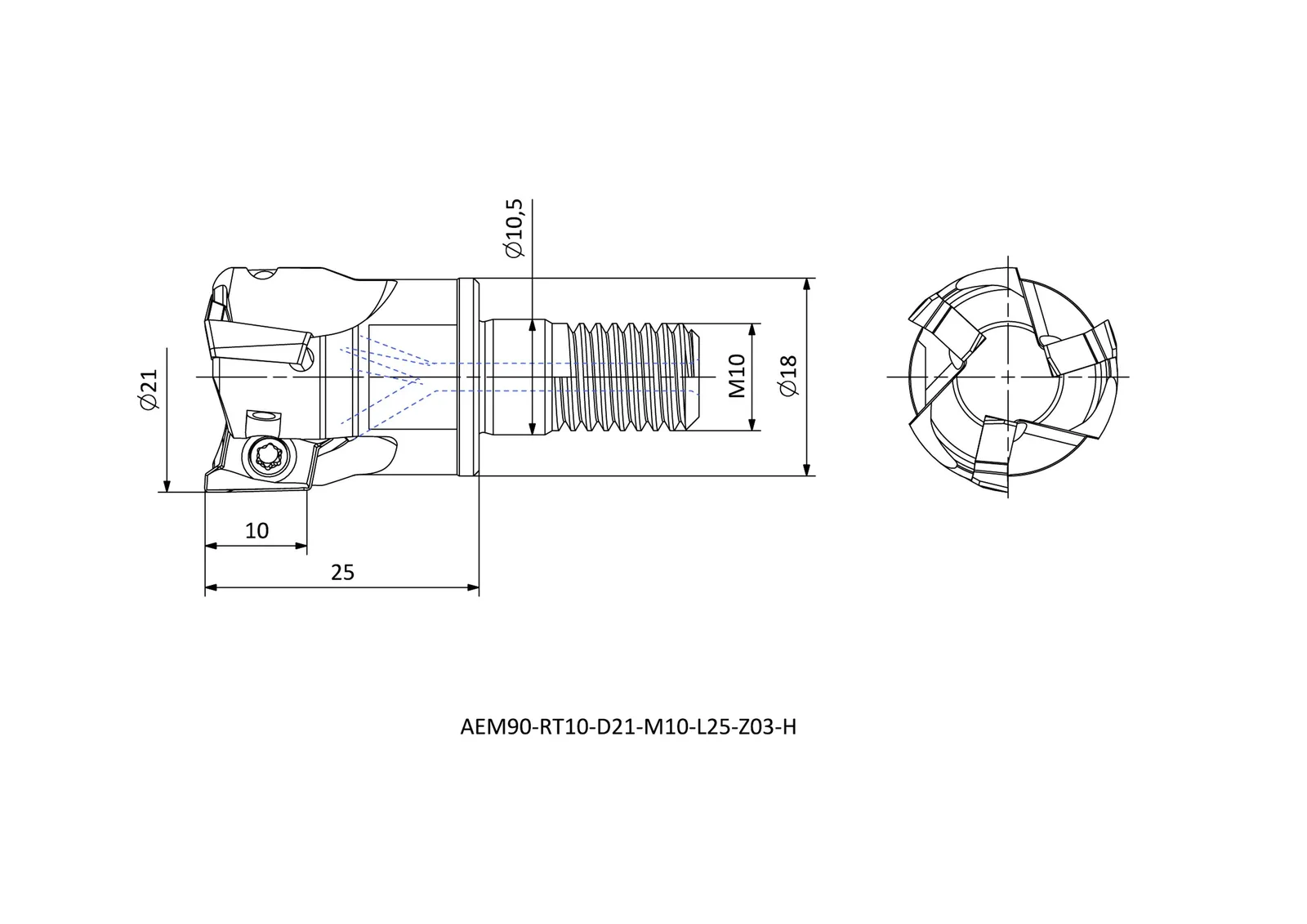

AEM90-RT10-D21-M10-L25-Z03-H
AEM90-RT series · see all 10 sizes
Insert compatibility
This size is built for the insert designation RT 1003 (as listed in the catalogue data).
Specifications — AEM90-RT10-D21-M10-L25-Z03-H
| Insert Code | Insert designation | RT 1003 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 21 |
| DCON | Connection diameter (mm) | 10.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 18 |
| LF | Functional length (mm) | 25 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 10 |
| TDZ | Thread depth (mm) | M10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in AEM90-RT
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| AEM90-RT10-D17-M08-L20-Z02-H | R | 17 | 8.5 | 14.75 |
| AEM90-RT10-D21-M10-L25-Z03-H | R | 21 | 10.5 | 18 |
| AEM90-RT10-D26-M12-L35-Z03-H | R | 26 | 12.5 | 21 |
| AEM90-RT10-D26-M12-L35-Z04-H | R | 26 | 12.5 | 21 |
| AEM90-RT07-D13-M06-L20-Z02-H | R | 13 | 6.5 | 11 |
| AEM90-RT10-D16-M08-L20-Z02-H | R | 16 | 8.5 | 14.75 |
| AEM90-RT10-D20-M10-L25-Z03-H | R | 20 | 10.5 | 18 |
| AEM90-RT10-D25-M12-L30-Z04-H | R | 25 | 12.5 | 21 |
| AEM90-RT10-D32-M16-L43-Z05-H | R | 32 | 17 | 29 |
| AEM90-RT10-D42-M16-L43-Z06-H | R | 42 | 17 | 29 |
