Tool Holders / S-System Tools For Swiss Type Sliding Automatic Lathes
SCACL 1010 K06-S
SCACR/L-S series · see all 22 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

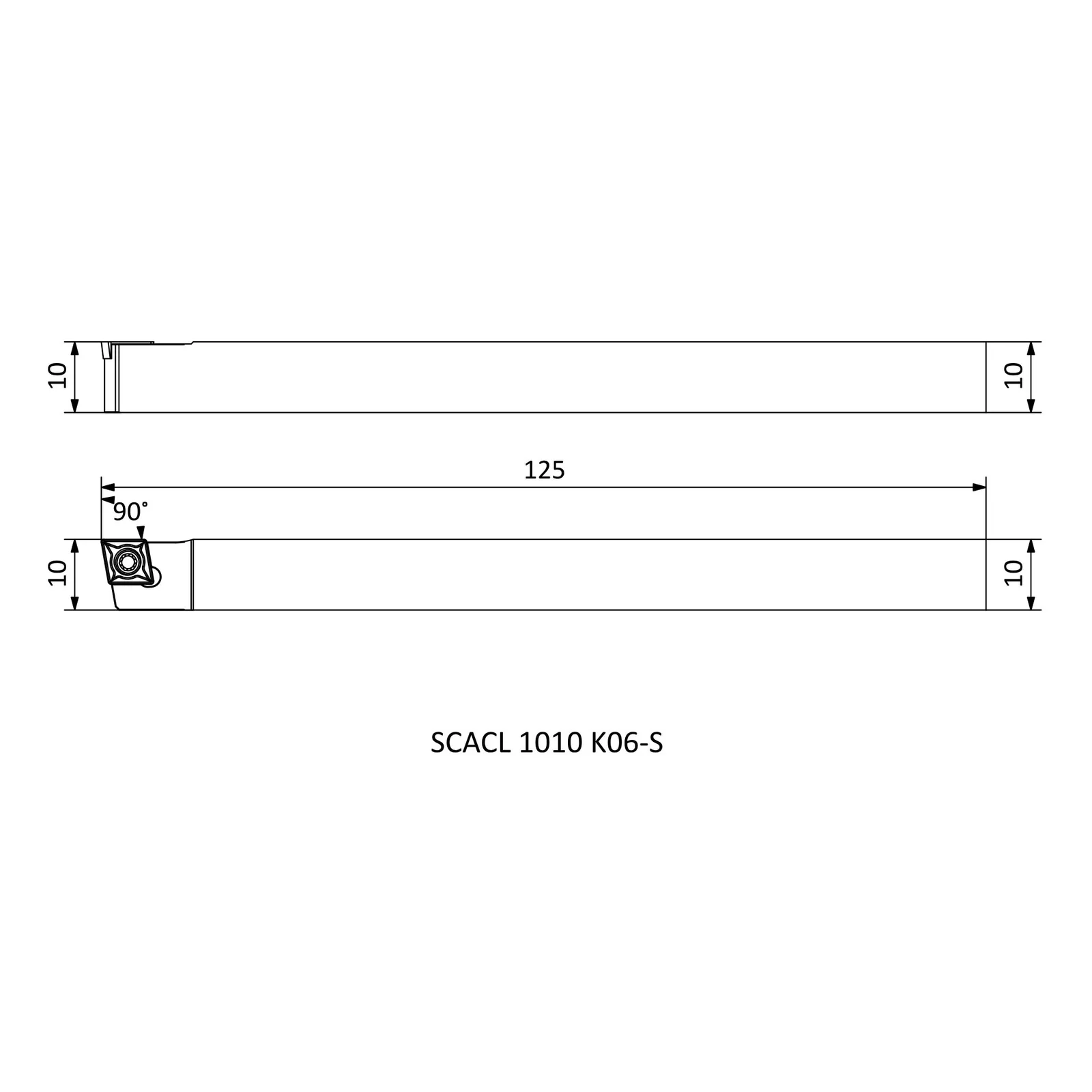

Specifications — SCACL 1010 K06-S
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 10 |
| HF=H | Functional height (mm) | 10 |
| B | Shank width (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 22 sizes in SCACR/L-S
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SCACL 1212 K06-S | L | 125 | 12 | 12 |
| SCACL 1616 K06-S | L | 125 | 16 | 16 |
| SCACL 1616 K09-S | L | 125 | 16 | 16 |
| SCACR 1212 G06-S | R | 90 | 12 | 12 |
| SCACR 1212 K06-S | R | 125 | 12 | 12 |
| SCACR 0808 X06-S | R | 115 | 8 | 8 |
| SCACR 1212 K09-S | R | 125 | 12 | 12 |
| SCACR 1616 F06-S | R | 75 | 16 | 16 |
| SCACR 1616 K09-S | R | 125 | 16 | 16 |
| SCACL 1616 F06-S | L | 75 | 16 | 16 |
| SCACR 1010 K06-S | R | 125 | 10 | 10 |
| SCACL 1212 G09-S | L | 90 | 12 | 12 |
| SCACL 1212 K09-S | L | 125 | 12 | 12 |
| SCACL 1616 F09-S | L | 75 | 16 | 16 |
| SCACL 2020 K09-S | L | 125 | 20 | 20 |
| SCACR 1212 G09-S | R | 90 | 12 | 12 |
| SCACR 1616 K06-S | R | 125 | 16 | 16 |
| SCACR 2020 K09-S | R | 125 | 20 | 20 |
| SCACL 1212 G06-S | L | 90 | 12 | 12 |
| SCACR 1616 F09-S | R | 75 | 16 | 16 |
| SCACL 0808 X06-S | L | 115 | 8 | 8 |
| SCACL 1010 K06-S | L | 125 | 10 | 10 |
