Tool Holders / S-System Tools For Swiss Type Sliding Automatic Lathes
SDACL 1212 K07-S
SDACR/L-S series · see all 22 sizes
Insert compatibility
This size is built for the insert designation DC.T 0702 (as listed in the catalogue data).

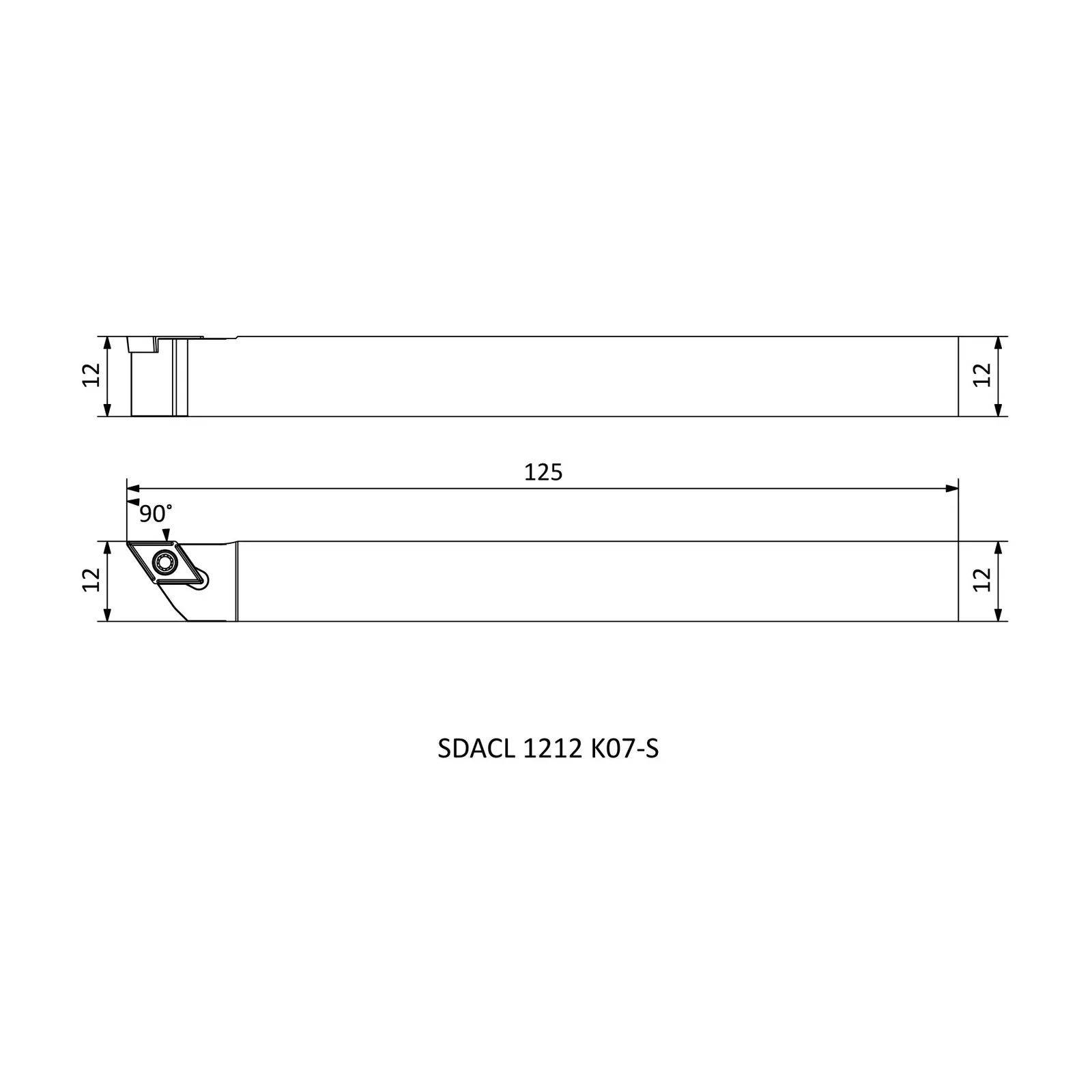

Specifications — SDACL 1212 K07-S
| Insert Code | Insert designation | DC.T 0702.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 12 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
