Tool Holders / Sec Tools
SDJCR-12X43.3-11
SDJCR/L series · see all 16 sizes
Insert compatibility
This size is built for the insert designation DC.T 11T3 (as listed in the catalogue data).

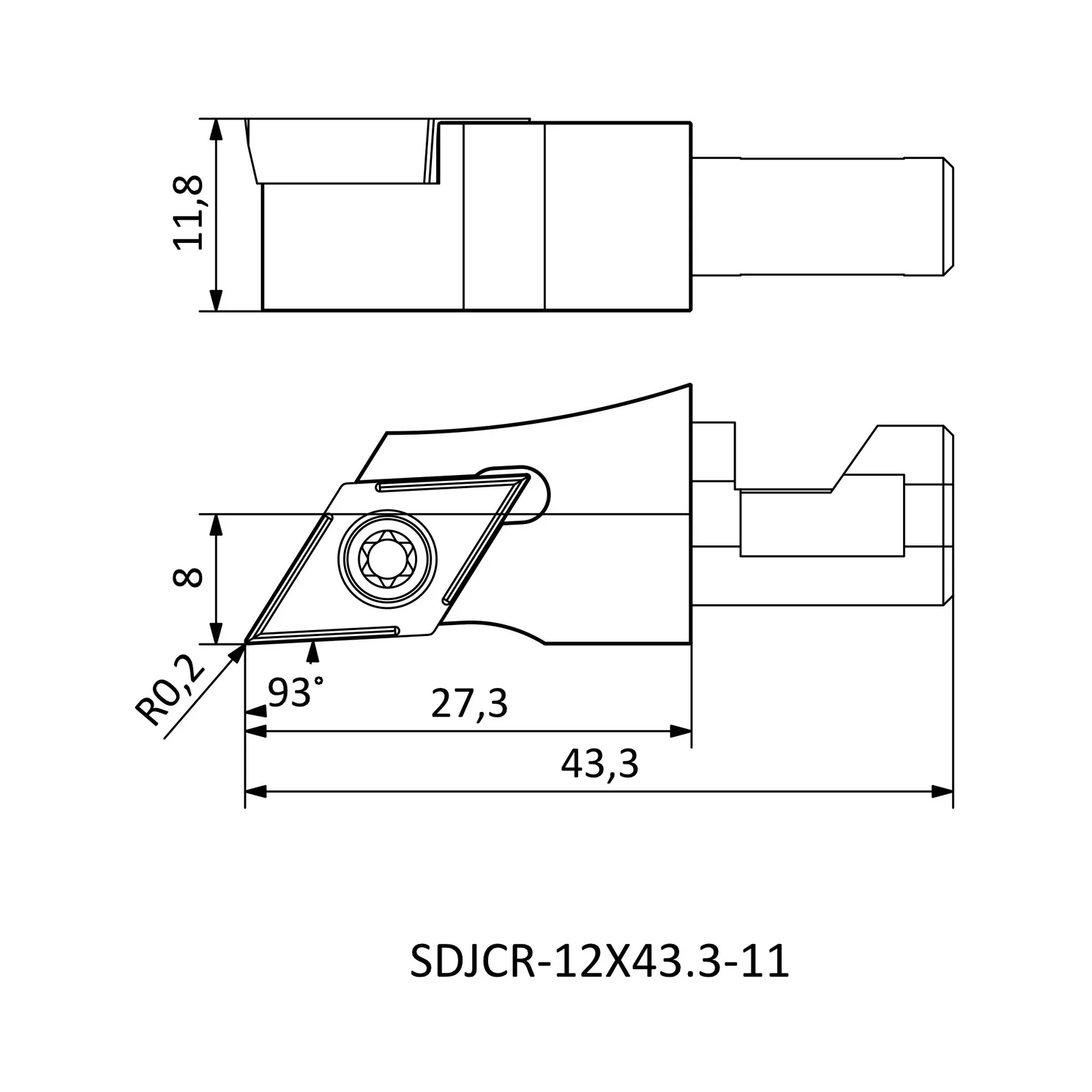

Specifications — SDJCR-12X43.3-11
| Insert Code | Insert designation | DC.T 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| OAL | Overall length (mm) | 43.3 |
| LF | Functional length (mm) | 27.3 |
| WF | Functional width (mm) | 8 |
| RE | Corner radius (mm) | 0.2 |
| HF | Functional height (mm) | 11.8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 16 sizes in SDJCR/L
