Tool Holders / T Slot Milling
ATSM90-CC06-D28X8-W20-L66-Z04
ATSM90-CC series · see all 23 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

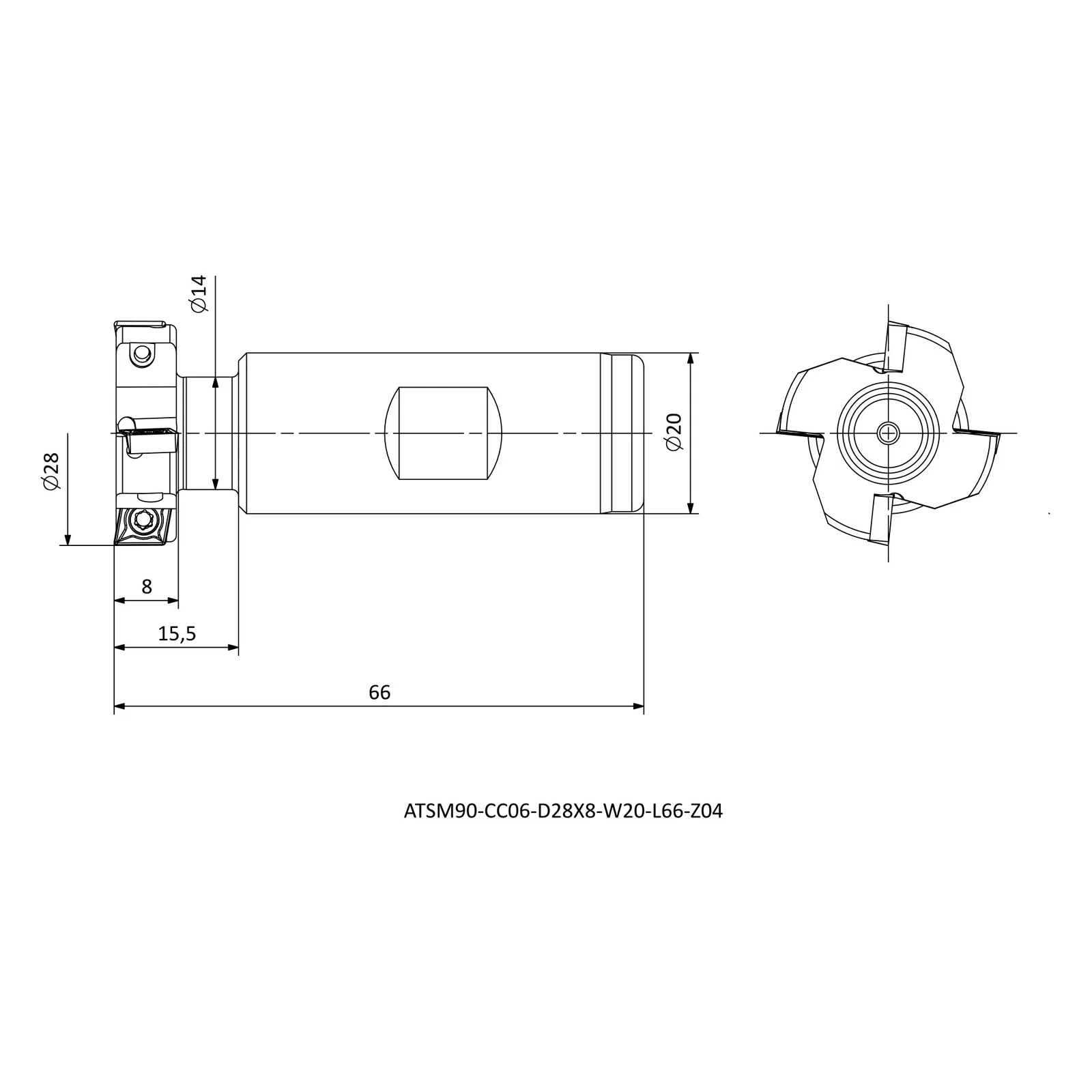

Specifications — ATSM90-CC06-D28X8-W20-L66-Z04
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 28 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 66 |
| LH | Head length (mm) | 15.5 |
| ZEFP ETKILI | Effective cutting edges | 2 |
| CW | Cutting width (mm) | 8 |
| DN | Neck diameter (mm) | 14 |
| ZEFP Toplam | Total cutting edges | 4 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
