ATSM90-CC09-D42X17-W32-L120-Z04

Name: ATSM90-CC09-D42X17-W32-L120-Z04
Brand: Axior
SKU: ATSM90-CC09-D42X17-W32-L120-Z04

ATSM90-CC series · see all 23 sizes

This size is built for the insert designation CC.T 09T3 (as listed in the catalogue data).

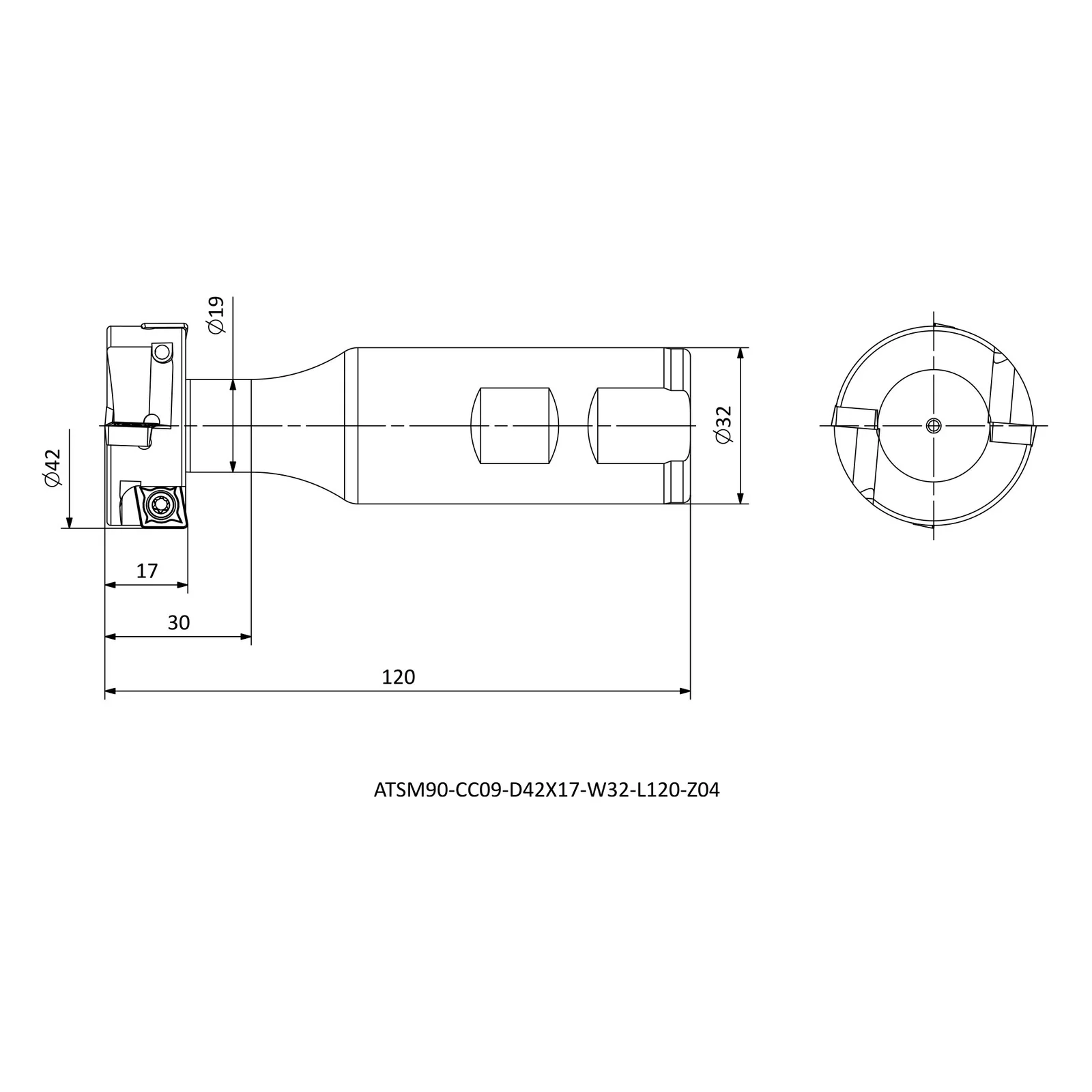

Specifications — ATSM90-CC09-D42X17-W32-L120-Z04

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Functional length (mm)
ATSM90-CC06-D17X8-W16-L85-Z02	R	17	16	85
ATSM90-CC06-D22X8-W20-L83-Z04	R	22	20	83
ATSM90-CC06-D32X8-W25-L100-Z04	R	32	25	100
ATSM90-CC06-D28X8-W20-L66-Z04	R	28	20	66
ATSM90-CC06-D45.5X8-W25-L100-Z06	R	45.5	25	100
ATSM90-CC06-D63X8-W32-L125-Z08	R	63	32	125
ATSM90-CC06-D18X9-W16-L90-Z02	R	18	16	90
ATSM90-CC06-D20X9-W16-L85-Z04	R	20	16	85
ATSM90-CC06-D23X10-W20-L90-Z04	R	23	20	90
ATSM90-CC06-D32X10-W25-L100-Z04	R	32	25	100
ATSM90-CC06-D45X10-W32-L120-Z06	R	45	32	120
ATSM90-CC06-D25X11-W25-L100-Z04	R	25	25	100
ATSM90-CC09-D30X12-W25-L100-Z04	R	30	25	100
ATSM90-CC09-D32X12-W25-L100-Z02	R	32	25	100
ATSM90-CC09-D32X12-W25-L100-Z04	R	32	25	100
ATSM90-CC09-D32X14-W25-L100-Z04	R	32	25	100
ATSM90-CC09-D37X16-W32-L120-Z04	R	37	32	120
ATSM90-CC09-D42X17-W32-L120-Z04	R	42	32	120
ATSM90-CC12-D47X20-W32-L120-Z04	R	47	32	120
ATSM90-CC12-D52X21-W32-L120-Z04	R	52	32	120
ATSM90-CC12-D50X22-W32-L120-Z04	R	50	32	120
ATSM90-CC12-D55X22-W32-L120-Z04	R	55	32	120
ATSM90-CC09-D40X17-W32-L120-Z04-H	R	40	32	120
