Tool Holders / T Slot Milling

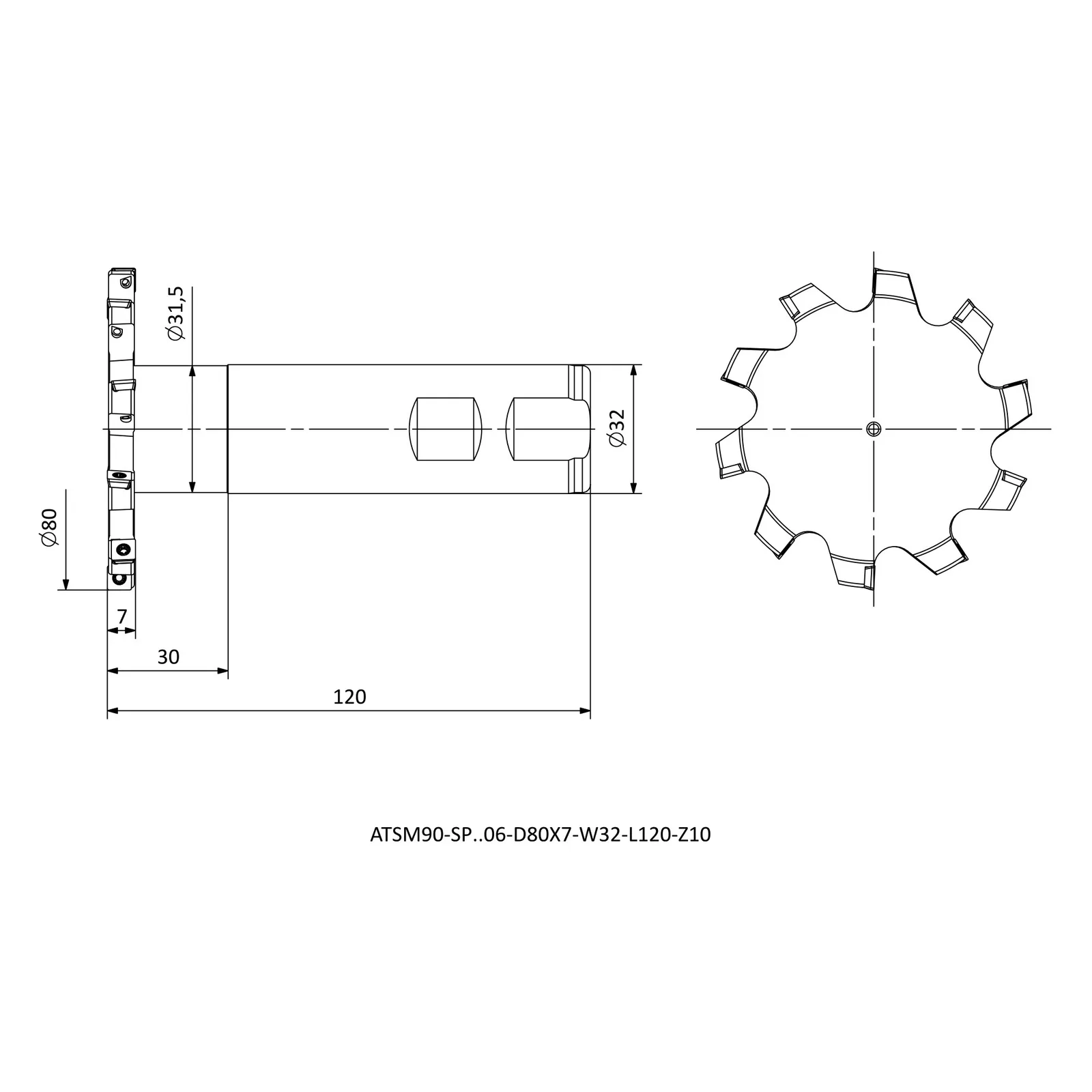

ATSM90-SP..06-D80X7-W32-L120-Z10
ATSM90-SP series · see all 9 sizes
Insert compatibility
This size is built for the insert designation SPMG 060204 (as listed in the catalogue data).
Specifications — ATSM90-SP..06-D80X7-W32-L120-Z10
| Insert Code | Insert designation | SPMG 060204 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 80 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 120 |
| LH | Head length (mm) | 30 |
| ZEFP ETKILI | Effective cutting edges | 5 |
| CW | Cutting width (mm) | 7 |
| DN | Neck diameter (mm) | 32 |
| ZEFP Toplam | Total cutting edges | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
