Tool Holders / T Slot Milling
ATSM90-SPGT0502-D63X6-W32-L125-Z10
ATSM90-SP series · see all 9 sizes
Insert compatibility
This size is built for the insert designation SPGT 050204 (as listed in the catalogue data).

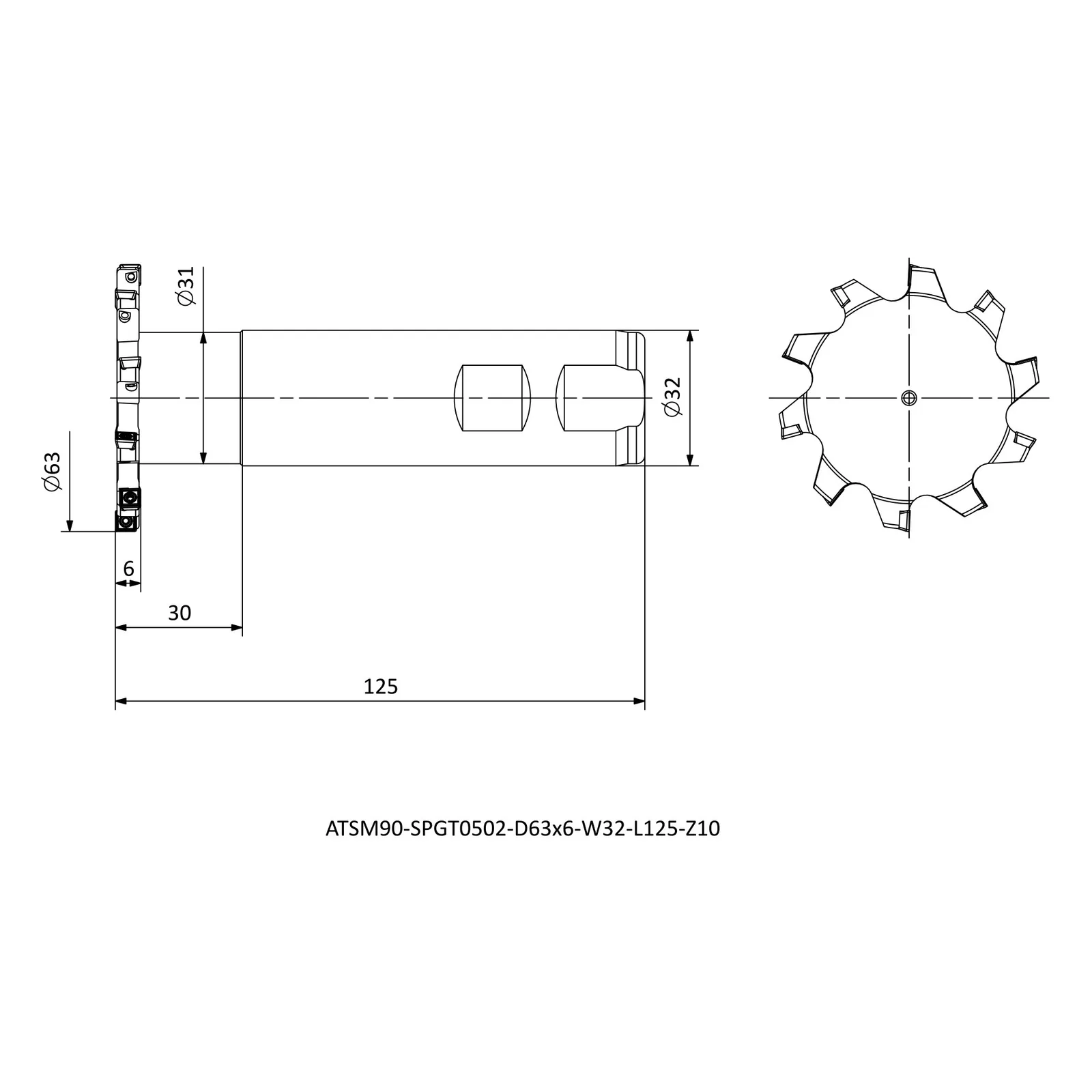

Specifications — ATSM90-SPGT0502-D63X6-W32-L125-Z10
| Insert Code | Insert designation | SPGT 050204 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 63 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 125 |
| LH | Head length (mm) | 30 |
| ZEFP ETKILI | Effective cutting edges | 5 |
| CW | Cutting width (mm) | 6 |
| DN | Neck diameter (mm) | 31 |
| ZEFP Toplam | Total cutting edges | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in ATSM90-SP
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| ATSM90-SP..05-D22.5X5-W25-L100-Z04 | R | 22.5 | 25 | 100 |
| ATSM90-SP..05-D25X5-W25-L100-Z04 | R | 25 | 25 | 100 |
| ATSM90-SP..05-D30X5-W25-L100-Z04 | R | 30 | 25 | 100 |
| ATSM90-SPGT0502-D63X6-W32-L125-Z10 | R | 63 | 32 | 125 |
| ATSM90-SPGT0904-D32X14-W32-L120-Z04-H | R | 32 | 32 | 120 |
| ATSM90-SPGT0904-D37X16-W32-L120-Z04-H | R | 37 | 32 | 120 |
| ATSM90-SPGT0904-D42X17-W32-L120-Z04-H | R | 42 | 32 | 120 |
| ATSM90-SPGT1104-D47X20-W32-L120-Z04-H | R | 47 | 32 | 120 |
| ATSM90-SP..06-D80X7-W32-L120-Z10 | R | 80 | 32 | 120 |
