Tool Holders / T Slot Milling
ATSMR-RD0702-D25-W16-L90-Z03
ATSMR-RD series · see all 9 sizes
Insert compatibility
This size is built for the insert designation RD.. 0702 (as listed in the catalogue data).

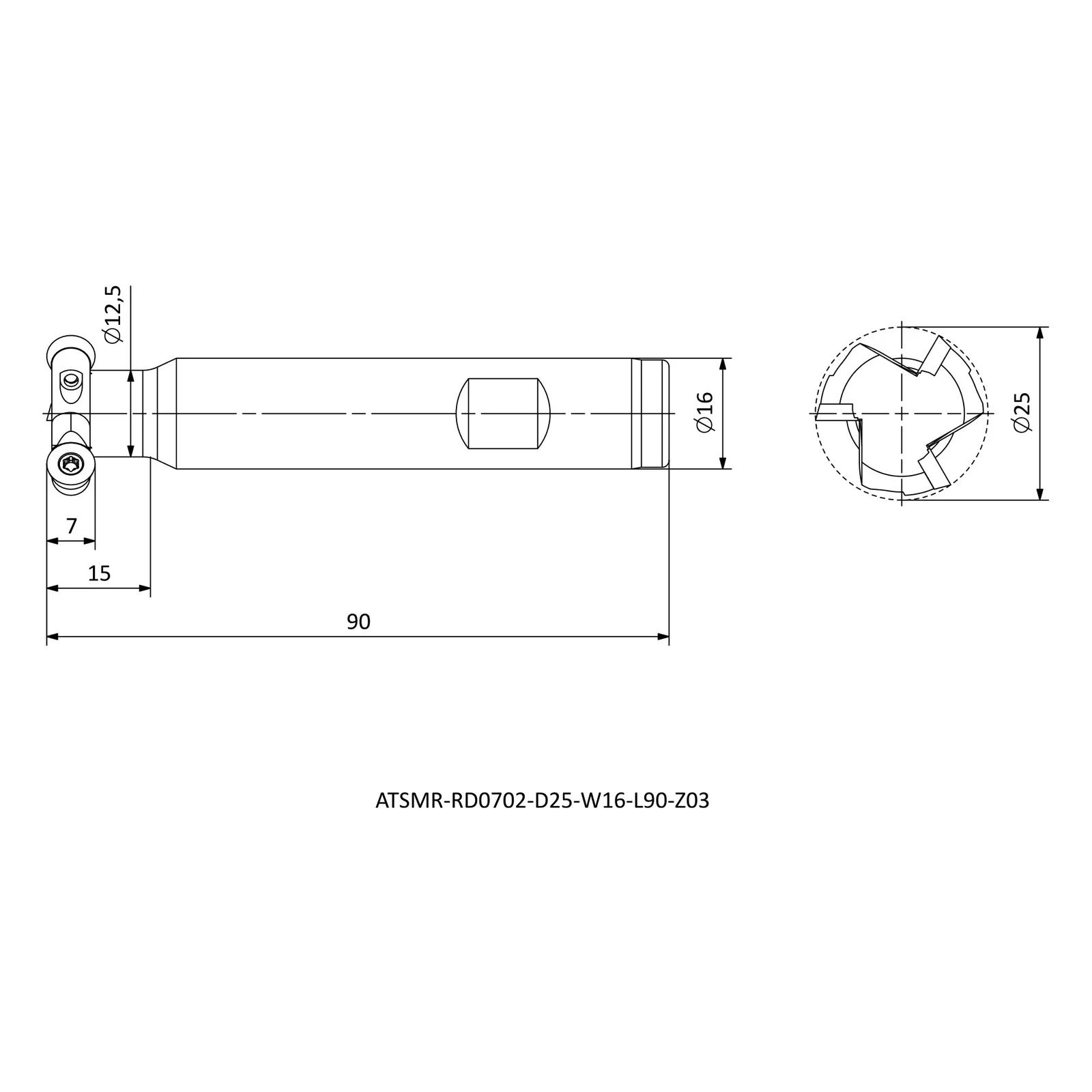

Specifications — ATSMR-RD0702-D25-W16-L90-Z03
| Insert Code | Insert designation | RD.. 0702 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 90 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 12 |
| ZEFP | Effective cutting edges | 3 |
| CW | Cutting width (mm) | 7 |
| DN | Neck diameter (mm) | 15 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in ATSMR-RD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| ATSMR-RD12T3-D40-W32-L100-Z03 | R | 32 | 100 | 40 |
| ATSMR-RD0702-D17-W16-L90-Z02 | R | 16 | 90 | 17 |
| ATSMR-RD0702-D25-W16-L90-Z03 | R | 16 | 90 | 25 |
| ATSMR-RD0702-D35-W25-L100-Z05 | R | 25 | 100 | 35 |
| ATSMR-RD1003-D21-W25-L100-Z02 | R | 25 | 100 | 21 |
| ATSMR-RD1003-D80-W32-L165-Z06-H | R | 32 | 165 | 80 |
| ATSMR-RD12T3-D25-W25-L100-Z02 | R | 25 | 100 | 25 |
| ATSMR-RD12T3-D80-W32-L165-Z06-H | R | 32 | 165 | 80 |
| ATSMR-RD1604-D34-W32-L110-Z02 | R | 32 | 110 | 34 |
