Tool Holders / T-System Boring Bars
S40U TVUNR 16
TVUNR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation VNM. 1604 (as listed in the catalogue data).

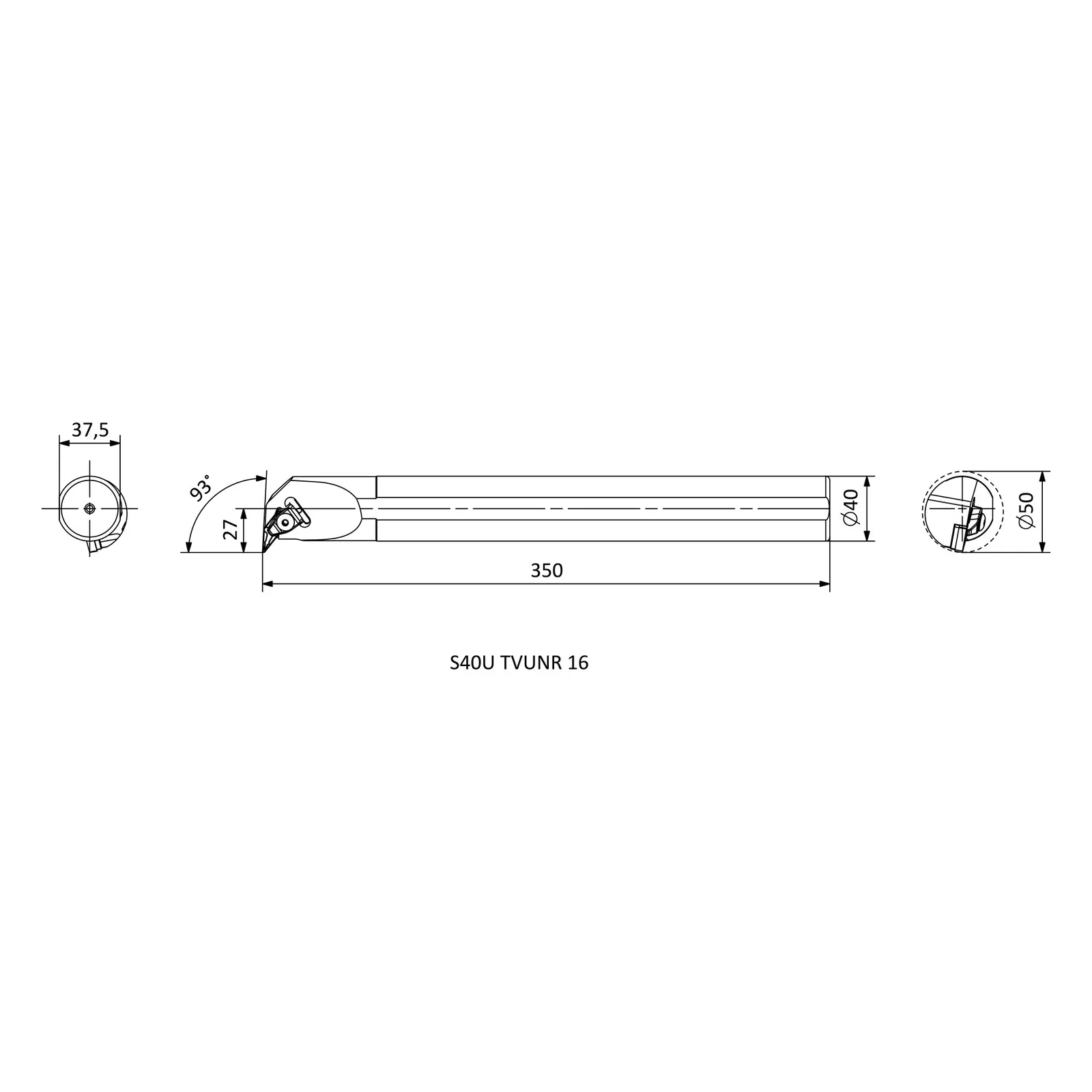

Specifications — S40U TVUNR 16
| Insert Code | Insert designation | VNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 350 |
| WF | Functional width (mm) | 27 |
| H | Shank height (mm) | 37.5 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in TVUNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S25S TVUNL 16 | L | 25 | 250 | 20 |
| S25S TVUNR 16 | R | 25 | 250 | 20 |
| S32T TVUNL 16 | L | 32 | 300 | 22 |
| S32T TVUNR 16 | R | 32 | 300 | 22 |
| S40U TVUNL 16 | L | 40 | 350 | 27 |
| S40U TVUNR 16 | R | 40 | 350 | 27 |
