Tool Holders / T-System Boring Bars
A40T TWLNR 08
TWLNR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation WNM. 0804 (as listed in the catalogue data).

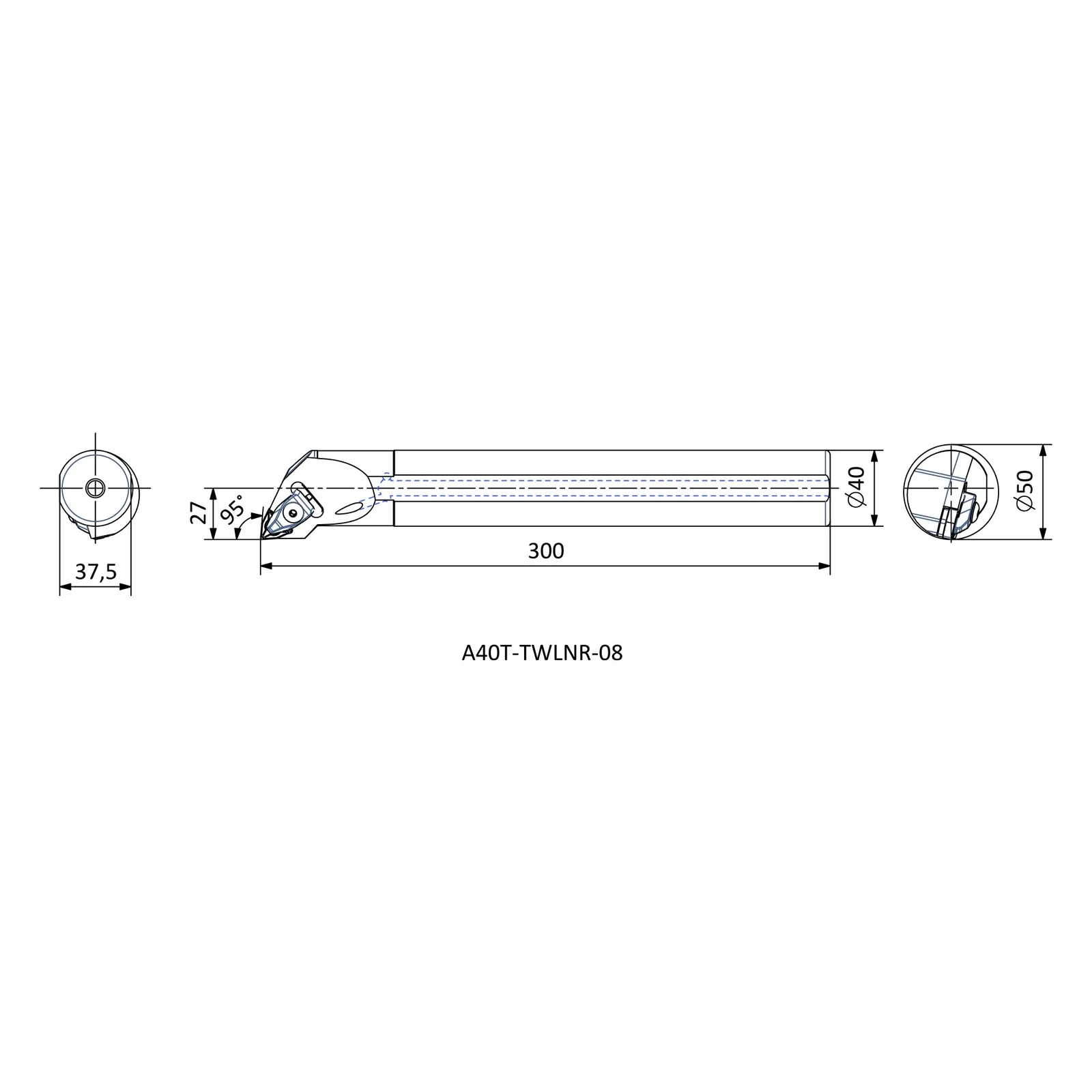

Specifications — A40T TWLNR 08
| Insert Code | Insert designation | WNM. 0804.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 300 |
| WF | Functional width (mm) | 27 |
| H | Shank height (mm) | 37.5 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in TWLNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| A32S TWLNL 08 | L | 32 | 250 | 22 |
| A32S TWLNR 08 | R | 32 | 250 | 22 |
| S25S TWLNL 06 | L | 25 | 250 | 17 |
| S25S TWLNR 06 | R | 25 | 250 | 17 |
| S32T TWLNL 06 | L | 32 | 300 | 22 |
| S32T TWLNR 06 | R | 32 | 300 | 22 |
| S25S TWLNL 08 | L | 25 | 250 | 17 |
| S25S TWLNR 08 | R | 25 | 250 | 17 |
| S32T TWLNL 08 | L | 32 | 300 | 22 |
| S32T TWLNR 08 | R | 32 | 300 | 22 |
| S40U TWLNL 08 | L | 40 | 350 | 27 |
| S40U TWLNR 08 | R | 40 | 350 | 27 |
| S50V TWLNL 08 | L | 50 | 400 | 35 |
| S50V TWLNR 08 | R | 50 | 400 | 35 |
| A40T TWLNL 08 | L | 40 | 300 | 27 |
| A40T TWLNR 08 | R | 40 | 300 | 27 |
| A50U TWLNL 08 | L | 50 | 350 | 35 |
| A50U TWLNR 08 | R | 50 | 350 | 35 |
