Tool Holders / T-System Boring Bars
S50V TWLNL 08
TWLNR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation WNM. 0804 (as listed in the catalogue data).

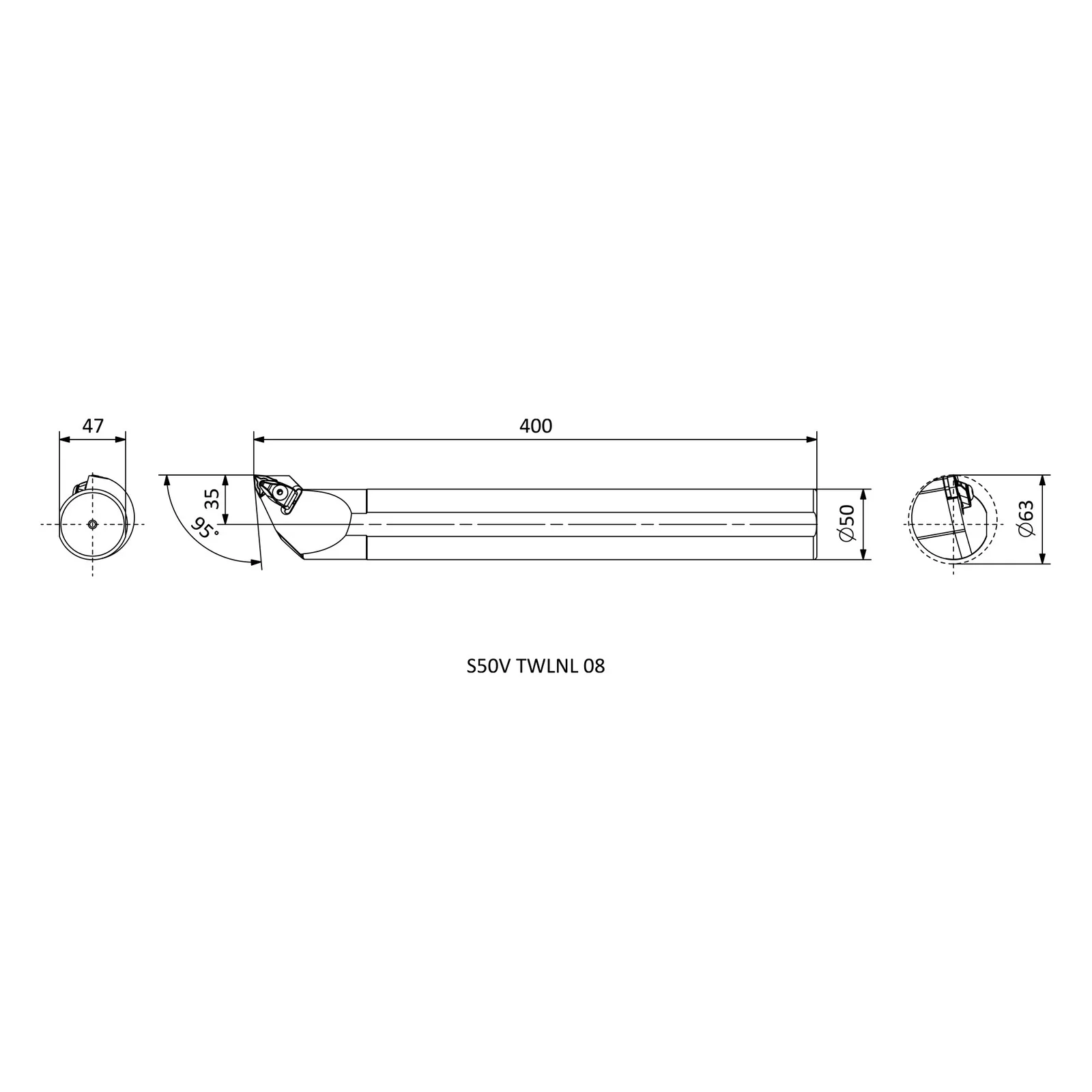

Specifications — S50V TWLNL 08
| Insert Code | Insert designation | WNM. 0804.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 50 |
| LF | Functional length (mm) | 400 |
| WF | Functional width (mm) | 35 |
| H | Shank height (mm) | 47 |
| D min | Minimum working diameter (mm) | ≥63 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in TWLNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| A32S TWLNL 08 | L | 32 | 250 | 22 |
