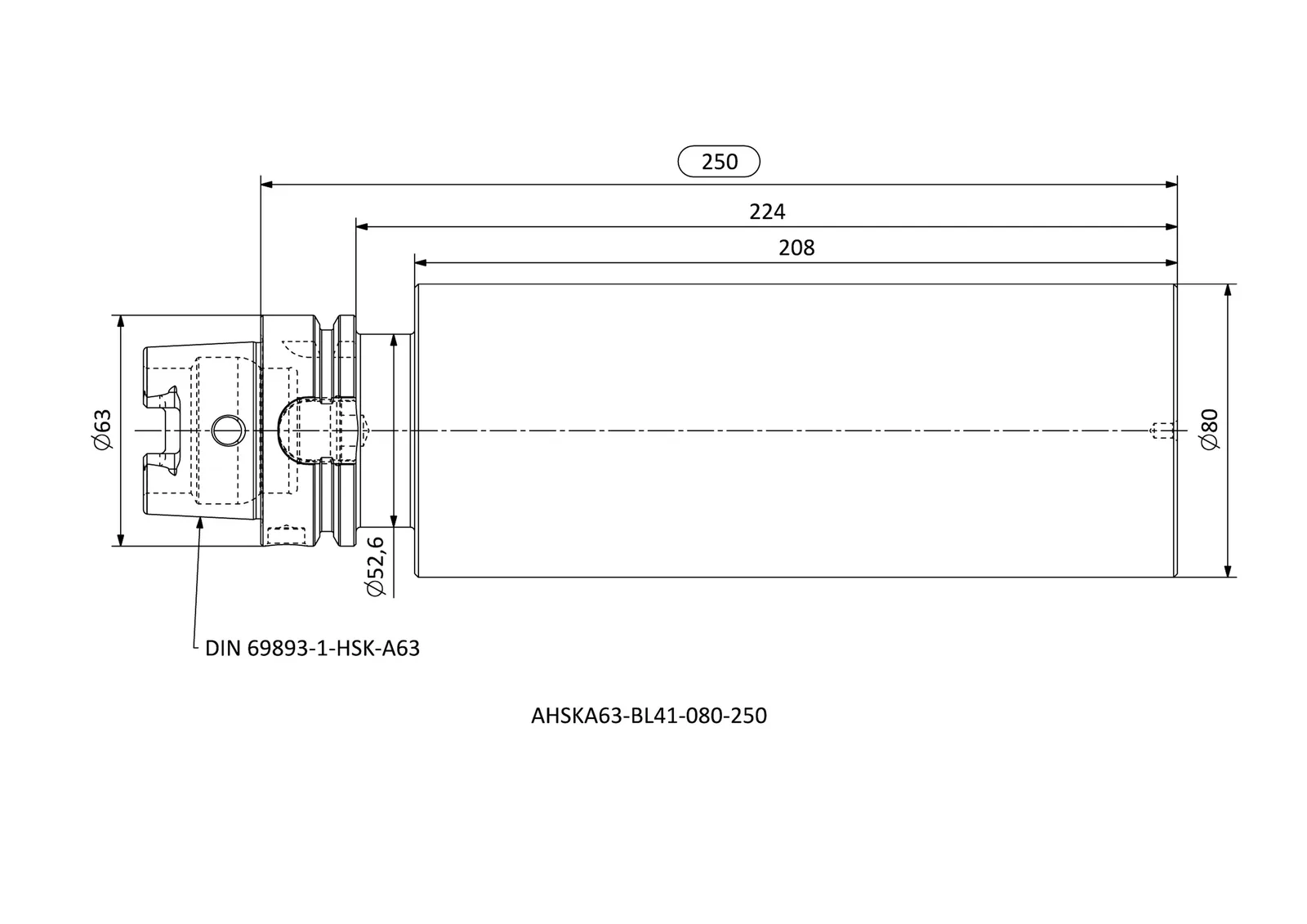

Specifications — AHSKA63-BL41-080-250
| BD | Bore diameter (mm) | 80 |
|---|---|---|
| LB | Body length (mm) | 208 |
| CONNECTION SIZE | Connection size | 63 |
| DCONMS | Connection diameter, machine side (mm) | 63 |
| BD2 | Second bore diameter (mm) | 52.6 |
| LPR | Protruding / projection length (mm) | 250 |
| LBX | Maximum body length (mm) | 224 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 13 sizes in AHSKA-BL41
| Product code | Bore diameter (mm) | Body length (mm) | Connection size | Connection diameter, machine side (mm) |
|---|---|---|---|---|
| AHSKA32-BL41-025-150 | 25 | – | 32 | 32 |
| AHSKA32-BL41-032-100 | 32 | 65 | – | 32 |
| AHSKA40-BL41-040-150 | 40 | 115 | – | 40 |
| AHSKA40-BL41-070-100 | 70 | 65 | 40 | 40 |
| AHSKA50-BL41-050-150 | 50 | 108 | 50 | 50 |
| AHSKA50-BL41-075-070 | 75 | 28 | – | 50 |
| AHSKA63-BL41-063-160 | 63 | 118 | – | 63 |
| AHSKA63-BL41-080-250 | 80 | 208 | 63 | 63 |
| AHSKA63-BL41-120-160 | 120 | 118 | – | 63 |
| AHSKA80-BL41-080-250 | 80 | 208 | 80 | 80 |
| AHSKA80-BL41-090-310 | 90 | 268 | – | 80 |
| AHSKA100-BL41-097-250 | 97 | 205 | 100 | 100 |
| AHSKA100-BL41-120-315 | 120 | 270 | – | 100 |
