Rotating Tools / ISO 12164-1 / HSK Milling Cutter Arbors For Screw-On Type Milling Cutters

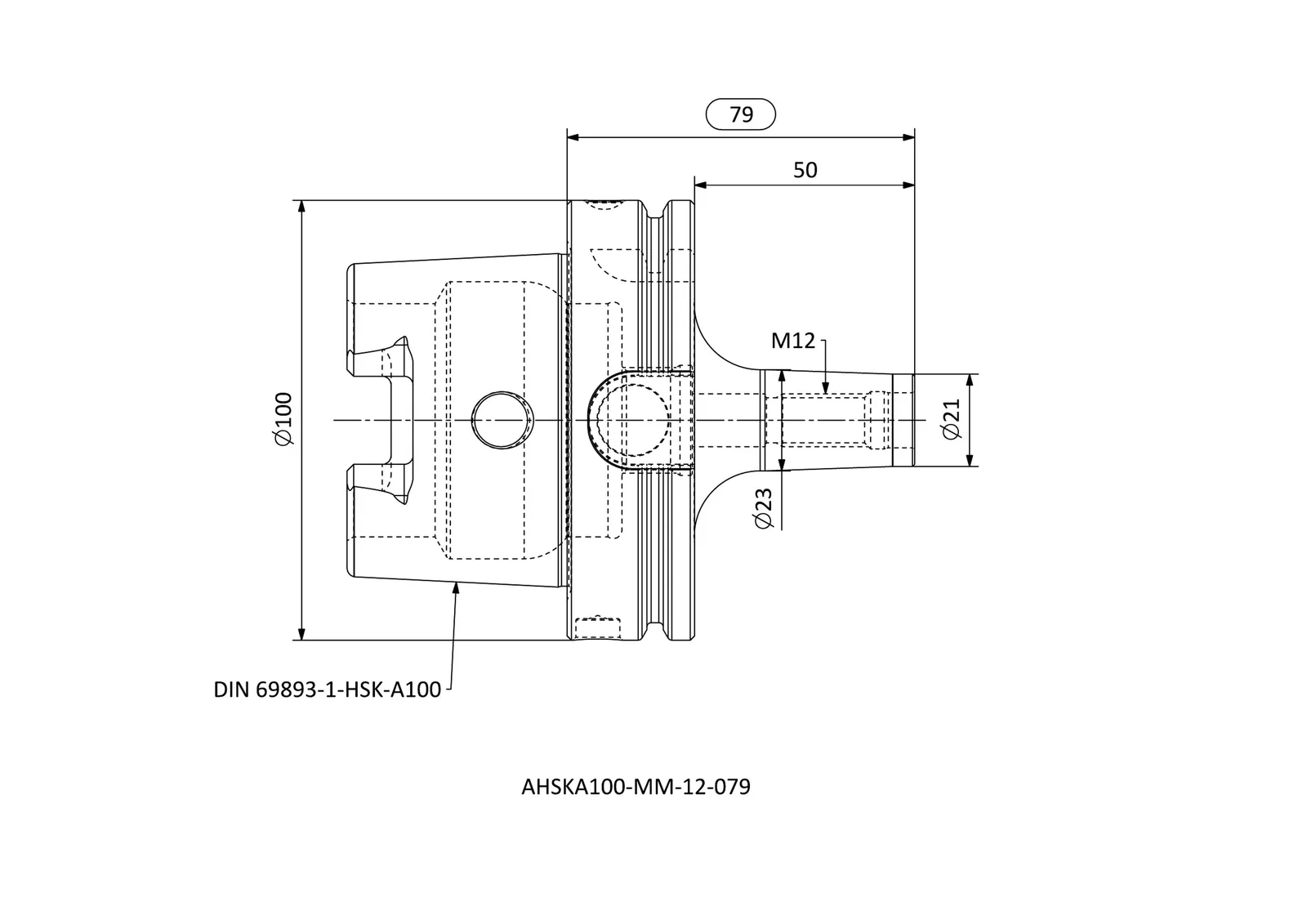

AHSKA100-MM-12-079

AHSK-MM series · see all 20 sizes

Specifications — AHSKA100-MM-12-079

BD	Bore diameter (mm)	21
LB	Body length (mm)	50
DCONMS	Connection diameter, machine side (mm)	100
THSZW	THSZW	M12
LPR	Protruding / projection length (mm)	79
BD2	Second bore diameter (mm)	23.5

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Bore diameter (mm)	Body length (mm)	Connection diameter, machine side (mm)	THSZW
AHSKA63-MM-10-076	18	50	63	M10
AHSKA63-MM-10-126	18	100	63	M10
AHSKA63-MM-10-176	18	150	63	M10
AHSKA63-MM-12-076	21	50	63	M12
AHSKA63-MM-12-101	21	75	63	M12
AHSKA63-MM-12-126	21	100	63	M12
AHSKA63-MM-12-176	21	150	63	M12
AHSKA63-MM-16-076	29	50	63	M16
