Rotating Tools / ISO 12164-1 / HSK Milling Cutter Arbors For Screw-On Type Milling Cutters

AHSKA63-MM-16-176

AHSK-MM series · see all 20 sizes

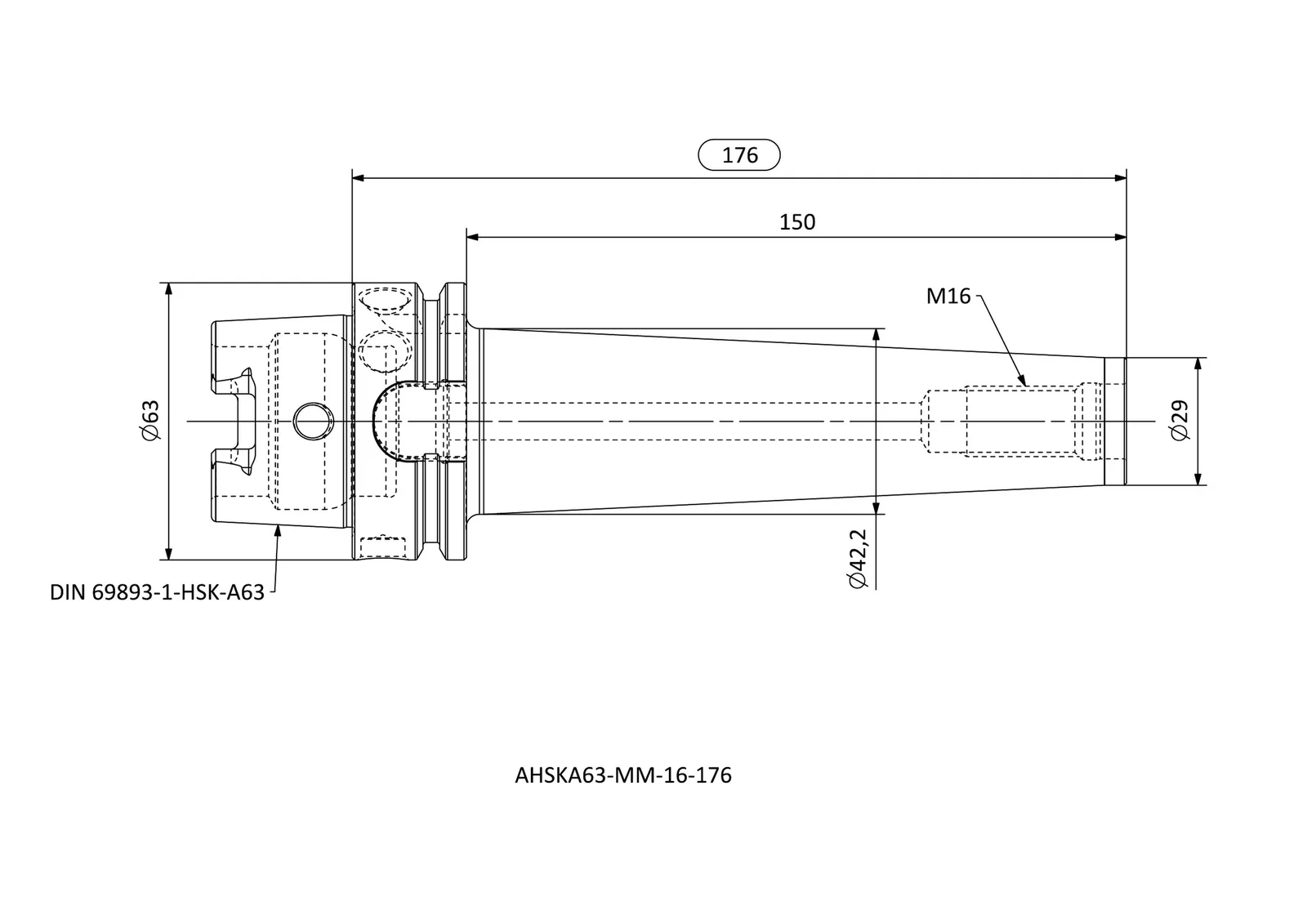

Specifications — AHSKA63-MM-16-176

BD	Bore diameter (mm)	29
LB	Body length (mm)	150
DCONMS	Connection diameter, machine side (mm)	63
THSZW	THSZW	M16
LPR	Protruding / projection length (mm)	176
BD2	Second bore diameter (mm)	42.5

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
