Rotating Tools / ISO 26623-1 / Polygonal Shank End Mill Holder

AC4-EM-06-050

AC-EM series · see all 55 sizes

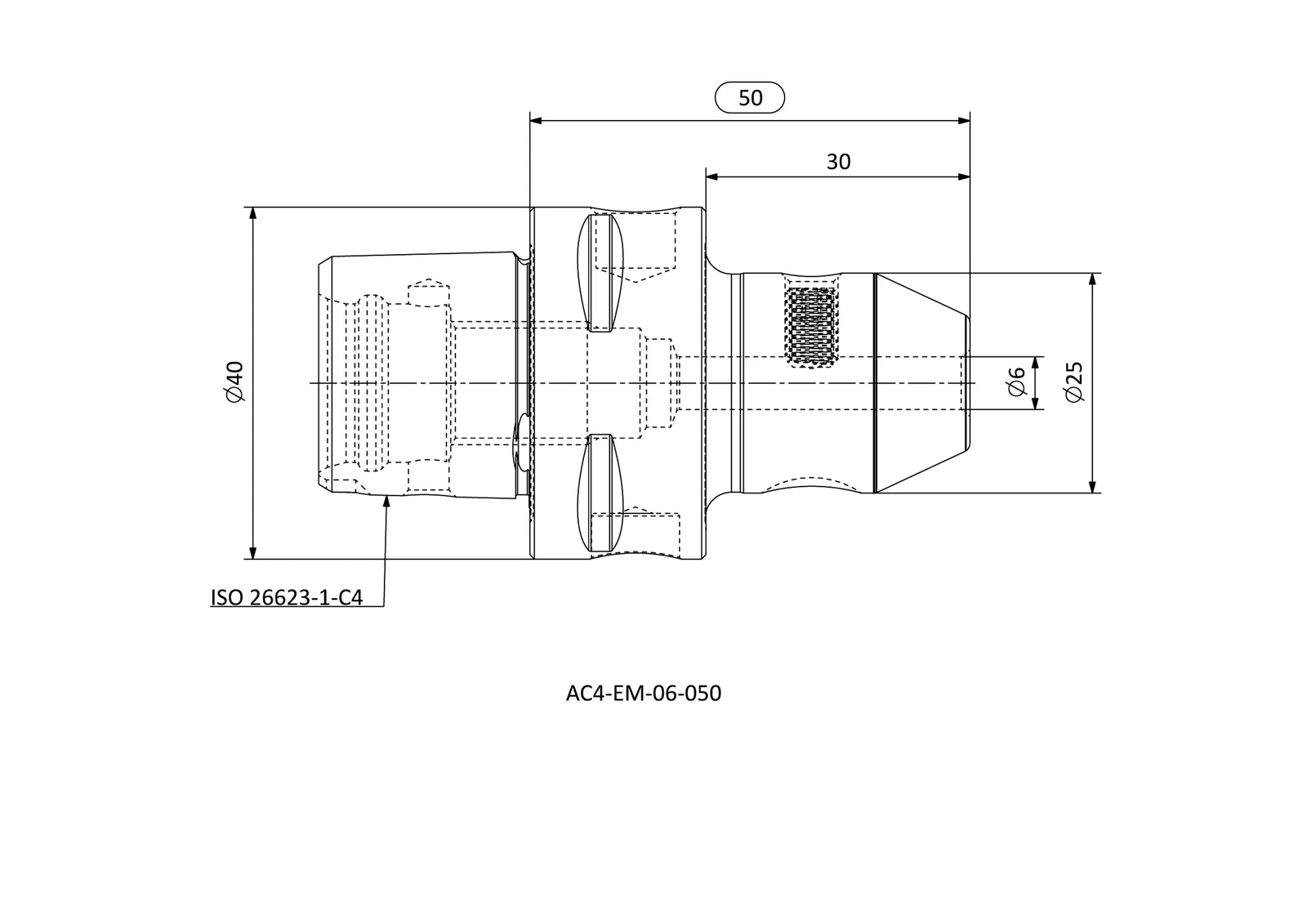

Specifications — AC4-EM-06-050

CRKS	Clamping / retention thread	30
BD	Bore diameter (mm)	50
LB	Body length (mm)	30
DCONMS	Connection diameter, machine side (mm)	40
DCONWS	Connection diameter, workpiece side (mm)	6
LPR	Protruding / projection length (mm)	50
KG	Weight (kg)	0.34

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
