Rotating Tools / ISO 26623-1 / Polygonal Shank End Mill Holder

AC8-EM-12-070

AC-EM series · see all 55 sizes

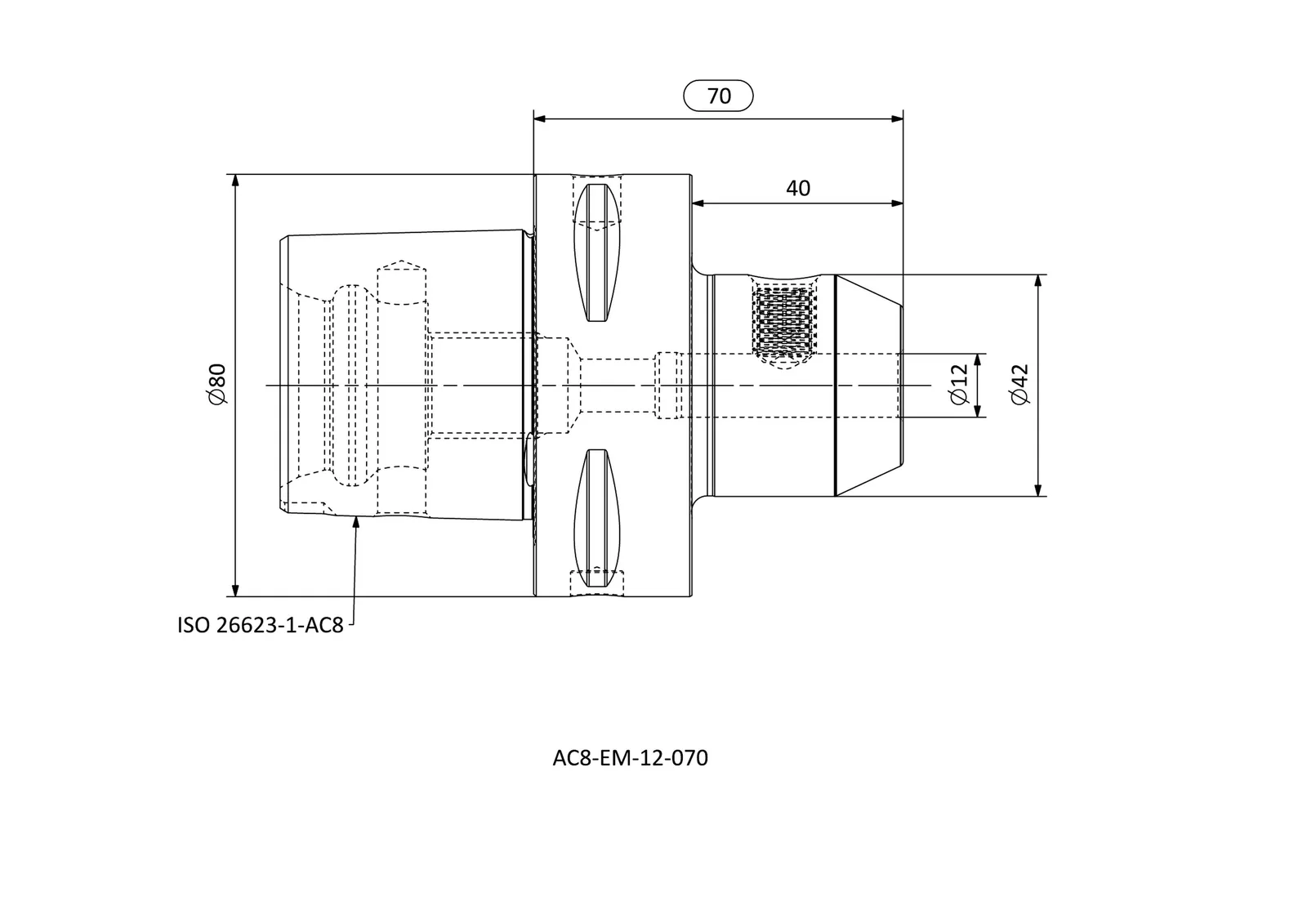

Specifications — AC8-EM-12-070

CRKS	Clamping / retention thread	M20
BD	Bore diameter (mm)	42
LB	Body length (mm)	40
DCONMS	Connection diameter, machine side (mm)	80
DCONWS	Connection diameter, workpiece side (mm)	12
LPR	Protruding / projection length (mm)	70

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Clamping / retention thread	Bore diameter (mm)	Body length (mm)	Connection diameter, machine side (mm)
AC3-EM-06-046	30	45	30	32
AC3-EM-08-046	30	45	30	32
AC3-EM-10-050	35	50	35	32
AC3-EM-12-055	40	55	40	32
AC4-EM-06-050	30	50	30	40
AC4-EM-08-050	30	50	30	40
AC4-EM-10-050	30	50	30	40
AC4-EM-12-055	35	55	35	40
AC4-EM-14-055	35	55	35	40
AC4-EM-16-060	40	60	40	40
AC5-EM-06-050	30	50	30	50
AC5-EM-08-050	30	50	30	50
AC5-EM-10-055	35	55	35	50
AC5-EM-12-060	40	60	40	50
AC5-EM-14-060	40	60	40	50
AC5-EM-16-060	40	60	40	50
AC5-EM-18-060	40	60	40	50
AC5-EM-20-060	40	60	40	50
AC5-EM-25-080	60	80	60	50
AC6-EM-06-055	M20	25	33	63
AC6-EM-06-075	53	75	53	63
AC6-EM-06-100	78	100	78	63
AC6-EM-08-055	33	55	33	63
AC6-EM-08-075	53	75	53	63
AC6-EM-08-100	78	100	78	63
AC6-EM-10-060	35	60	35	63
AC6-EM-10-075	53	75	53	63
AC6-EM-10-100	78	100	78	63
AC6-EM-12-065	43	65	43	63
AC6-EM-12-080	M20	42	58	63
AC6-EM-12-100	78	100	78	63
AC6-EM-14-065	43	65	43	63
AC6-EM-14-100	78	100	78	63
AC6-EM-16-065	43	65	43	63
AC6-EM-16-085	63	85	63	63
AC6-EM-16-100	M20	48	78	63
AC6-EM-18-065	M20	50	43	63
AC6-EM-18-100	M20	50	78	63
AC6-EM-20-065	M20	52	43	63
AC6-EM-20-100	M20	52	78	63
AC6-EM-25-080	M20	63	58	63
AC6-EM-32-090	M20	72	68	63
AC6-EM-40-100	M20	79	78	63
AC8-EM-06-070	M20	25	40	80
AC8-EM-08-070	M20	28	40	80
AC8-EM-10-070	M20	35	40	80
AC8-EM-12-070	M20	42	40	80
AC8-EM-14-070	M20	44	40	80
AC8-EM-16-070	M20	48	40	80
AC8-EM-18-070	M20	50	40	80
AC8-EM-20-070	M20	52	40	80
AC8-EM-25-090	M20	65	60	80
AC8-EM-32-100	M20	72	70	80
AC8-EM-40-110	M20	80	80	80
AC8-EM-50-120	M20	100	90	80
