Rotating Tools / ISO 26623-1 / Polygonal Shank Milling Cutter Arbors For Screw-On Type Milling Cutters
AC3-MM-16-040
AC-MM series · see all 28 sizes

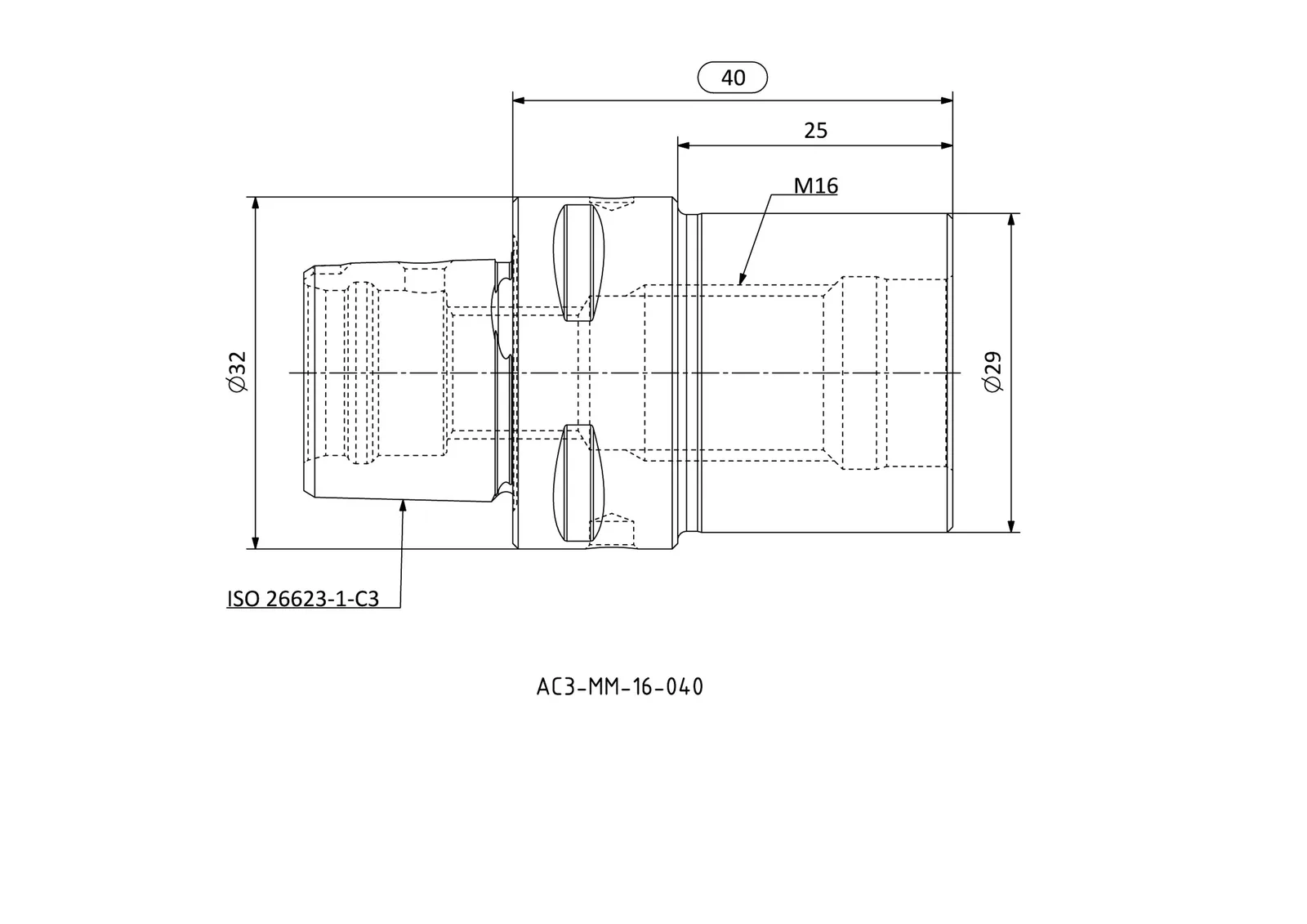

Specifications — AC3-MM-16-040
| BD | Bore diameter (mm) | 29 |
|---|---|---|
| LB | Body length (mm) | 25 |
| DCONMS | Connection diameter, machine side (mm) | 32 |
| THSZW | THSZW | M16 |
| BD2 | Second bore diameter (mm) | 0 |
| LPR | Protruding / projection length (mm) | 40 |
| KG | Weight (kg) | 0.2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
