ATUM 24XD2 SPGT 07T308

Name: ATUM 24XD2 SPGT 07T308
Brand: Axior
SKU: ATUM 24XD2 SPGT 07T308

ATUM XD2 SPGT series · see all 29 sizes

This size is built for the insert designation SPGT 07T308 (as listed in the catalogue data).

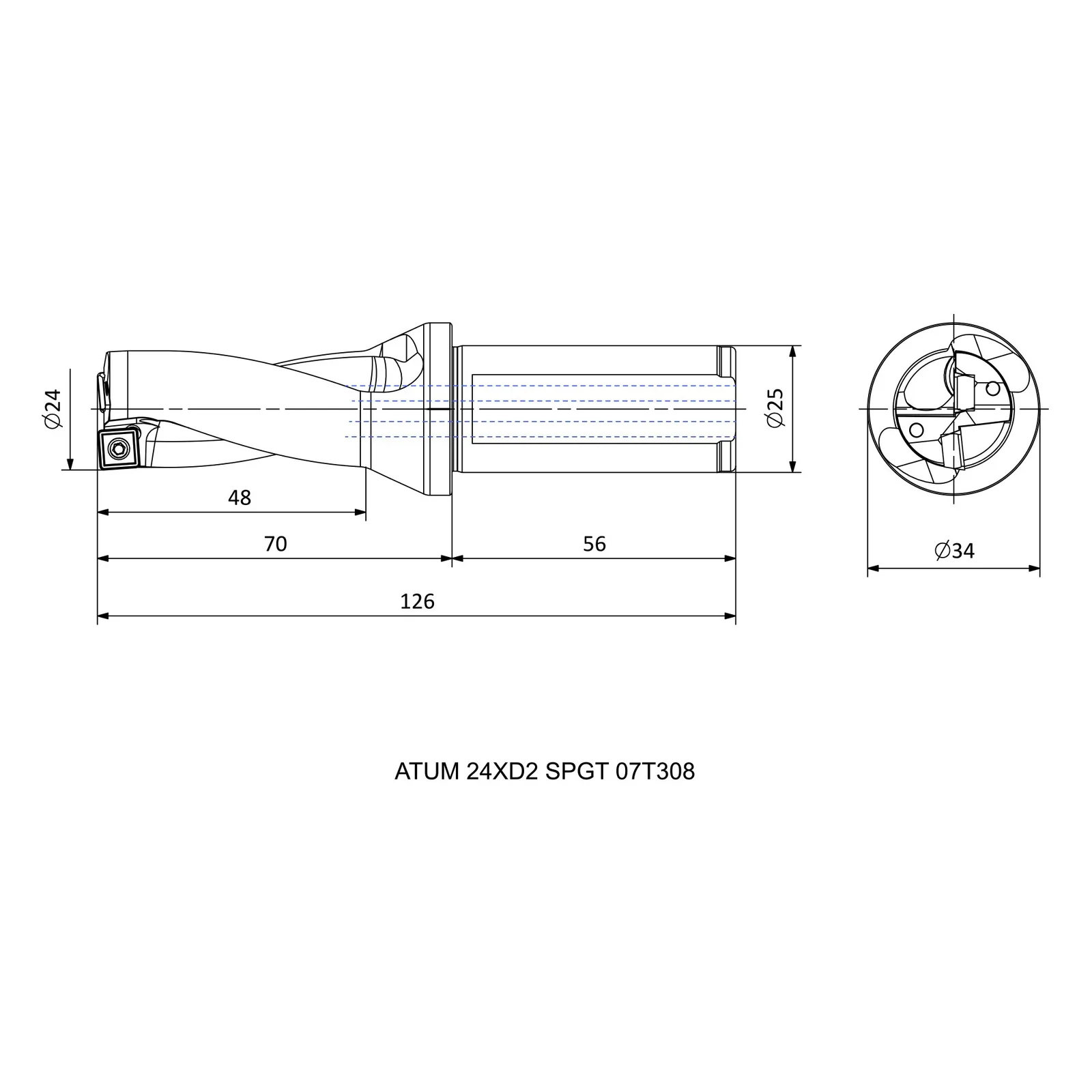

Specifications — ATUM 24XD2 SPGT 07T308

Insert Code	Insert designation	SPGT 07T308
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	24
DCON	Connection diameter (mm)	25
DCSFMS	Contact-face diameter, machine side (mm)	34
OAL	Overall length (mm)	126
LU	Usable length (mm)	48
LPR	Protruding / projection length (mm)	70
LS	Shank length (mm)	56
X max [mm]	Adjustment range, max (mm)	0.5
X min [mm]	Adjustment range, min (mm)	25

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
