ATUM 40XD2 SPGT 110408

Name: ATUM 40XD2 SPGT 110408
Brand: Axior
SKU: ATUM 40XD2 SPGT 110408

ATUM XD2 SPGT series · see all 29 sizes

This size is built for the insert designation SPGT 110408 (as listed in the catalogue data).

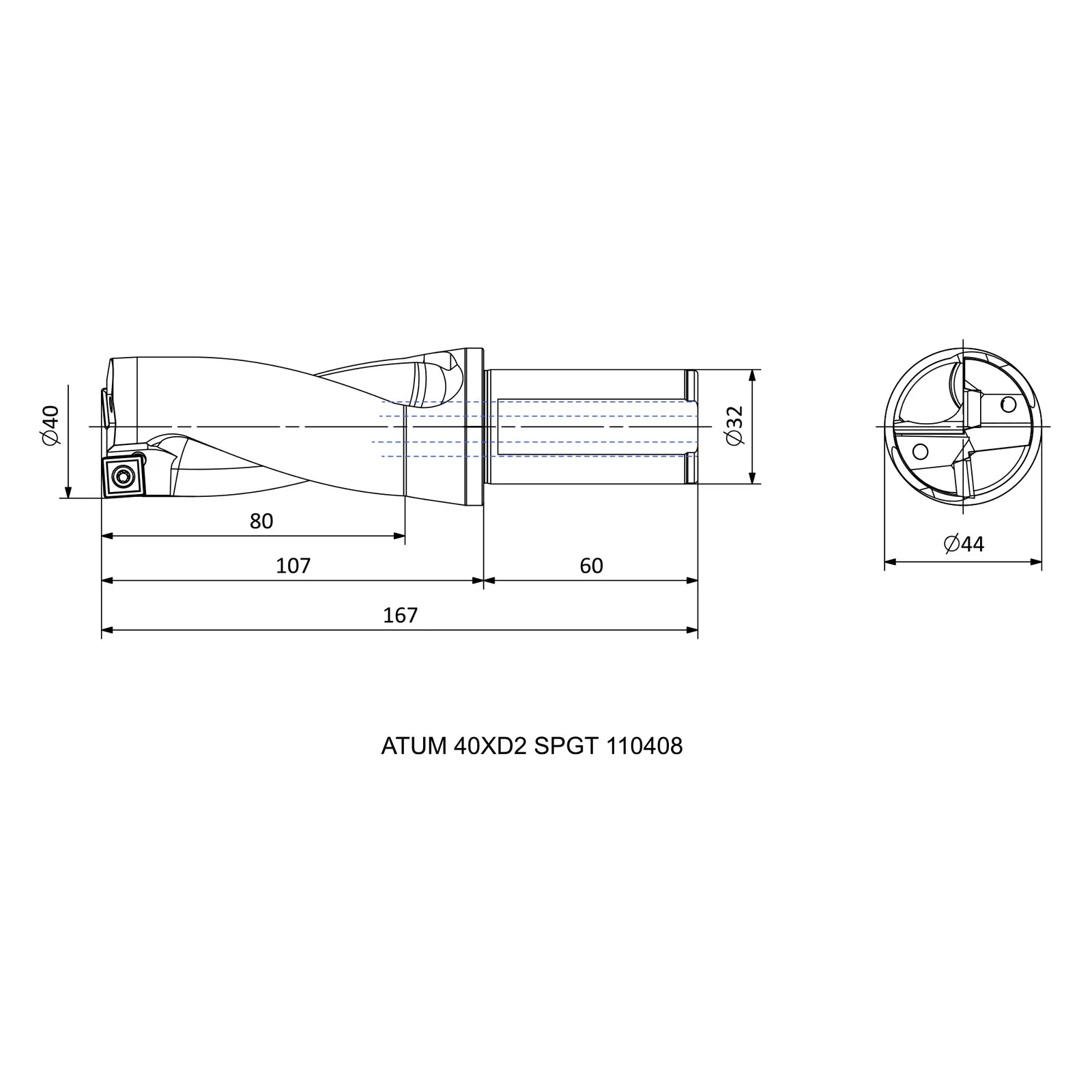

Specifications — ATUM 40XD2 SPGT 110408

Insert Code	Insert designation	SPGT 110408
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	40
DCON	Connection diameter (mm)	32
DCSFMS	Contact-face diameter, machine side (mm)	44
OAL	Overall length (mm)	167
LU	Usable length (mm)	80
LPR	Protruding / projection length (mm)	107
LS	Shank length (mm)	60
X max [mm]	Adjustment range, max (mm)	0
X min [mm]	Adjustment range, min (mm)	40

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 12.5XD2 SPGT 050204	R	12.5	20	25
ATUM 13XD2 SPGT 050204	R	13	20	25
ATUM 13.5XD2 SPGT 050204	R	13.5	20	25
ATUM 14XD2 SPGT 050204	R	14	20	25
ATUM 15XD2 SPGT 050204	R	15	20	25
ATUM 16XD2 SPGT 060204	R	16	25	34
ATUM 16.5XD2 SPGT 060204	R	16.5	25	34
ATUM 20XD2 SPGT 060204	R	20	25	34
ATUM 17XD2 SPGT 060204	R	17	25	34
ATUM 17.5XD2 SPGT 060204	R	17.5	25	34
ATUM 18XD2 SPGT 060204	R	18	25	34
ATUM 19XD2 SPGT 060204	R	19	25	34
ATUM 21XD2 SPGT 060204	R	21	25	34
ATUM 22XD2 SPGT 07T308	R	22	25	34
ATUM 22.5XD2 SPGT 07T308	R	22.5	25	34
ATUM 23XD2 SPGT 07T308	R	23	25	34
ATUM 23.5XD2 SPGT 07T308	R	23.5	25	34
ATUM 24XD2 SPGT 07T308	R	24	25	34
ATUM 24.5XD2 SPGT 07T308	R	24.5	25	34
ATUM 25XD2 SPGT 07T308	R	25	25	34
ATUM 26XD2 SPGT 07T308	R	26	25	34
ATUM 28XD2 SPGT 090408	R	28	25	34
ATUM 29XD2 SPGT 090408	R	29	25	34
ATUM 30XD2 SPGT 090408	R	30	32	44
ATUM 31XD2 SPGT 090408	R	31	32	44
ATUM 32XD2 SPGT 090408	R	32	32	44
ATUM 35XD2 SPGT 110408	R	35	32	44
ATUM 36XD2 SPGT 110408	R	36	32	44
ATUM 40XD2 SPGT 110408	R	40	32	44
