Tool Holders / Atum Drill

ATUM 20XD3 SO.. 073505

Name: ATUM 20XD3 SO.. 073505
Brand: Axior
SKU: ATUM 20XD3 SO.. 073505

ATUM XD3 SO series · see all 29 sizes

This size is built for the insert designation SOMX 073505 (as listed in the catalogue data).

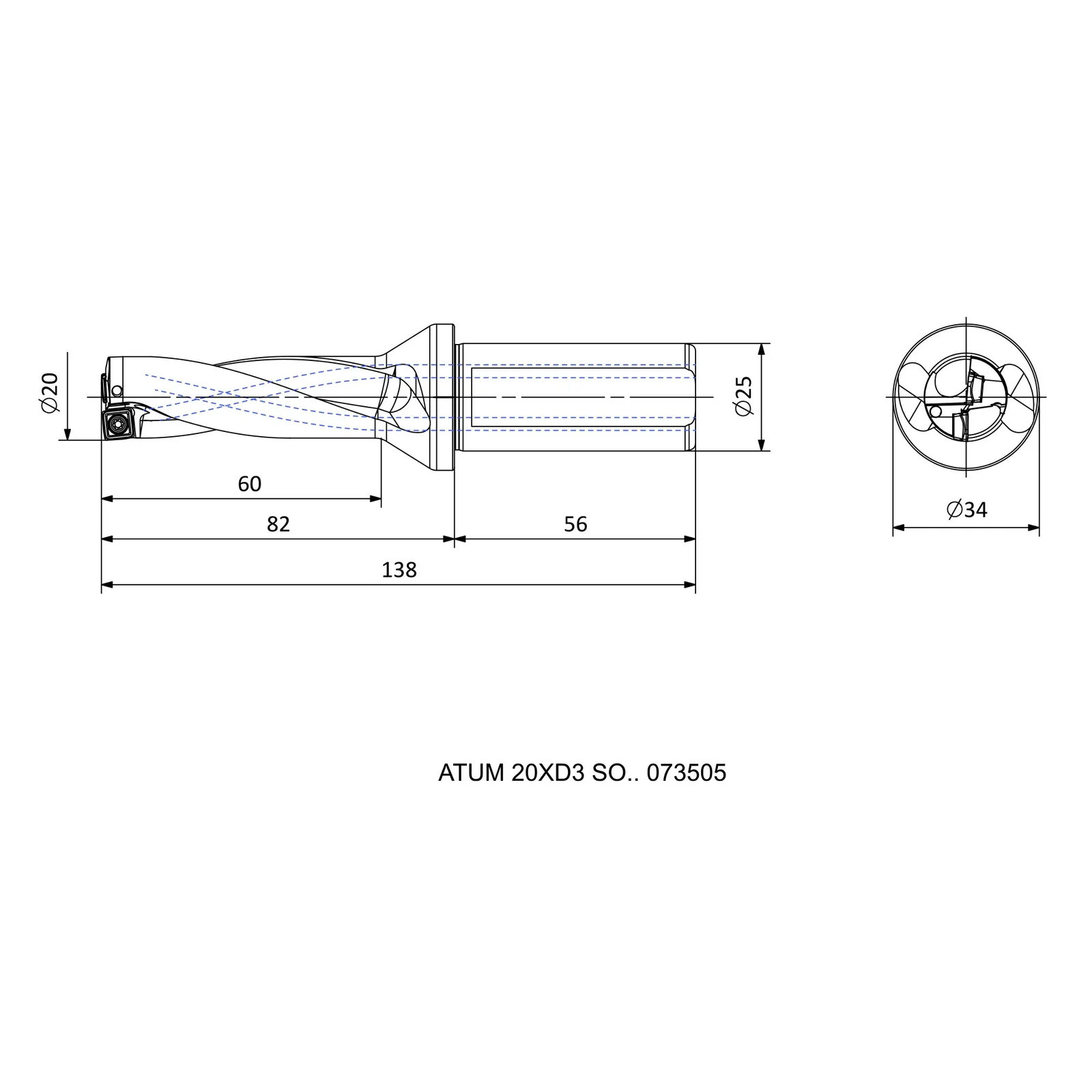

Specifications — ATUM 20XD3 SO.. 073505

Insert Code	Insert designation	SOMX 073505
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	20
DCON	Connection diameter (mm)	25
DCSFMS	Contact-face diameter, machine side (mm)	34
OAL	Overall length (mm)	138
LU	Usable length (mm)	60
LPR	Protruding / projection length (mm)	82
LS	Shank length (mm)	56
X max [mm]	Adjustment range, max (mm)	0.6
X min [mm]	Adjustment range, min (mm)	21.2

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 14XD3 SO.. 052704	R	14	20	25
ATUM 14.5XD3 SO.. 052704	R	14.5	20	25
ATUM 15XD3 SO.. 052704	R	15	20	25
ATUM 15.5XD3 SO.. 052704	R	15.5	25	34
ATUM 16XD3 SO.. 052704	R	16	25	34
ATUM 16.5XD3 SO.. 052704	R	16.5	25	34
ATUM 17XD3 SO.. 063005	R	17	25	34
ATUM 17.5XD3 SO.. 063005	R	17.5	25	34
ATUM 18XD3 SO.. 063005	R	18	25	34
ATUM 18.5XD3 SO.. 063005	R	18.5	25	34
ATUM 19XD3 SO.. 063005	R	19	25	34
ATUM 19.5XD3 SO.. 063005	R	19.5	25	34
ATUM 20XD3 SO.. 073505	R	20	25	34
ATUM 20.5XD3 SO.. 073505	R	20.5	25	34
ATUM 21XD3 SO.. 073505	R	21	25	34
ATUM 21.5XD3 SO.. 073505	R	21.5	25	34
ATUM 22XD3 SO.. 073505	R	22	25	34
ATUM 22.5XD3 SO.. 073505	R	22.5	25	34
ATUM 23XD3 SO.. 084005	R	23	25	34
ATUM 23.5XD3 SO.. 084005	R	23.5	25	34
ATUM 24XD3 SO.. 084005	R	24	25	34
ATUM 24.5XD3 SO.. 084005	R	24.5	25	34
ATUM 25XD3 SO.. 084005	R	25	25	34
ATUM 26XD3 SO.. 084005	R	26	25	34
ATUM 27XD3 SO.. 084005	R	27	25	34
ATUM 28XD3 SO.. 094506	R	28	25	34
ATUM 29XD3 SO.. 094506	R	29	25	34
ATUM 30XD3 SO.. 094506	R	30	32	44
ATUM 32XD3 SO.. 094506	R	32	32	44
