ATUM 40XD3 SO.. 120408

Name: ATUM 40XD3 SO.. 120408
Brand: Axior
SKU: ATUM 40XD3 SO.. 120408

ATUM XD3 SO series · see all 28 sizes

This size is built for the insert designation SO.. 120408 (as listed in the catalogue data).

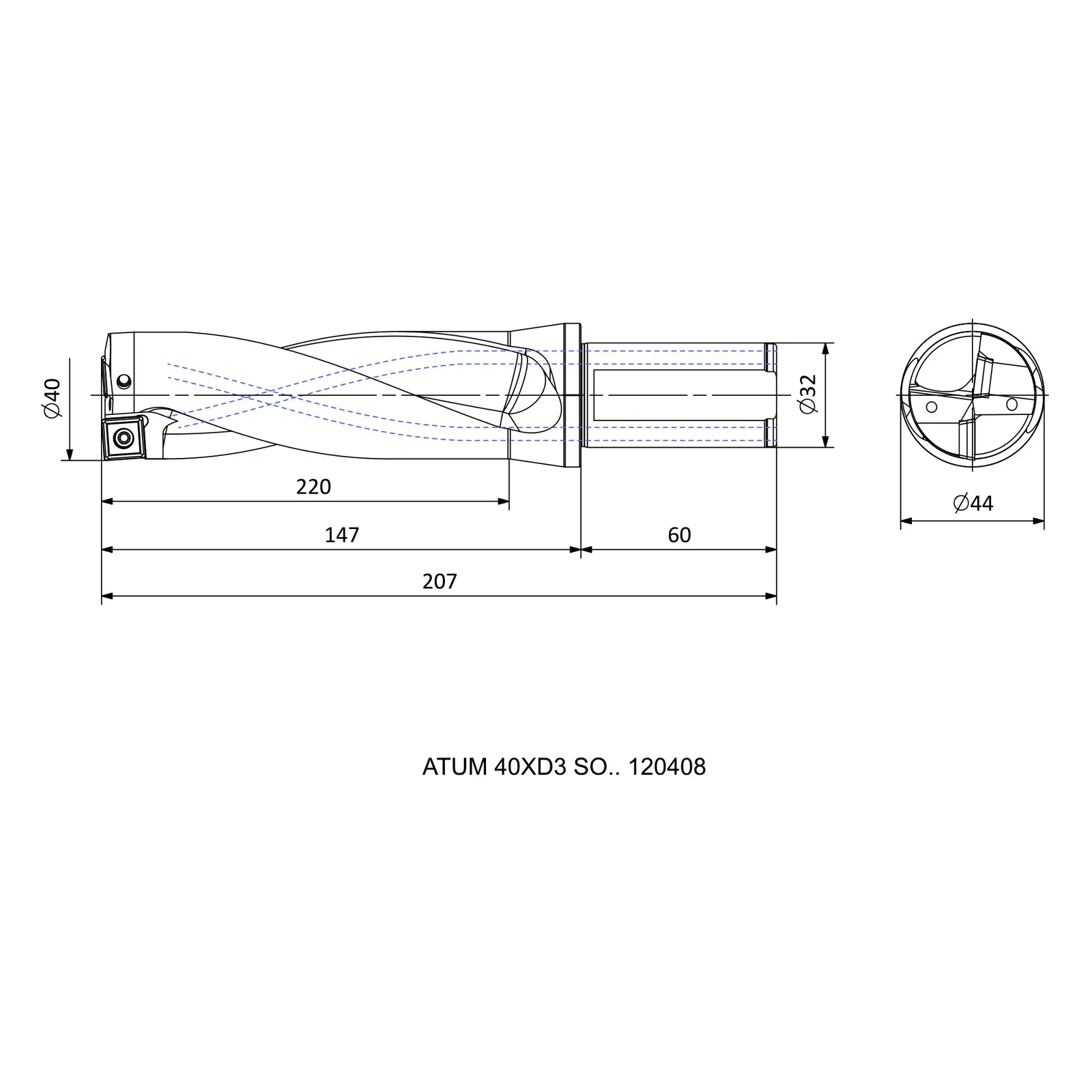

Specifications — ATUM 40XD3 SO.. 120408

Insert Code	Insert designation	SO.. 120408
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	40
DCON	Connection diameter (mm)	32
DCSFMS	Contact-face diameter, machine side (mm)	44
OAL	Overall length (mm)	207
LU	Usable length (mm)	120
LPR	Protruding / projection length (mm)	147
LS	Shank length (mm)	60
X max [mm]	Adjustment range, max (mm)	1.5
X min [mm]	Adjustment range, min (mm)	43

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 14XD3 SO.. 050204	R	14	20	25
ATUM 15XD3 SO.. 050204	R	15	20	25
ATUM 16XD3 SO.. 050204	R	16	25	34
ATUM 16.5XD3 SO.. 050204	R	16.5	25	34
ATUM 17XD3 SO.. 050204	R	17	25	34
ATUM 17.5XD3 SO.. 050204	R	17.5	25	34
ATUM 18XD3 SO.. 060304	R	18	25	34
ATUM 19XD3 SO.. 060304	R	19	25	34
ATUM 20XD3 SO.. 060304	R	20	25	34
ATUM 21XD3 SO.. 070305	R	21	25	34
ATUM 22XD3 SO.. 070305	R	22	25	34
ATUM 22.5XD3 SO.. 070305	R	22.5	25	34
ATUM 23XD3 SO.. 070305	R	23	25	34
ATUM 24XD3 SO.. 070305	R	24	25	34
ATUM 25XD3 SO.. 09T306	R	25	25	34
ATUM 26XD3 SO.. 09T306	R	26	25	34
ATUM 27XD3 SO.. 09T306	R	27	25	34
ATUM 29XD3 SO.. 09T306	R	29	25	34
ATUM 30XD3 SO.. 09T306	R	30	32	44
ATUM 31XD3 SO.. 09T306	R	31	32	44
ATUM 33XD3 SO.. 09T306	R	33	32	44
ATUM 35XD3 SO.. 120408	R	35	32	44
ATUM 36XD3 SO.. 120408	R	36	32	44
ATUM 37XD3 SO.. 120408	R	37	32	44
ATUM 38XD3 SO.. 120408	R	38	32	44
ATUM 39XD3 SO.. 120408	R	39	32	44
ATUM 40XD3 SO.. 120408	R	40	32	44
ATUM 43XD3 SO.. 120408	R	43	32	44
