Tool Holders / Atum Drill
ATUM 17.5XD3 SOMT 060204
ATUM XD3 SOMT series · see all 40 sizes
Insert compatibility
This size is built for the insert designation SOMT 060204 (as listed in the catalogue data).

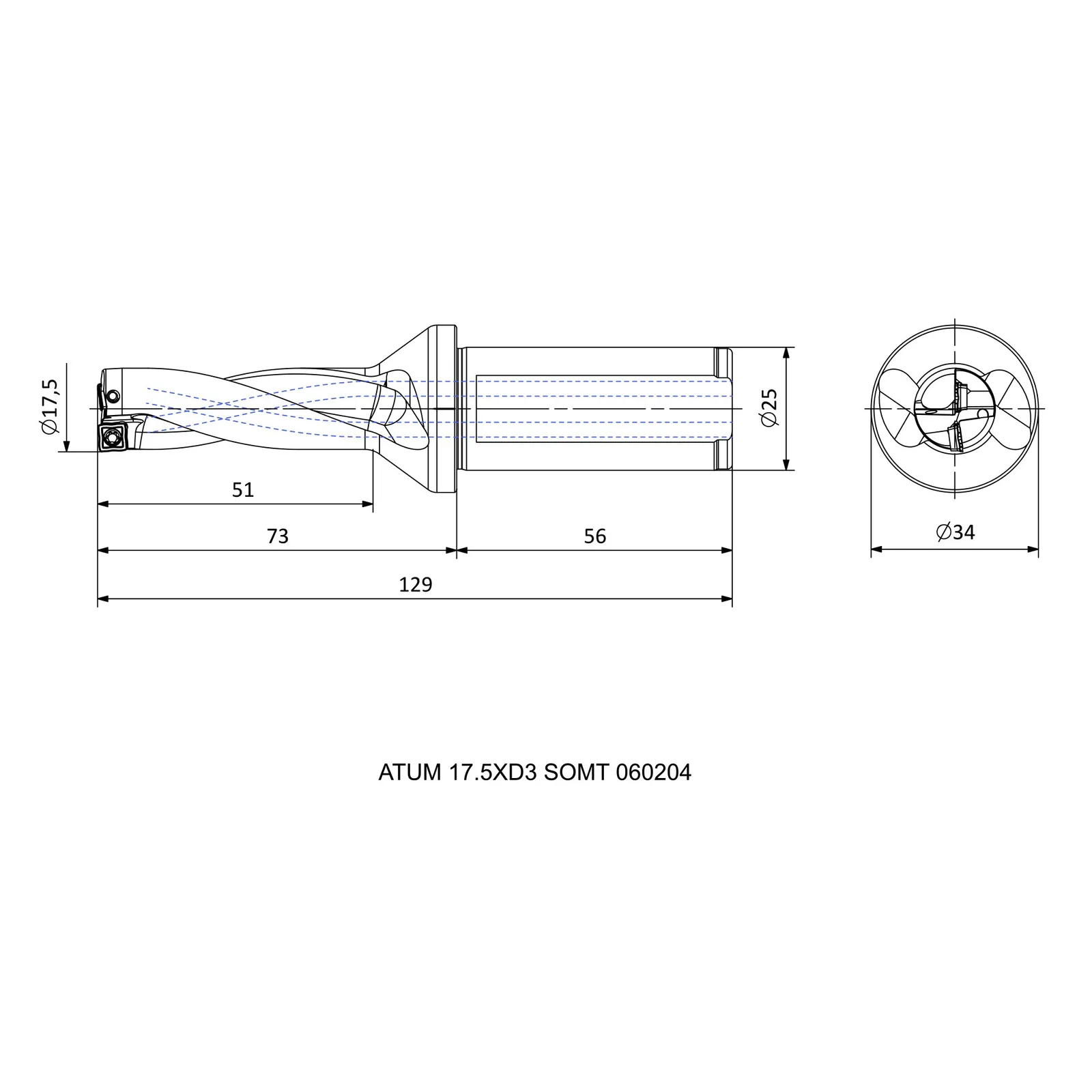

Specifications — ATUM 17.5XD3 SOMT 060204
| Insert Code | Insert designation | SOMT 060204 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 17.5 |
| DCON | Connection diameter (mm) | 25 |
| DCSFMS | Contact-face diameter, machine side (mm) | 34 |
| OAL | Overall length (mm) | 129 |
| LU | Usable length (mm) | 51 |
| LPR | Protruding / projection length (mm) | 73 |
| LS | Shank length (mm) | 56 |
| X max [mm] | Adjustment range, max (mm) | 0.4 |
| X min [mm] | Adjustment range, min (mm) | 18.3 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
