ATUM 26XD3 SOMT 08T306

Name: ATUM 26XD3 SOMT 08T306
Brand: Axior
SKU: ATUM 26XD3 SOMT 08T306

ATUM XD3 SOMT series · see all 40 sizes

This size is built for the insert designation SOMT 08T306 (as listed in the catalogue data).

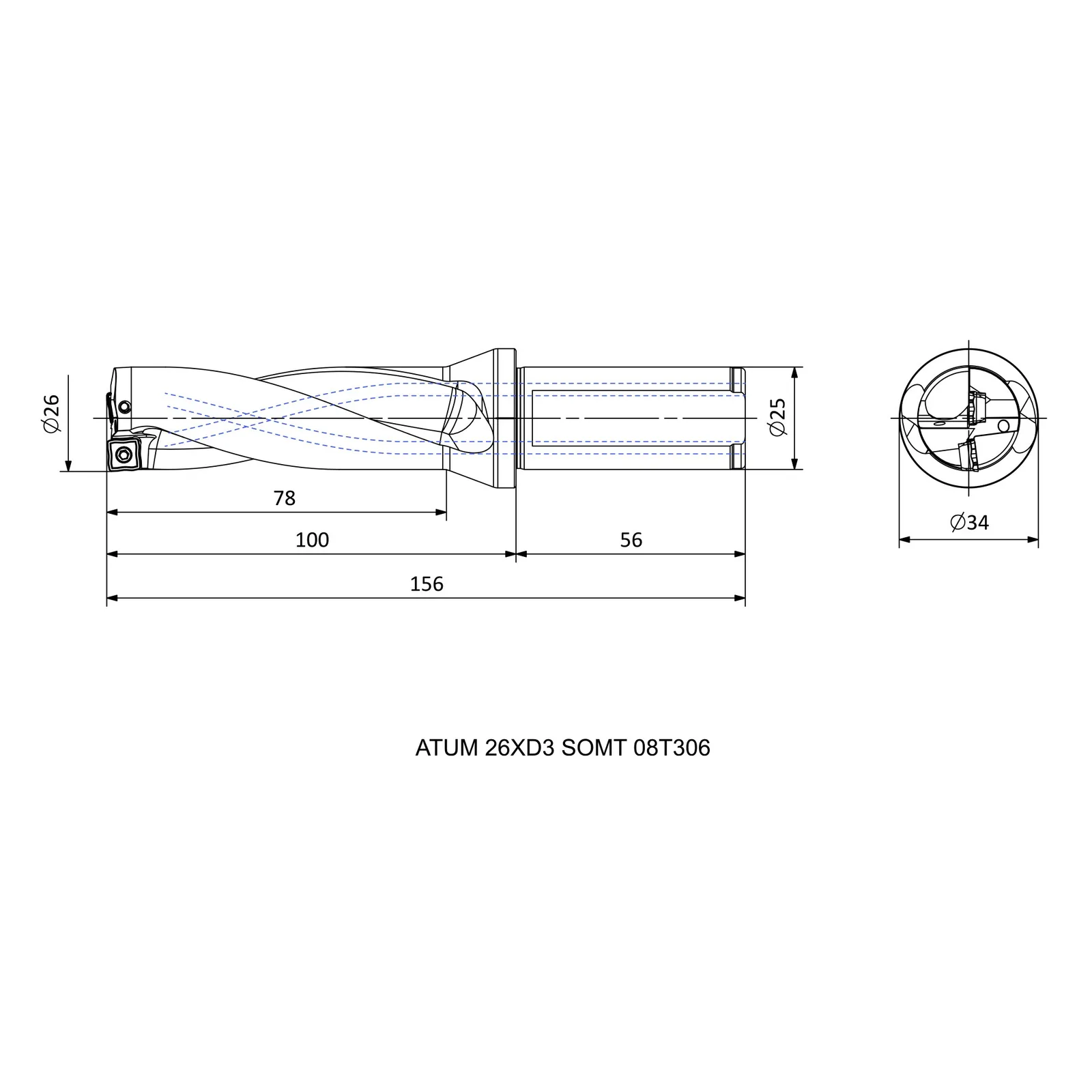

Specifications — ATUM 26XD3 SOMT 08T306

Insert Code	Insert designation	SOMT 08T306
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	26
DCON	Connection diameter (mm)	25
DCSFMS	Contact-face diameter, machine side (mm)	34
OAL	Overall length (mm)	156
LU	Usable length (mm)	78
LPR	Protruding / projection length (mm)	100
LS	Shank length (mm)	56
X max [mm]	Adjustment range, max (mm)	0.3
X min [mm]	Adjustment range, min (mm)	26.6

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
